NOTE:
For additional voltage specifications, see ABS/TCS control unit pin voltage chart. See Fig 1
and Fig 2
. To identify ABS/TCS control unit terminals, see Fig 3
.

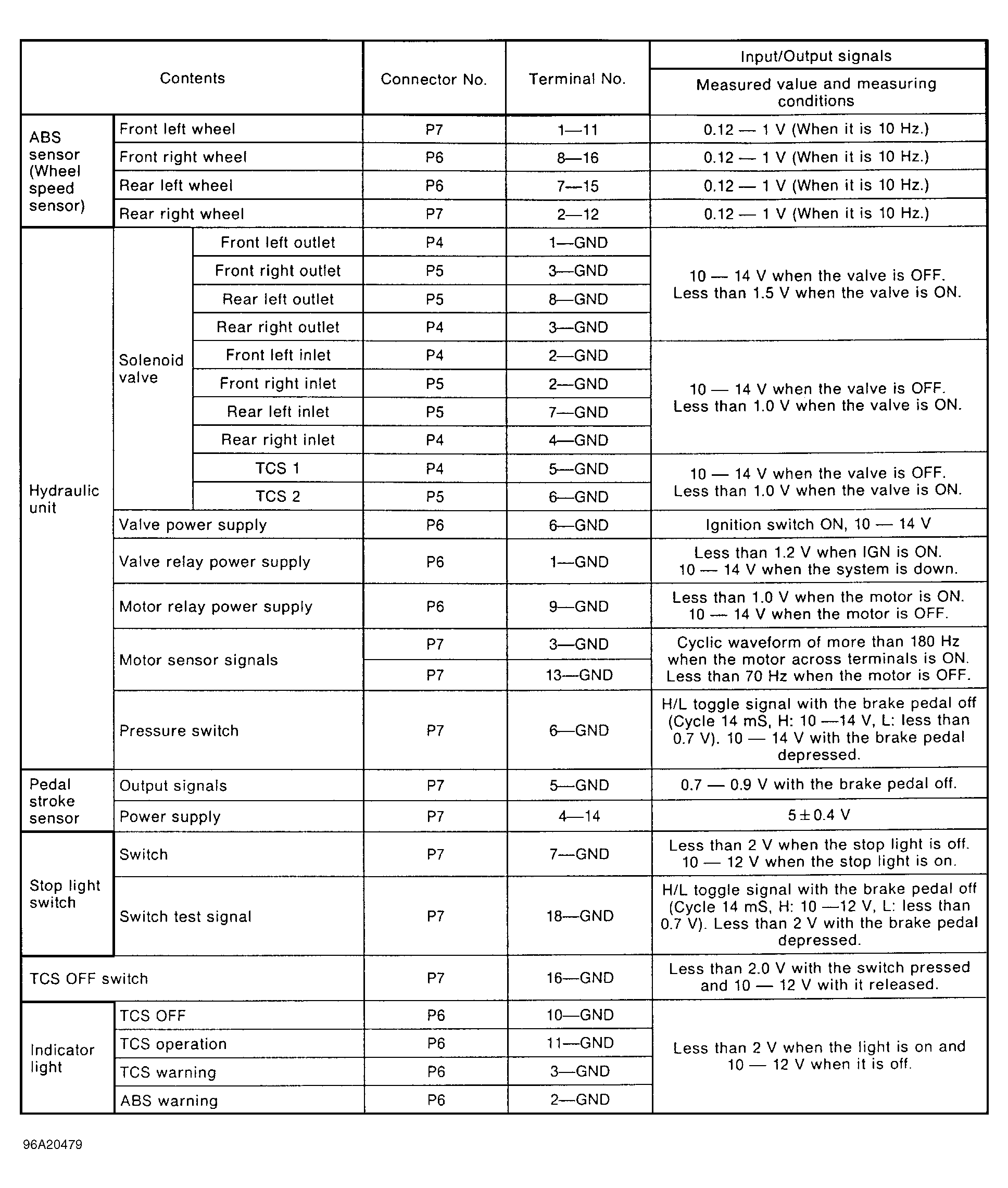

Fig 1: ABS/TCS Control Unit Pin Voltage Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

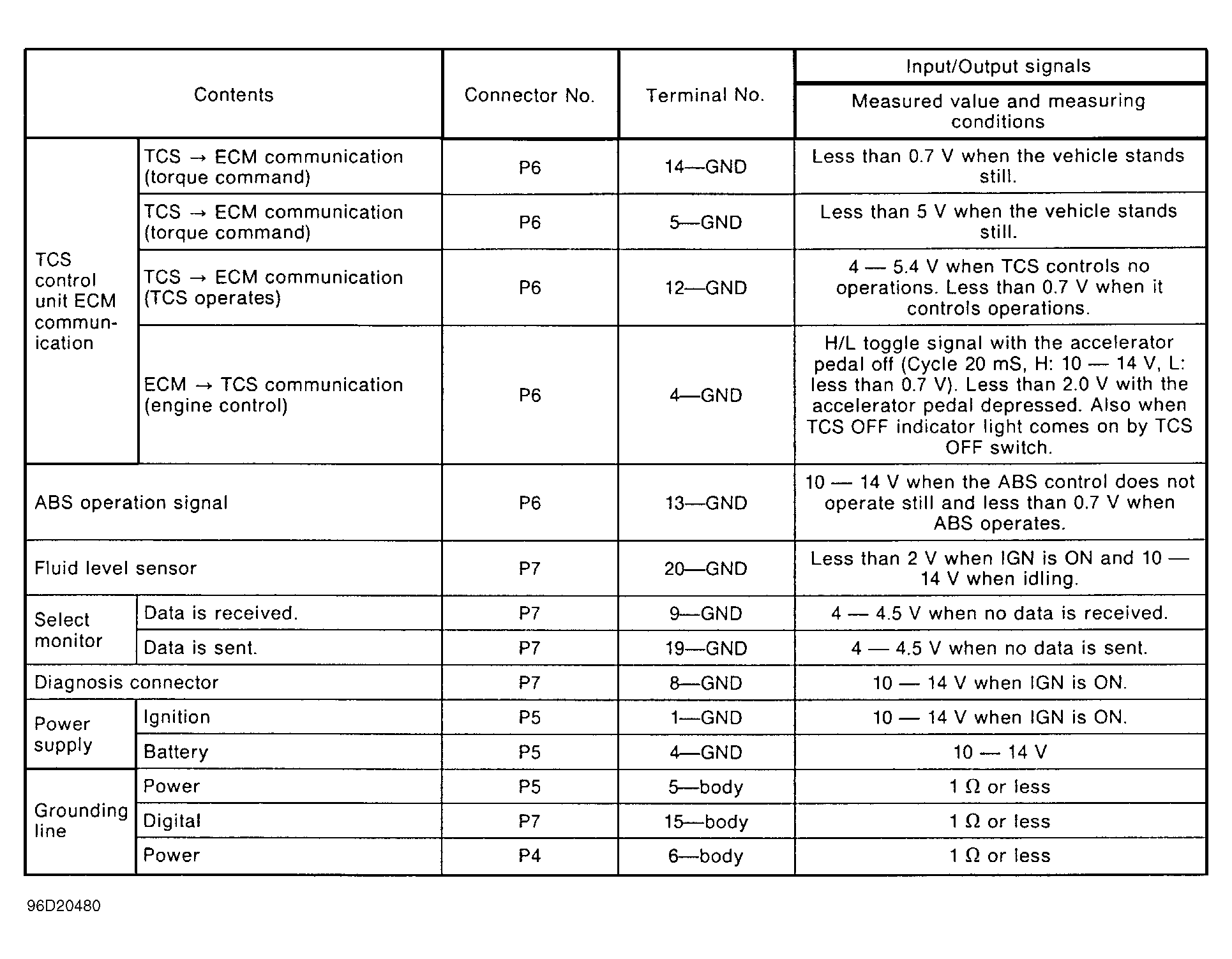

Fig 2: ABS/TCS Control Unit Pin Voltage Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Identifying ABS/TCS Control Unit Harness Connector Terminals
