Solenoid Pull-In Test

Connect jumper wire from negative battery terminal to starter solenoid case. Connect another jumper wire from negative battery terminal to starter solenoid terminal "C". See Fig 1 . Pinion should extend when jumper wire from battery positive terminal is connected to solenoid terminal No. 50. If pinion does not extend as specified, replace starter.

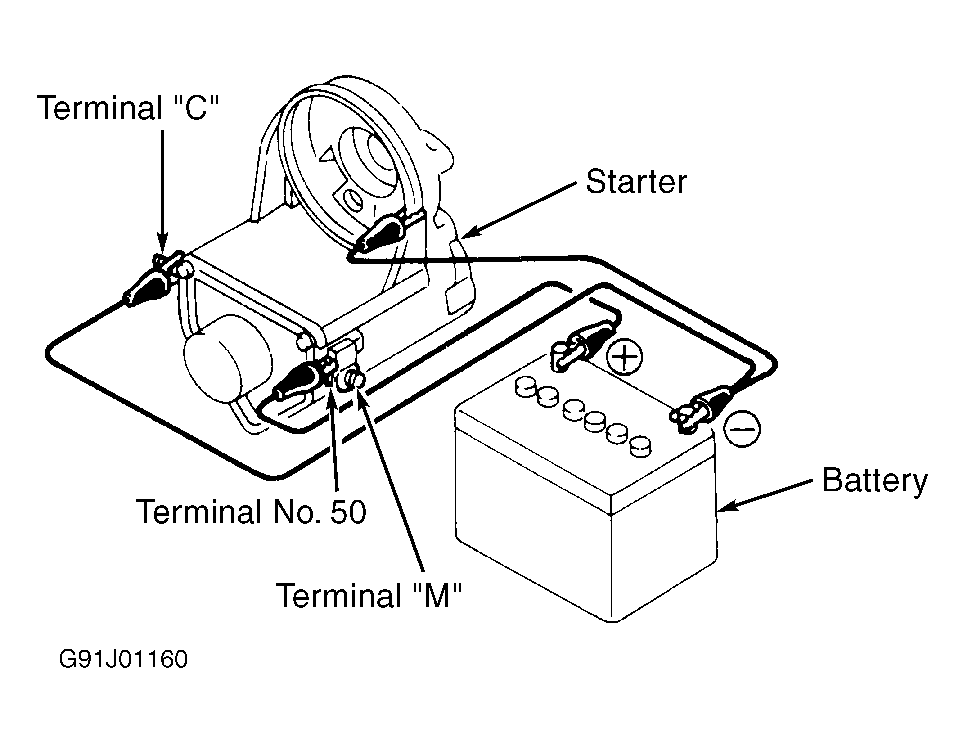

Fig 1: Testing Starter Solenoid Pull-In & Hold-In Windings

Courtesy of SUBARU OF AMERICA, INC.
