Security Control Module I/O Signals

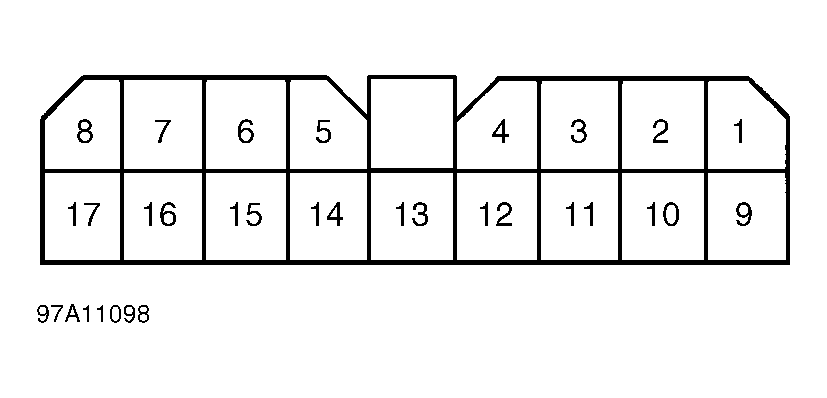

To identify security control module input terminals and function. See SECURITY CONTROL MODULE I/O SIGNALS table. SeeFig 1 .
SECURITY CONTROL MODULE I/O SIGNALS
| Pin No. | Circuit |
|---|---|
| 1 | Passenger's Door Latch |
| 2 | Driver's Door Latch |
| 3 | Security Switch |
| 4 | Trunk Lid Switch |
| 5 | Ignition Switch |
| 6 | Key Switch |
| 7 | Open |
| 8 | Ground |
| 9 | Voltage Supply |
| 10 | Parking Light |
| 11 | LED Positive Voltage |
| 12 | LED Negative Voltage |
| 13 | Starter |
| 14 | Door Lock Actuator (Unlock) |
| 15 | Door lock Actuator (Lock) |
| 16 | Horn |
| 17 | Open |
