Power Mirror Switch

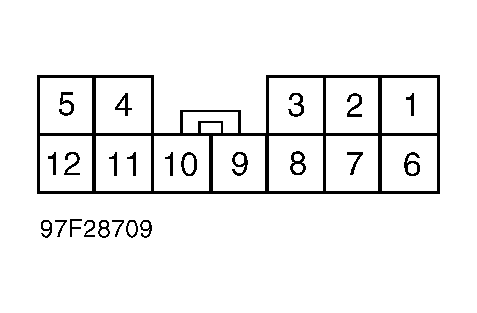

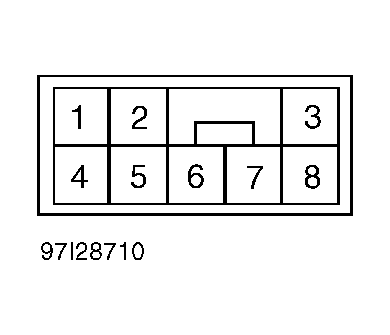

Pry mirror switch from instrument panel using a small screwdriver. Disconnect switch connector. Check continuity between specified terminals of switch connector with switch button in specified position. See POWER MIRROR SWITCH CONTINUITY TEST . See Fig 1 , Figure or Figure . Replace switch if continuity is not as specified.
POWER MIRROR SWITCH CONTINUITY TEST
| Switch Position | Wire Color | Terminal No. | |
|---|---|---|---|
| Left Mirror | |||
| Up | BLK & RED | 4 & 10 | |
| Up | BLU/WHT & BLK/RED | 11 & 1 | |
| Down | BLK & BLK/RED | 4 & 1 | |
| Down | BLU/WHT & RED | 11 & 10 | |
| Left | BLK & RED | 4 & 10 | |
| Left | BLU/WHT & LT GRN/RED | 11 & 6 | |
| Right | BLU/WHT & RED | 11 & 10 | |
| Right | BLK & LT GRN/RED | 4 & 6 | |
| Right Mirror | |||
| Up | BLK & RED | 4 & 10 | |
| Up | BLU/WHT & RED/BLU | 11 & 9 | |
| Down | BLK & RED/BLU | 4 & 9 | |
| Down | BLU/WHT & RED | 11 & 10 | |
| Left | BLK & RED | 4 & 10 | |
| Left | BLU/WHT & BRN/RED | 11 & 8 | |
| Right | BLK & BRN/RED | 4 & 8 | |
| Right | BLU/WHT & RED | 11 & 10 | |
