Engine Controls - Pin Voltage Charts: Testing

ECM circuits are checked at ECM connectors. See Fig 1 -Fig 2 . Testing may be performed with ignition off, with ignition on and engine off, and/or with ignition on and engine running. Test between indicated terminal and good body ground. See Fig 3 -Fig 14 . When testing pin voltage, carefully backprobe terminal at harness side of ECM connector.
If voltage is not as specified, test, repair or replace circuit or affected component. Retest circuit to verify repair has been made. Unless stated otherwise, perform all tests with ECM harness connected.

Fig 1: Identifying ECM Connector Terminals (Forester, Impreza 2.2L, Impreza 2.5L, Legacy 2.2L & Outback Sport 2.2L)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying ECM Connector Terminals (Legacy 2.5L & Outback 2.5L)

Courtesy of SUBARU OF AMERICA, INC.

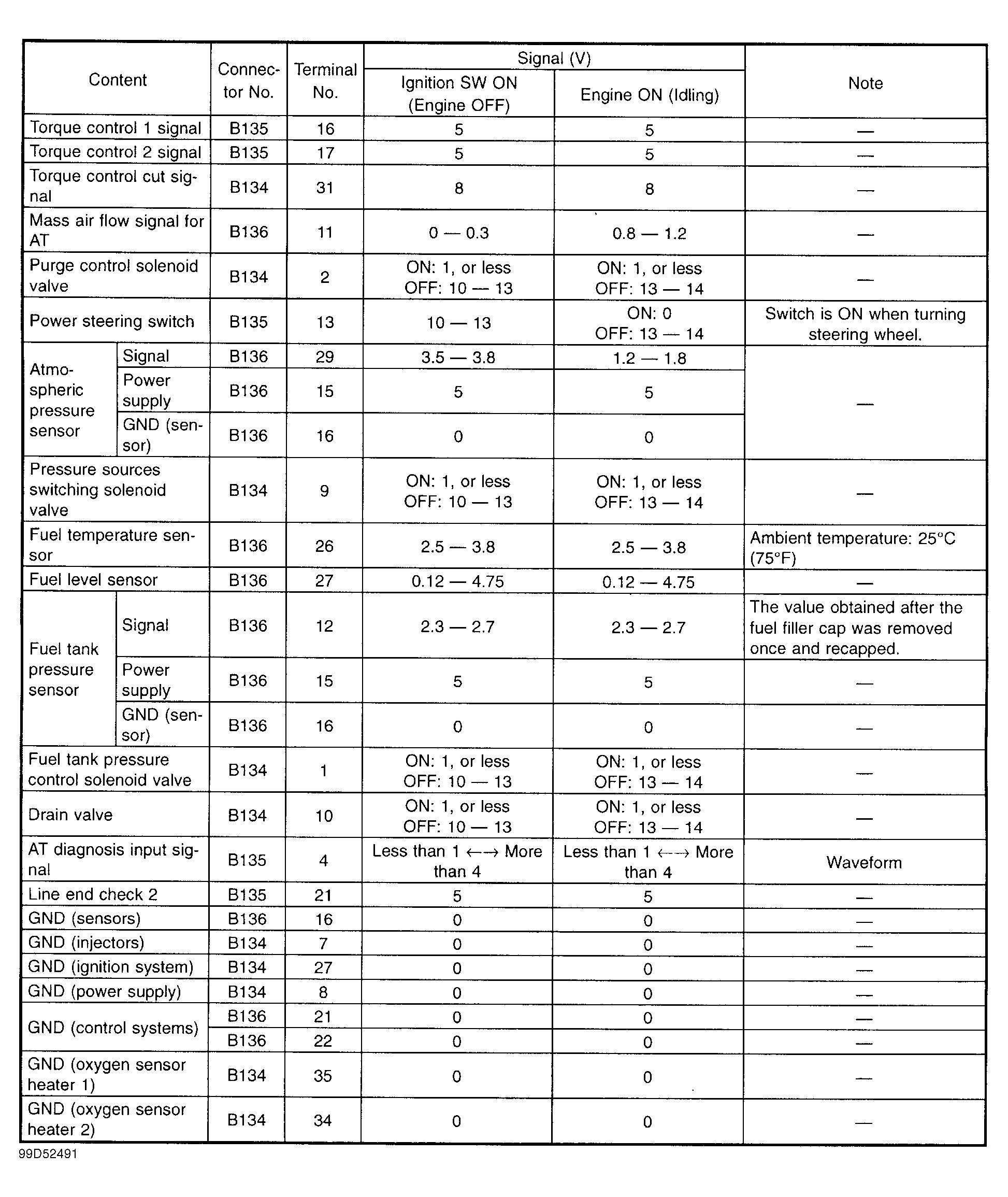

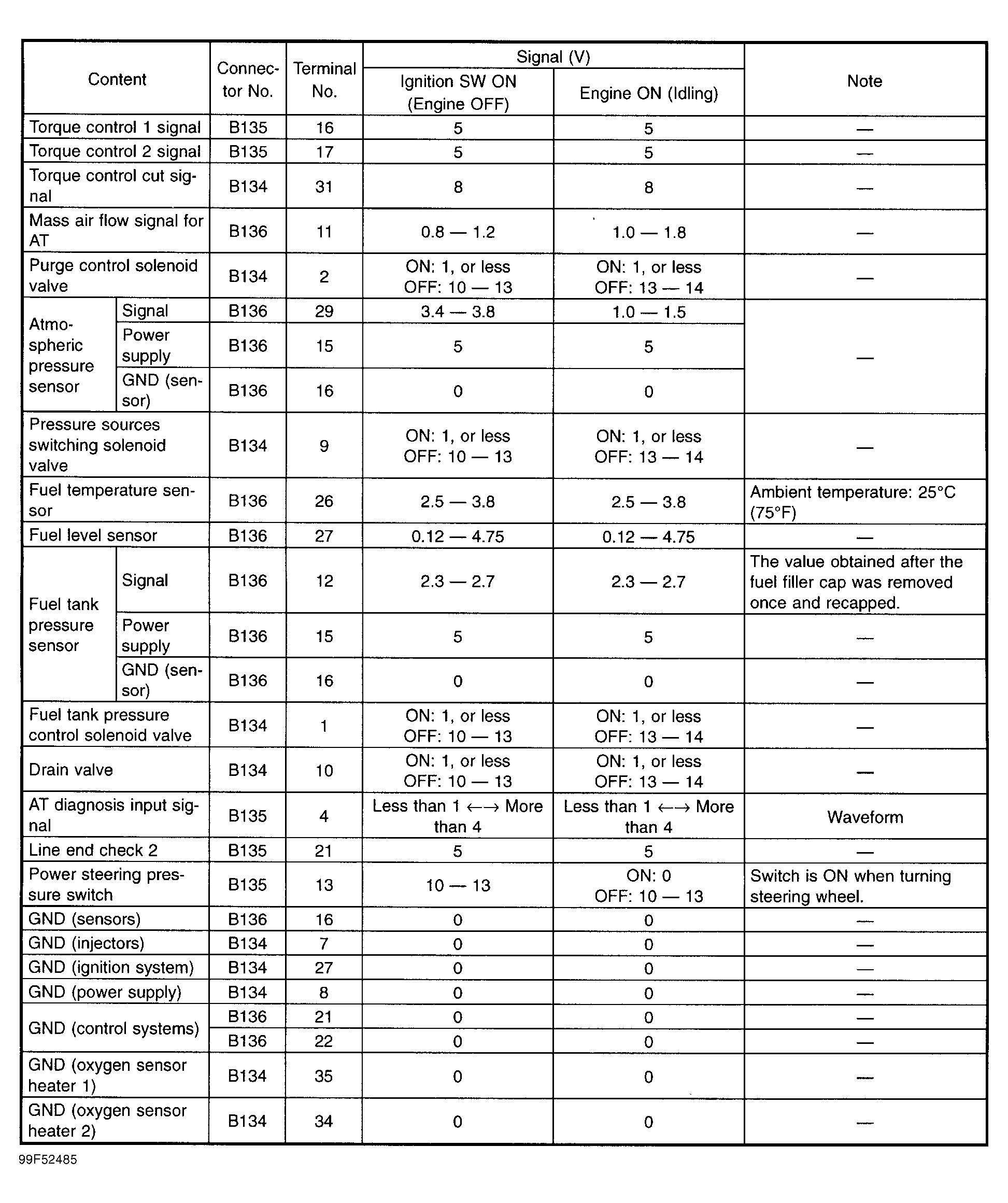

Fig 3: Identifying ECM Connector Terminals, Circuits & Voltage (Forester - 1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

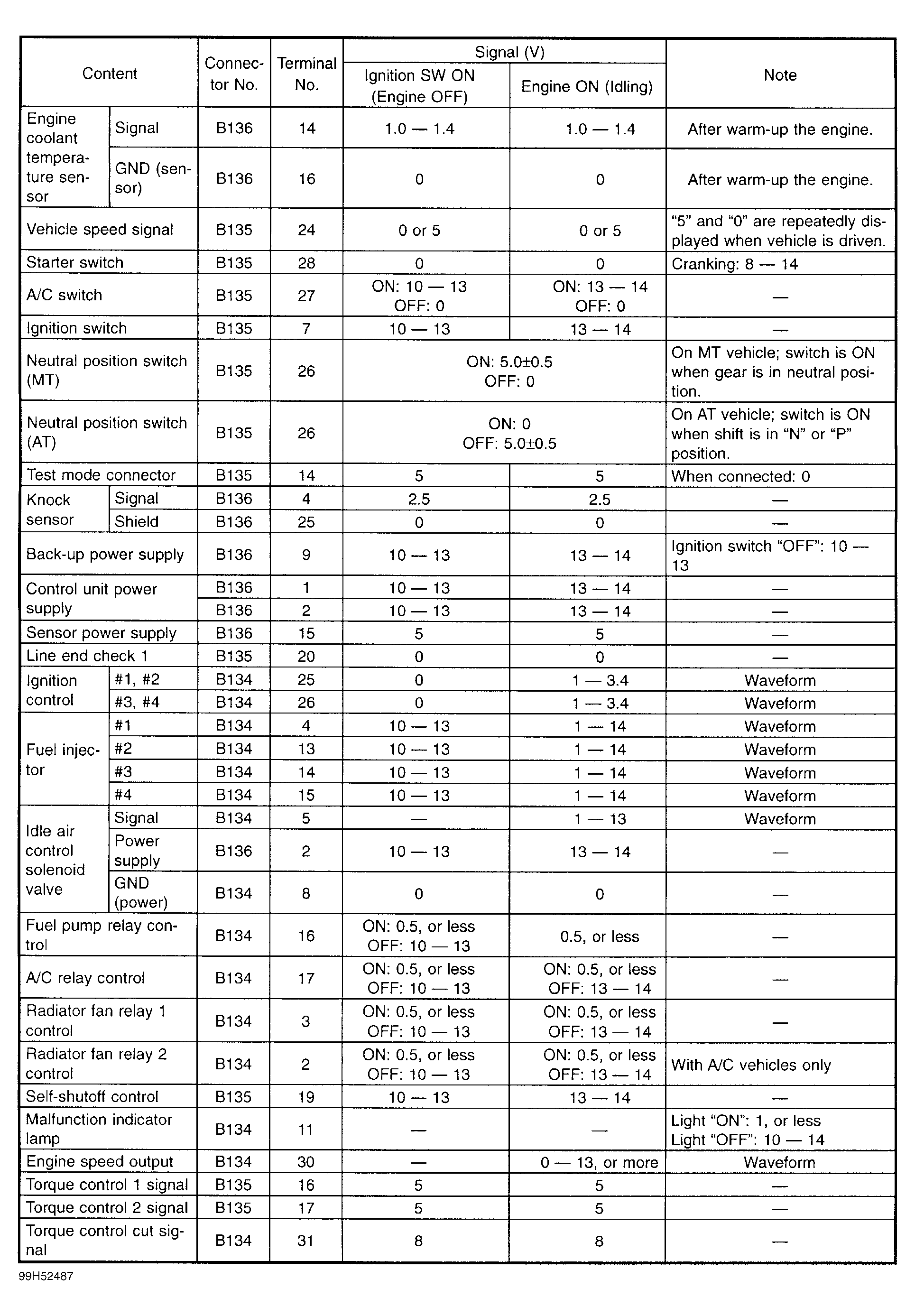

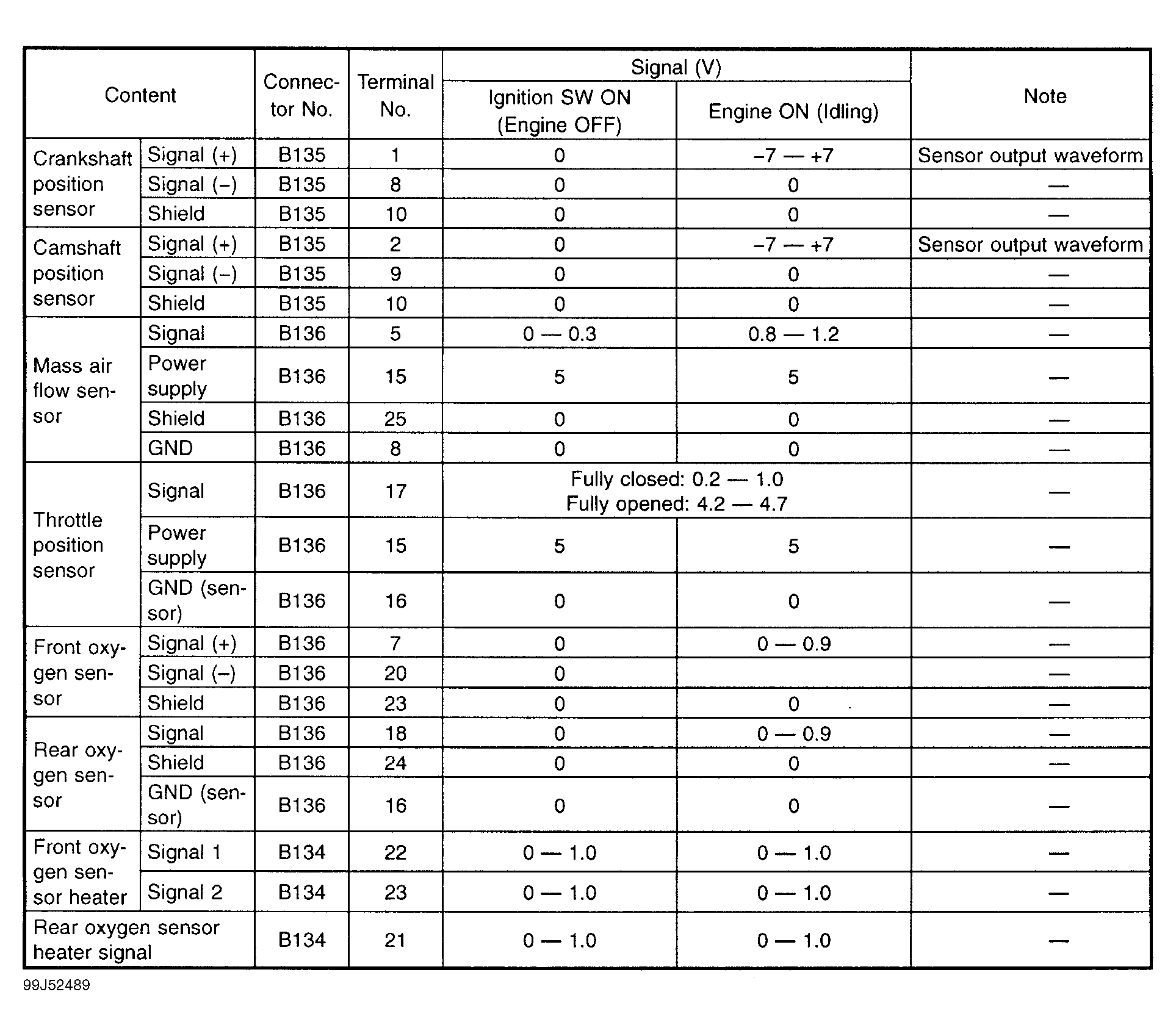

Fig 4: Identifying ECM Connector Terminals, Circuits & Voltage (Forester - 2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

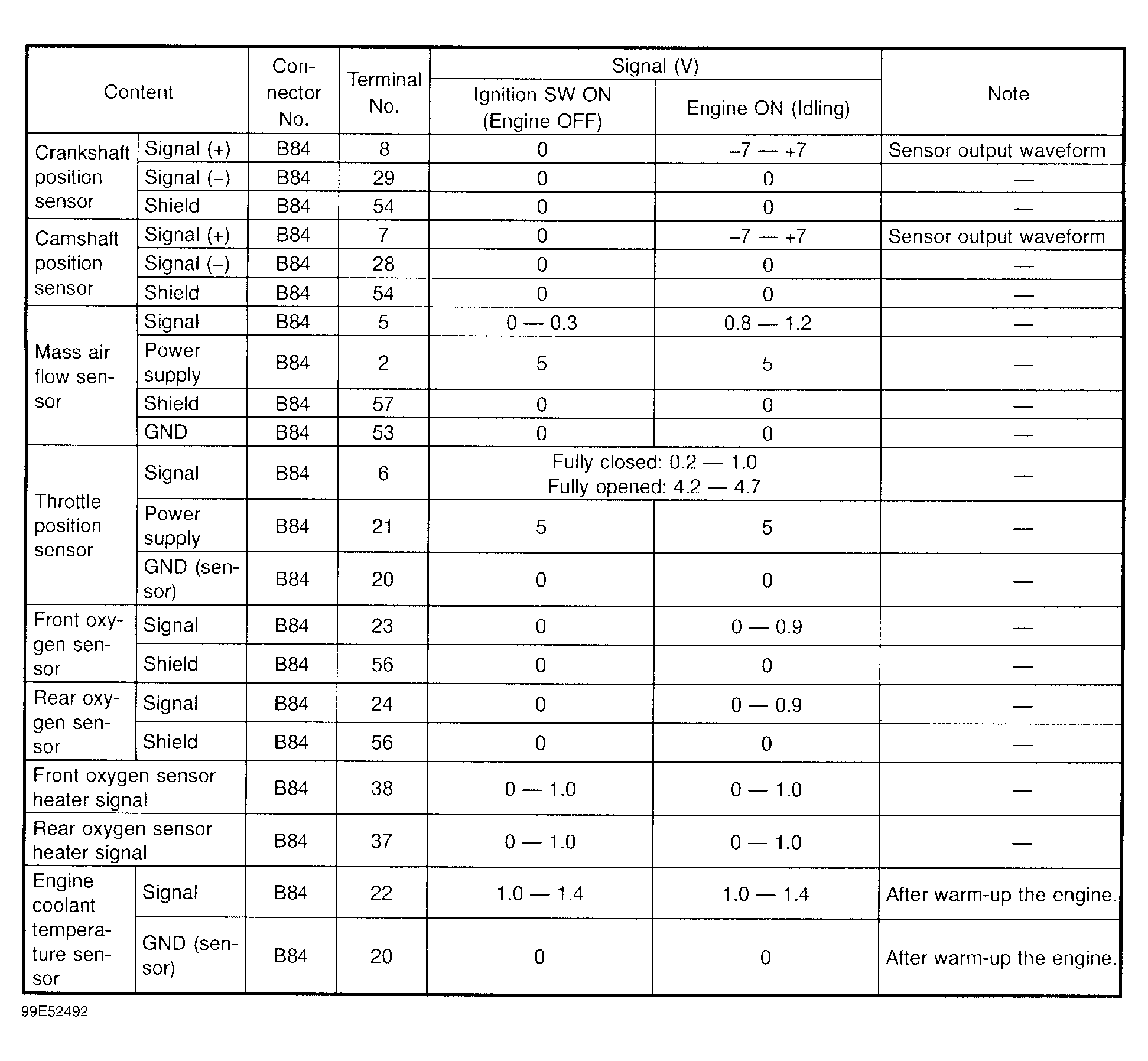

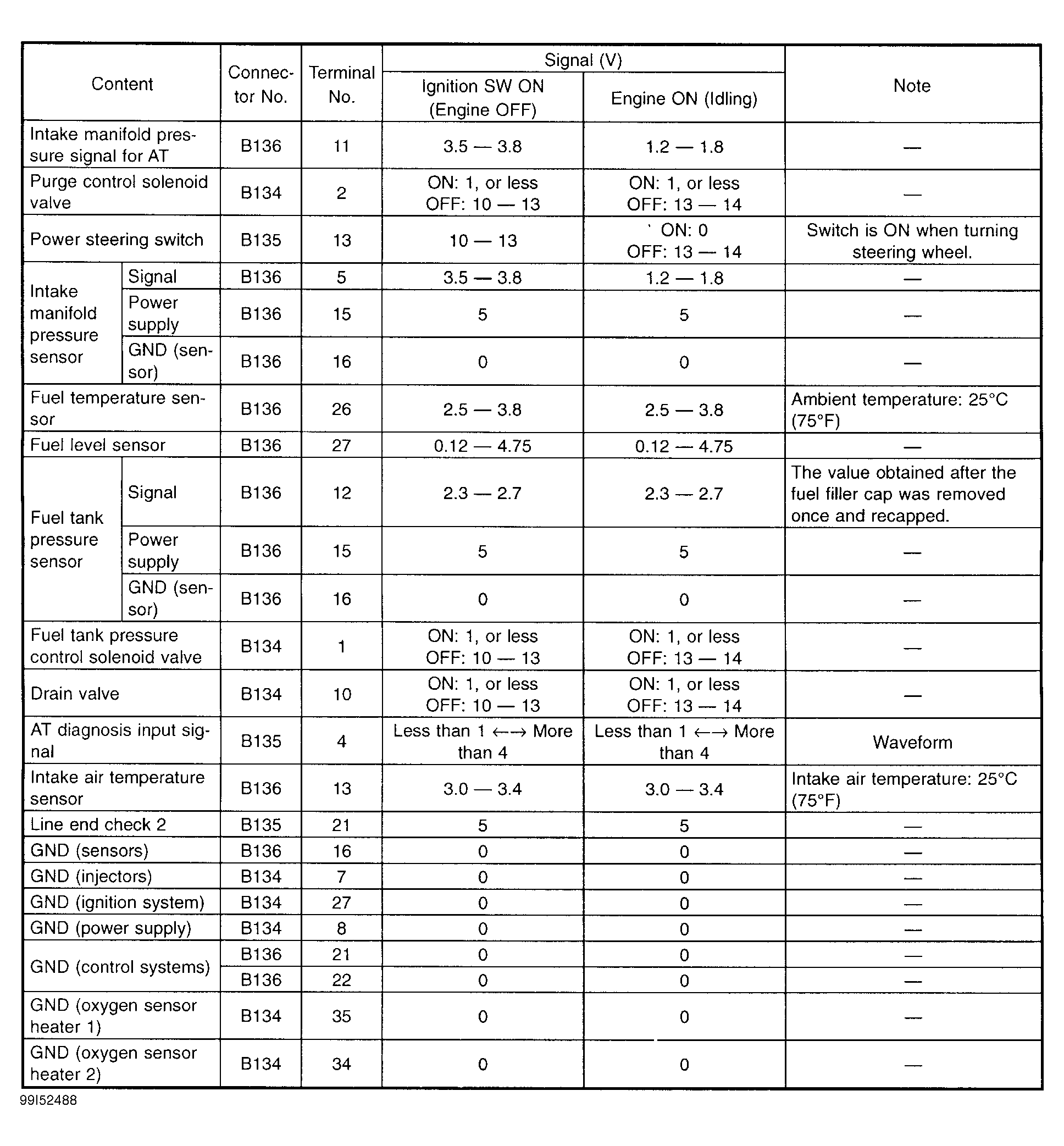

Fig 5: Identifying ECM Connector Terminals, Circuits & Voltage (Forester - 3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

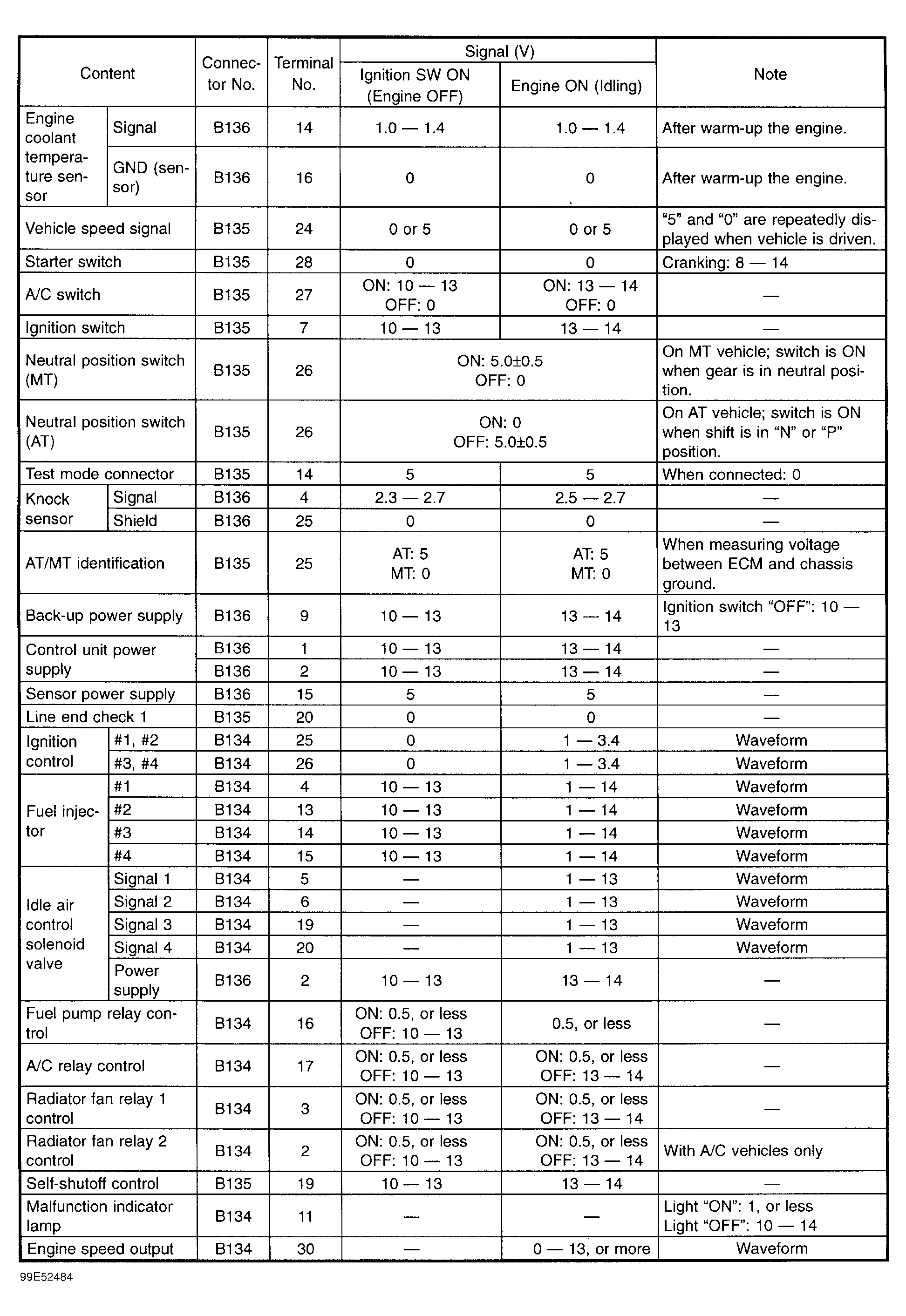

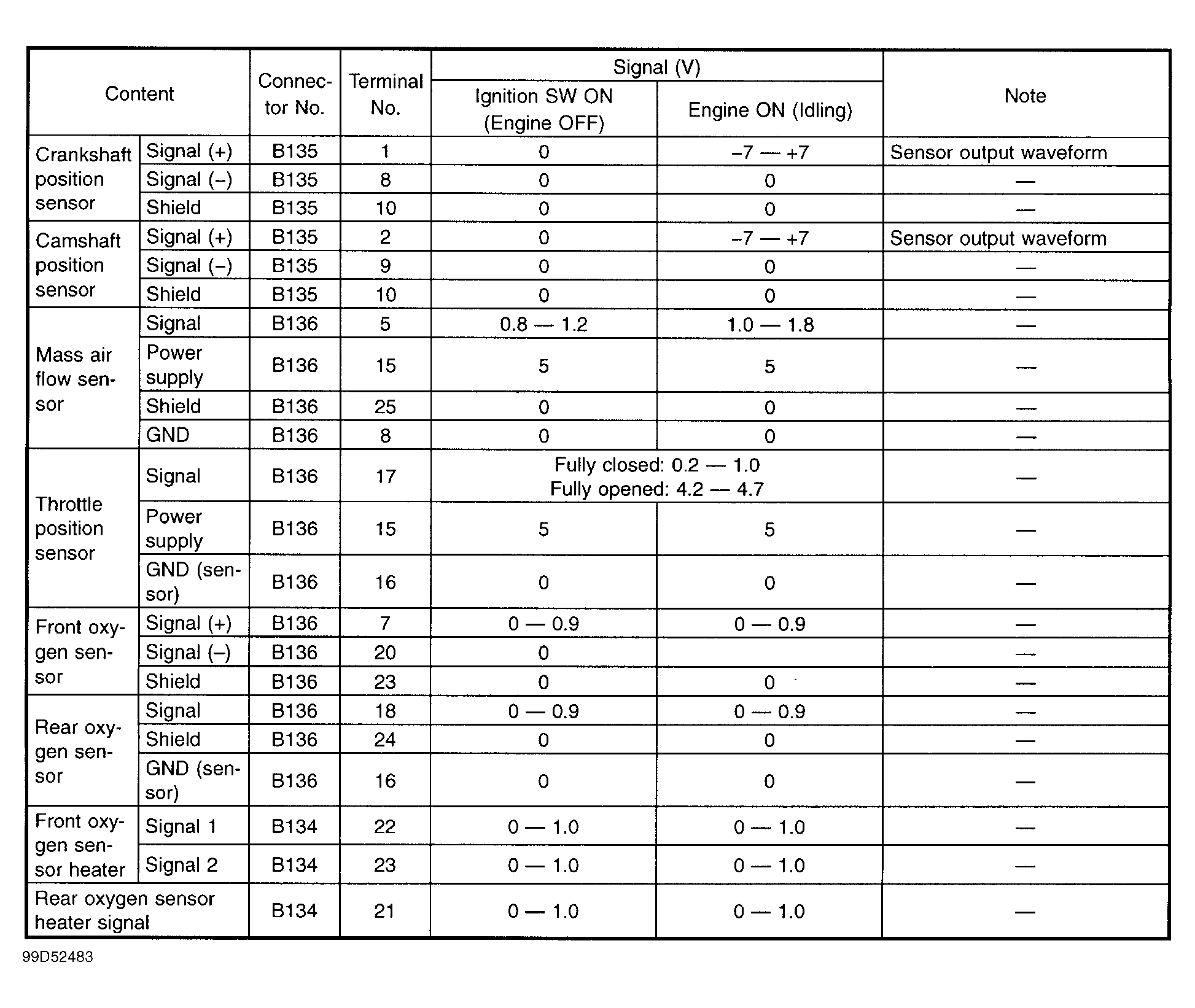

Fig 6: Identifying ECM Connector Terminals (Impreza, Outback Sport & Legacy 2.2L - California Emissions - 1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

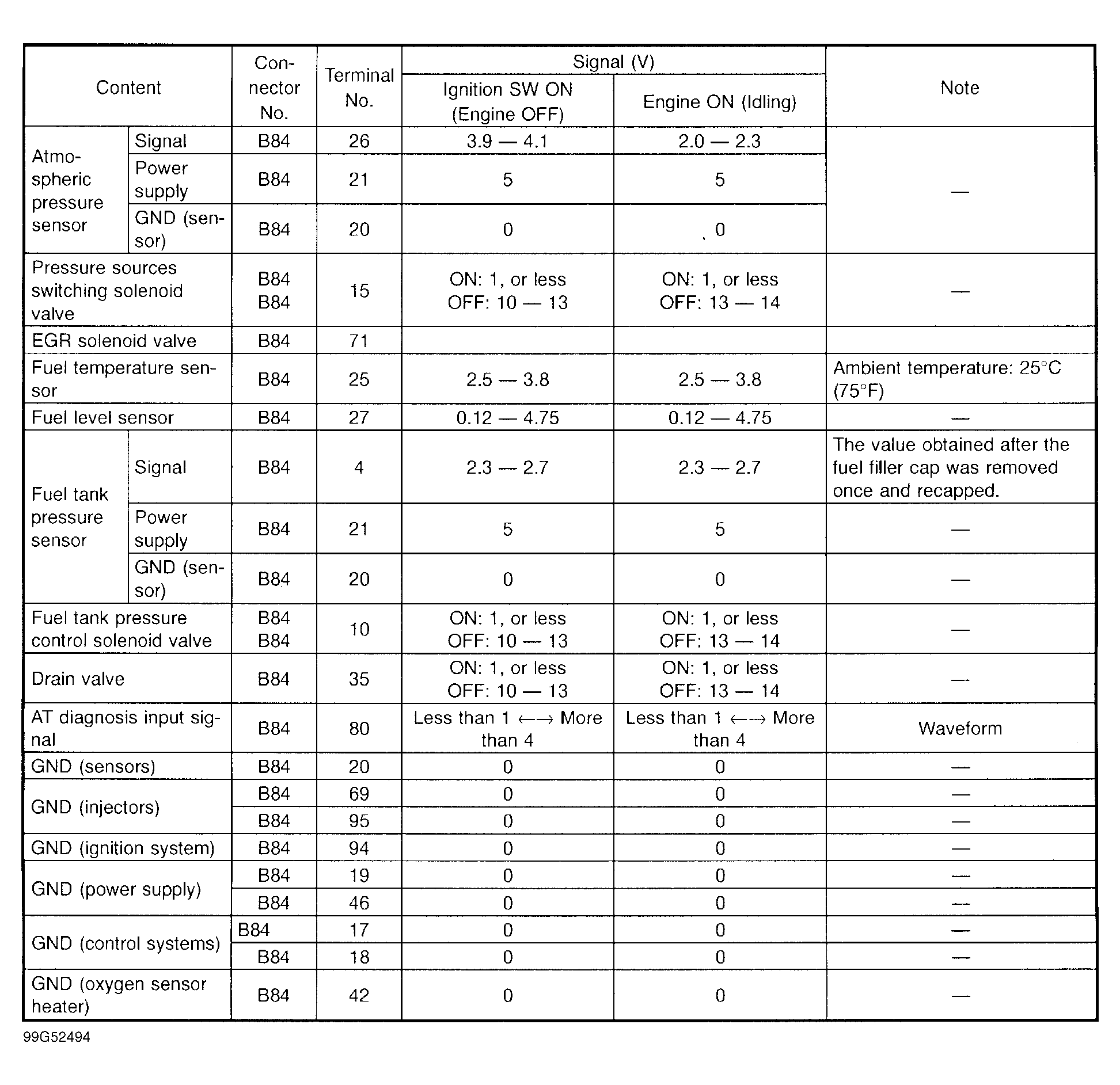

Fig 7: Identifying ECM Connector Terminals (Impreza, Outback Sport & Legacy 2.2L - California Emissions - 2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

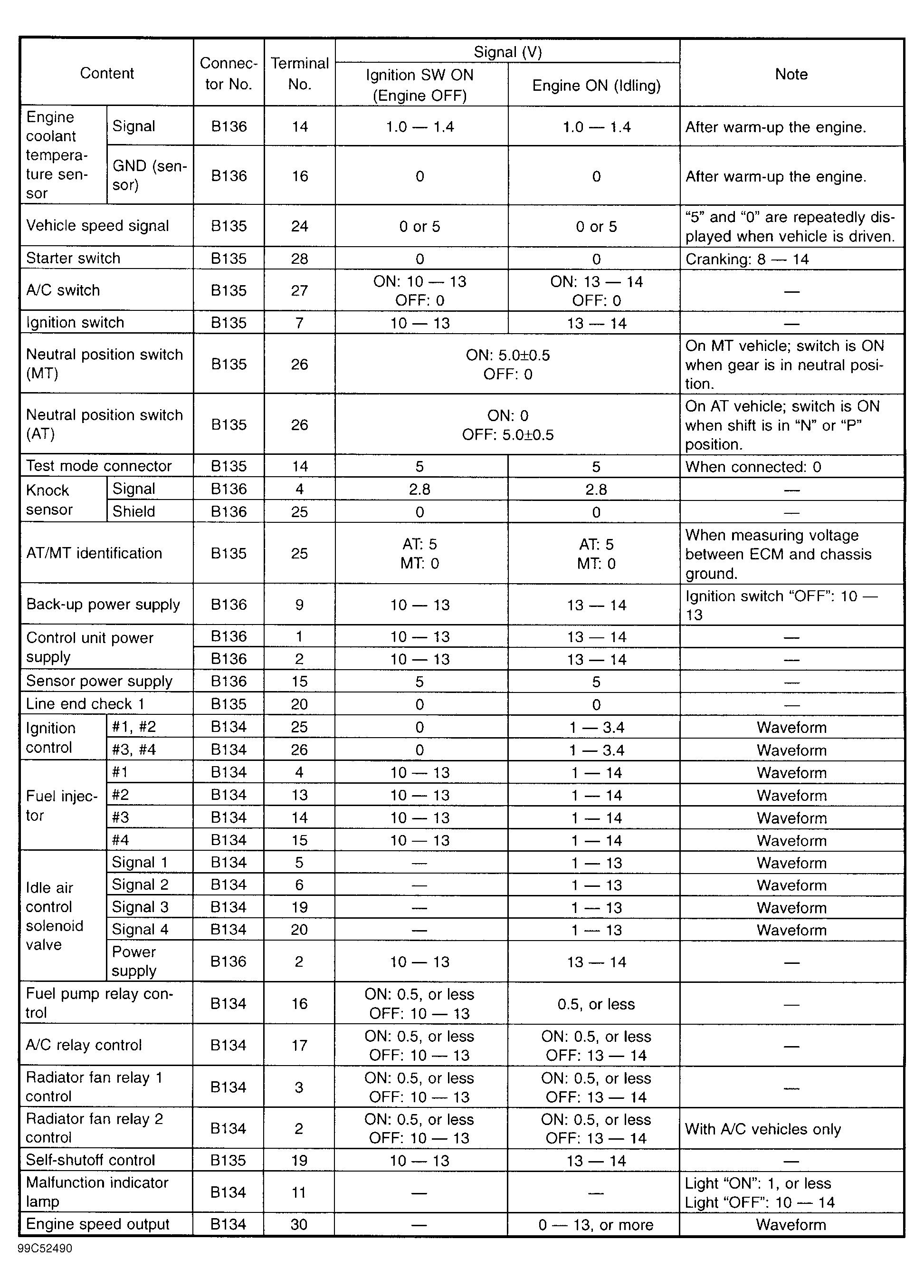

Fig 8: Identifying ECM Connector Terminals (Impreza, Outback Sport & Legacy 2.2L - California Emissions - 3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

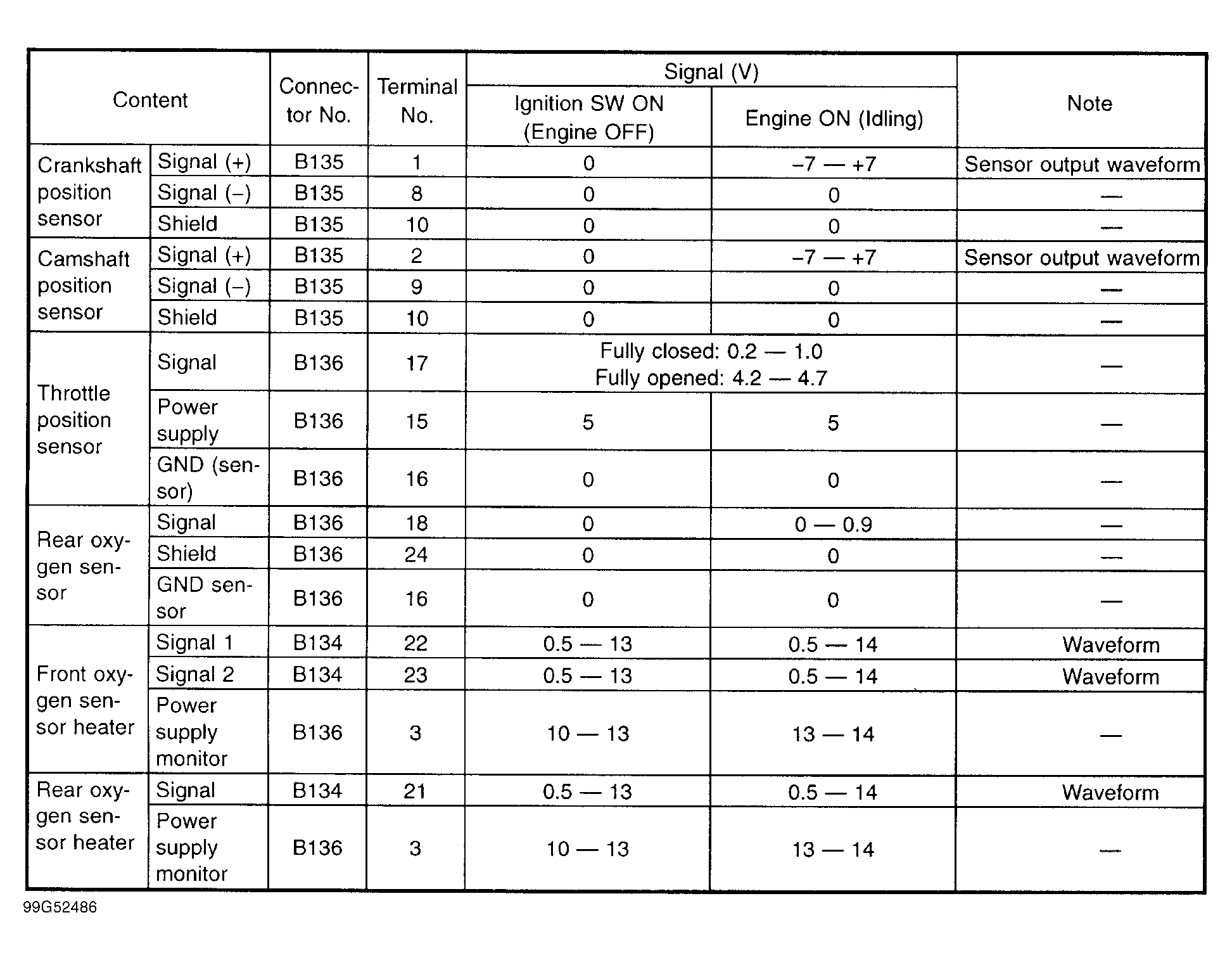

Fig 9: Identifying ECM Connector Terminals (Impreza, Outback Sport & Legacy 2.2L - Federal Emissions & Impreza 2.5L - 1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

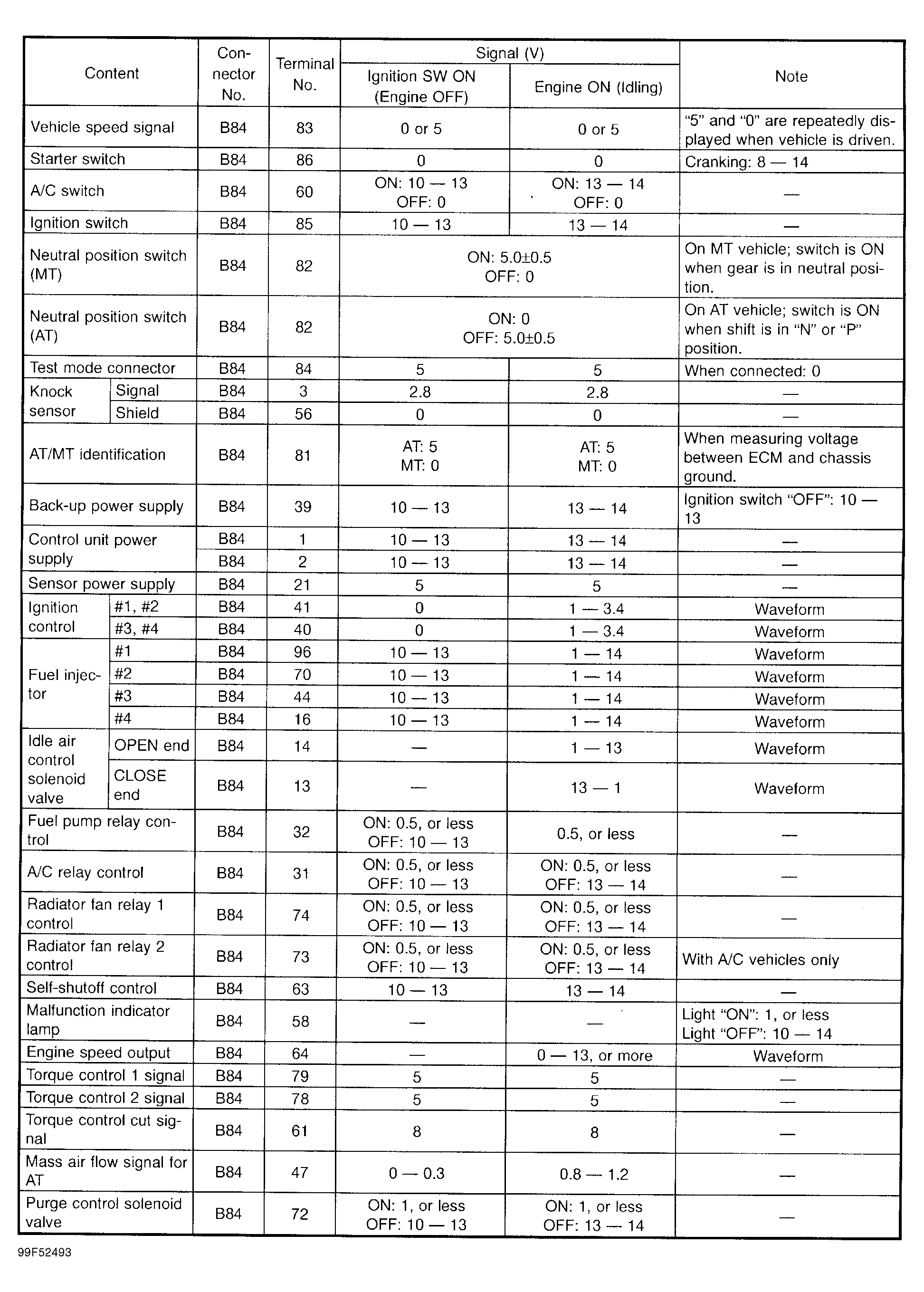

Fig 10: Identifying ECM Connector Terminals (Impreza, Outback Sport & Legacy 2.2L - Federal Emissions & Impreza 2.5L - 2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying ECM Connector Terminals (Impreza, Outback Sport & Legacy 2.2L - Federal Emissions & Impreza 2.5L - 3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying ECM Connector Terminals (Legacy 2.5L & Outback 2.5L - 1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying ECM Connector Terminals (Legacy 2.5L & Outback 2.5L - 2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Identifying ECM Connector Terminals (Legacy 2.5L & Outback 2.5L - 3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
