Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

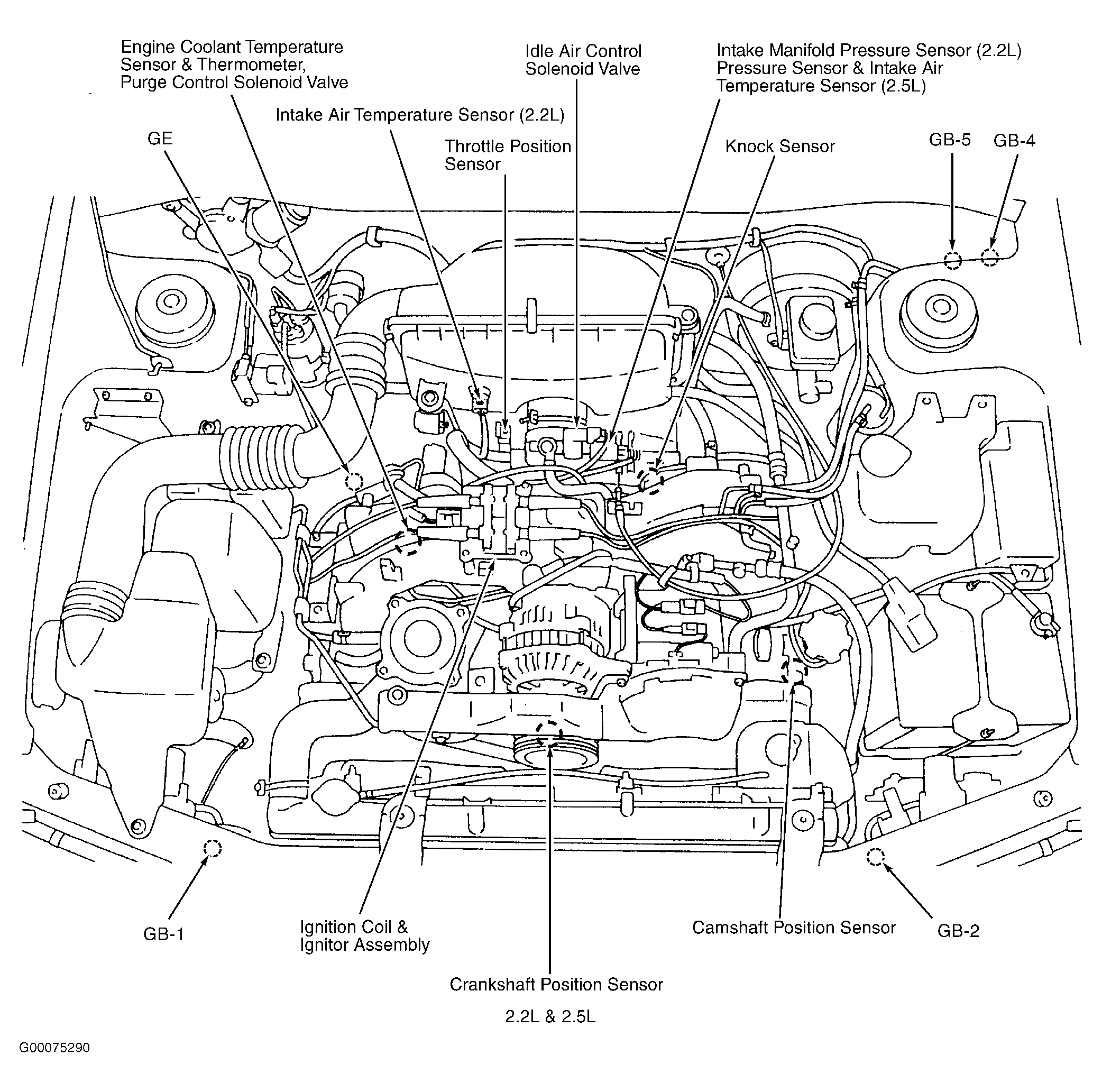

Fig 1: Engine Compartment (2.2L & 2.5L)

G00075290

Fig 2: Vehicle Overview

G00075291
