Interrupt Relay

  1. Turn ignition off. Remove interrupt relay, located near cruise control module. Check for continuity between interrupt relay terminals No. 1 and 4. See Fig 1 . If continuity exists, go to next step. If continuity does not exist, replace relay.
  2. Check for continuity between interrupt relay terminals No. 2 and 6. If continuity exists, go to next step. If continuity does not exist, replace relay.
  3. Connect battery voltage to interrupt relay terminal No. 4 and connect ground to relay terminal No. 1. Check for continuity between relay terminals No. 2 and 6. Continuity should not exist. If continuity exists, replace relay.

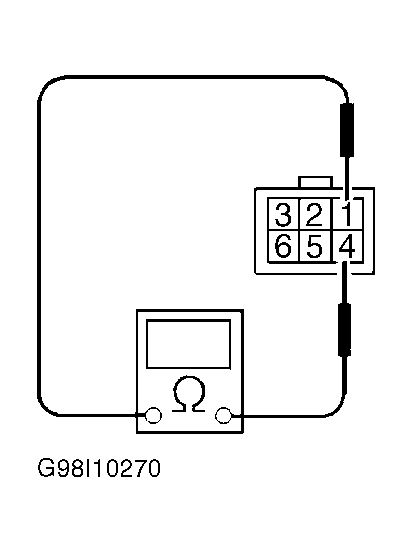

Fig 1: Identifying Interrupt Relay, Main Fuse Box Connector & Security Horn Relay Terminals
G98I10270Courtesy of SUBARU OF AMERICA, INC.
