Under-Dash Fuse/Relay Box: Notes

Under-dash fuse/relay box is located under the instrument panel behind the fuse box cover on driver's side, see illustration below.

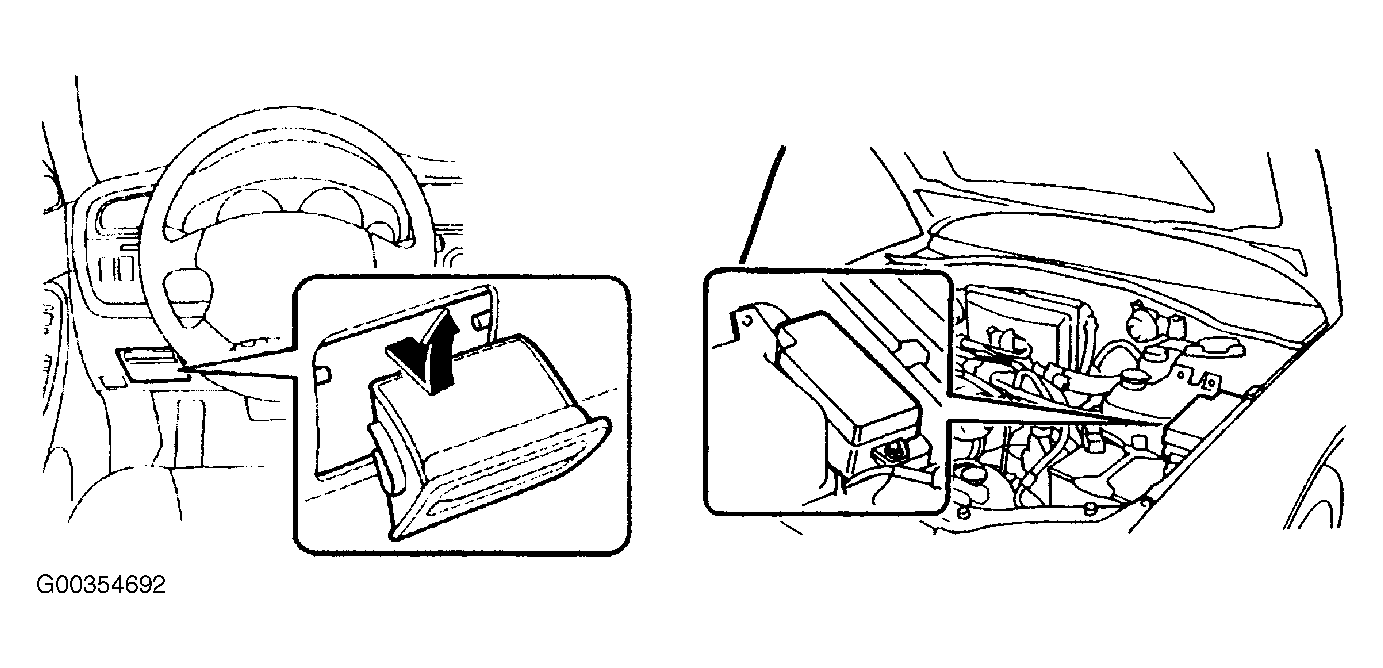

Fig 1: Locating Under-Dash Fuse/Relay Boxes
G00354692Courtesy of SUBARU OF AMERICA, INC.
