Compressor Clutch

WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Compressor clutch trouble is often caused by clutch slippage and noise. Check and take corrective measures, as required.
  1. Remove belt cover.

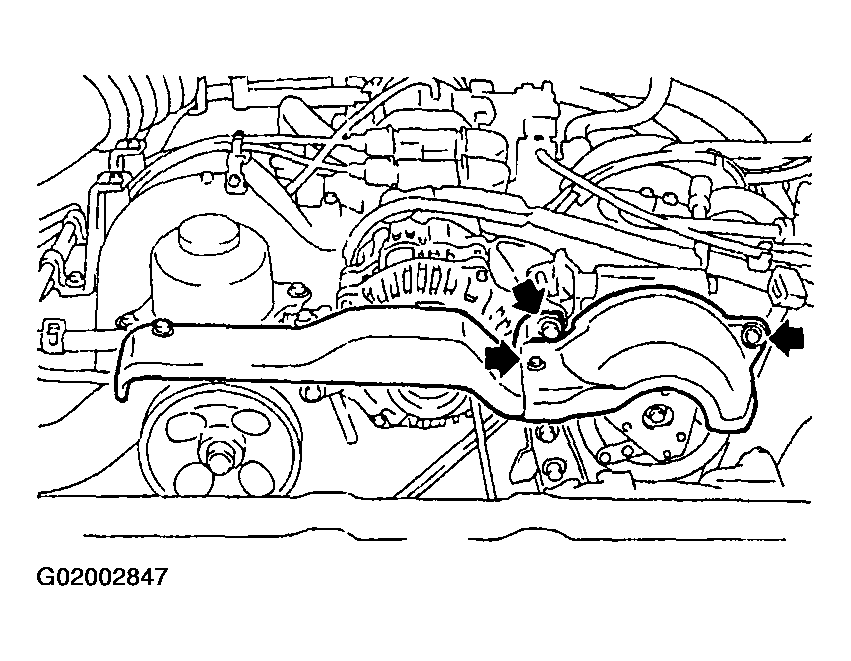

    Fig 1: Removing Belt Cover
    G02002847
  2. Check the clearance between drive plate and pulley over the entire perimeter is within specifications.

    Clearance:  0.45+/-0.15 mm (0.0177+/-0.0059 in)

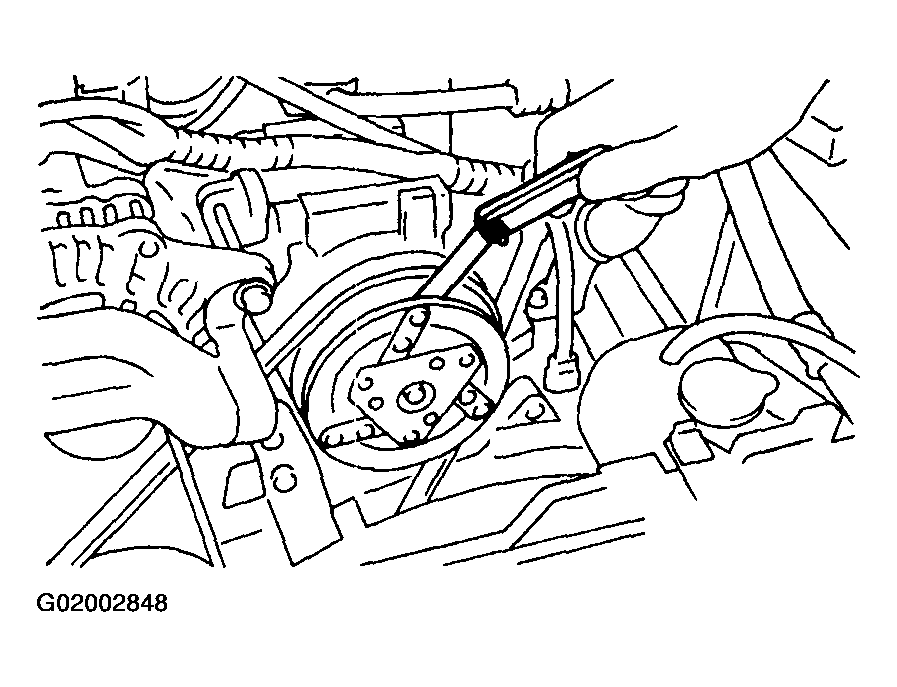

    Fig 2: Checking Compressor Clutch Clearance Between Drive Plate & Pulley
    G02002848
  3. Check that voltage applied to magnetic coil is at least 10.5 volts.
  4. When noise is noted, check that it originates in either compressor or pulley bearing.
