Service Procedure: Compressor: Installation

WARNING: This page is about a different car, the 2001 Subaru Forester and 2000 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install compressor:
Install compressor on bracket.

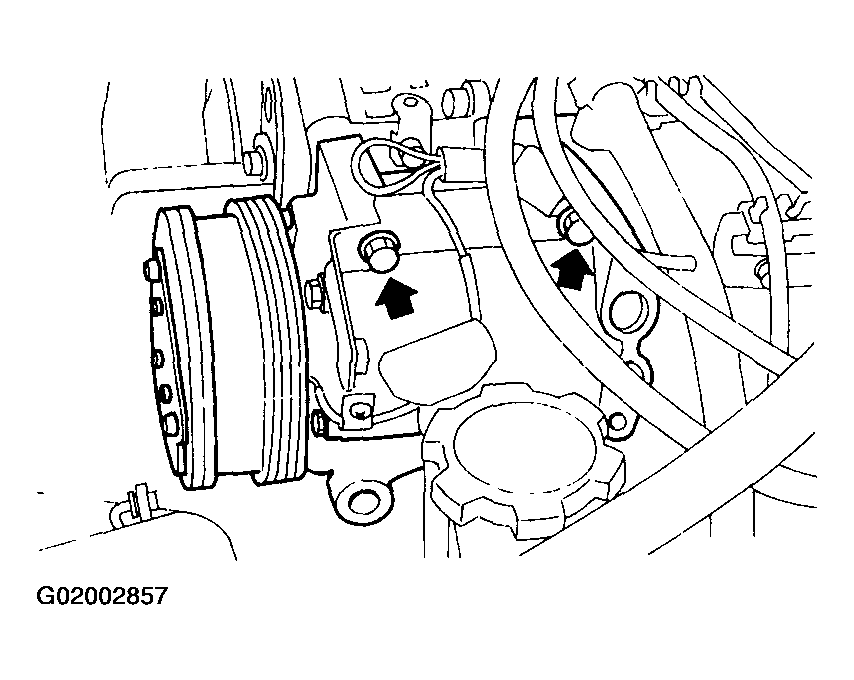

Fig 1: Installing Compressor
Install lower bracket.

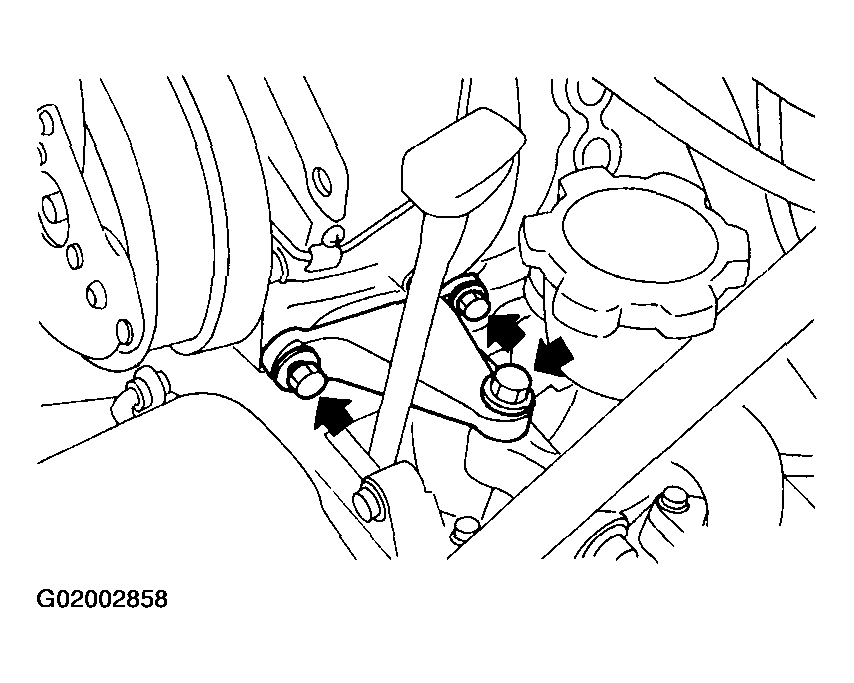

Fig 2: Installing Lower Bracket
Connect compressor harness.
Connect generator harness.
Install compressor V-belt (Rear):
After adjusting belt tension, tighten tension pulley lock nut (A) securely.

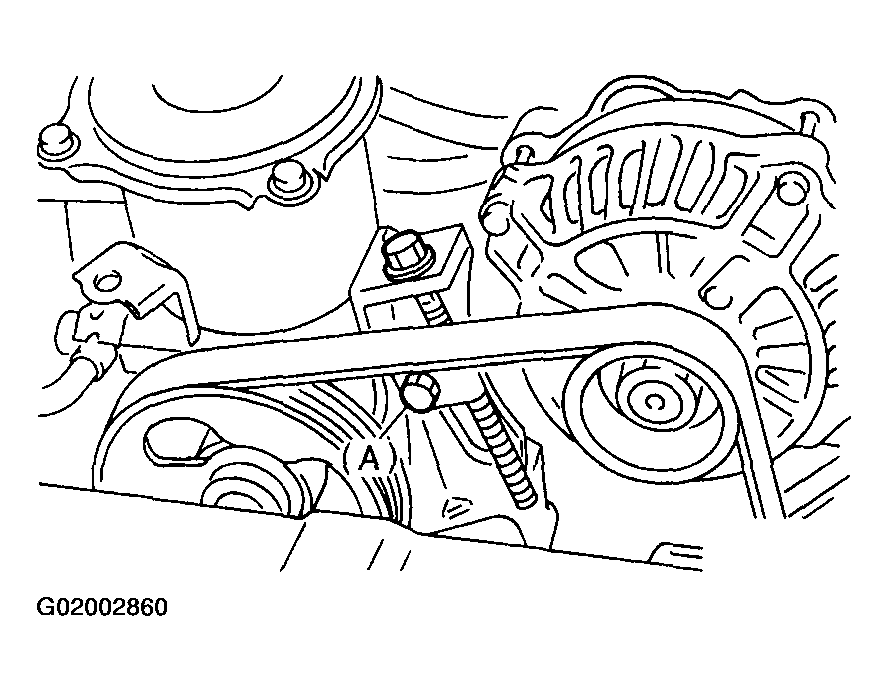

Fig 3: Identifying Tension Pulley Lock Nut (A)
Install generator V-belt:
After adjusting V-belt tension, tighten generator bracket lock bolt (A) securely.

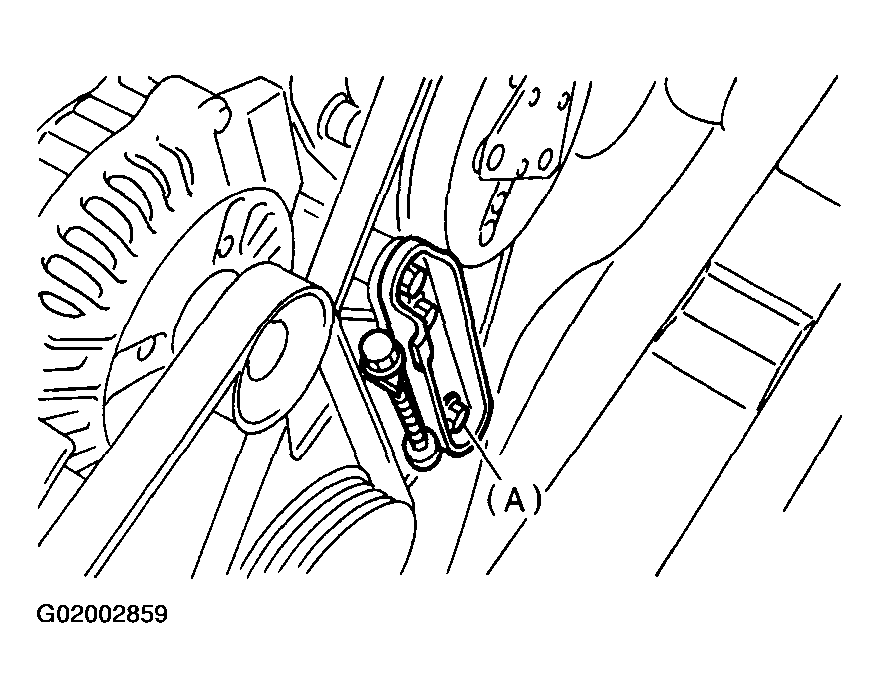

Fig 4: Identifying Generator Bracket Lock Bolt (A)
Check drive belt tension and adjust it if necessary by changing generator position and/or idler pulley position.
CAUTION:
- Ensure that the V-belt is aligned correctly. If it is not, check for loose bolts.
- The V-belt should not be too tight or too loose.
  A belt which is too tight may break bearing or cause gas to leak from the shaft seal. A belt which is too loose slips, thereby causing the belt cut.
- After completing the compressor installation and testing the system operation, check and adjust the tension of both V-belts again.

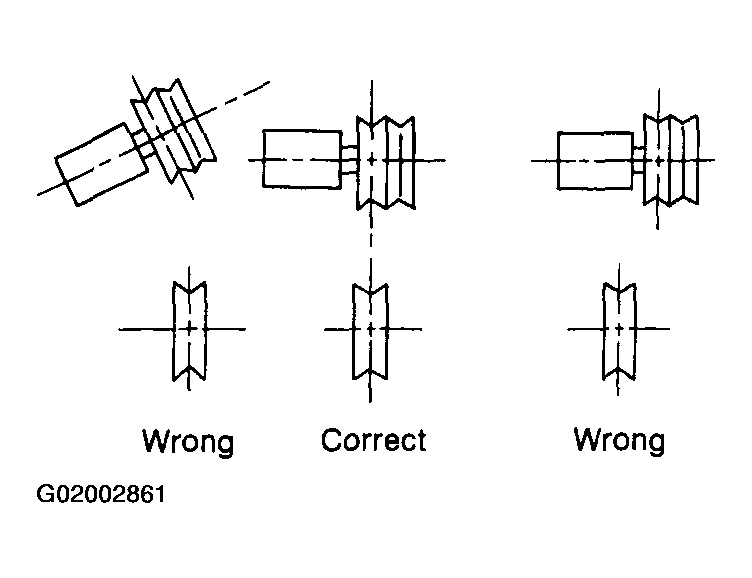

Fig 5: Checking V-Belt Alignment

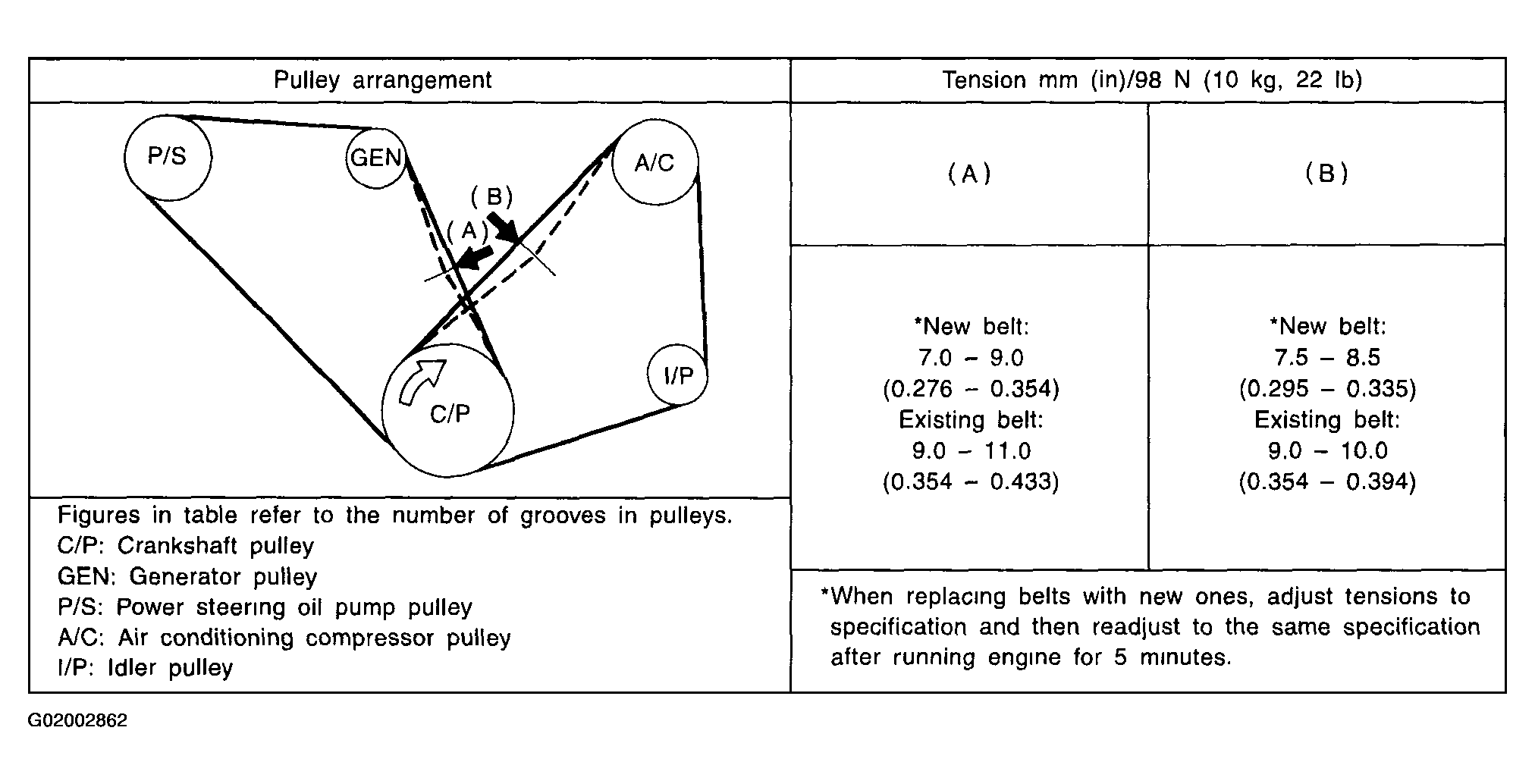

Fig 6: Checking & Adjusting Tension Of Both V-Belts
Install high-pressure hose (B) and low-pressure hose (A).
CAUTION: Be sure to apply compressor oil to the periphery of O-ring.

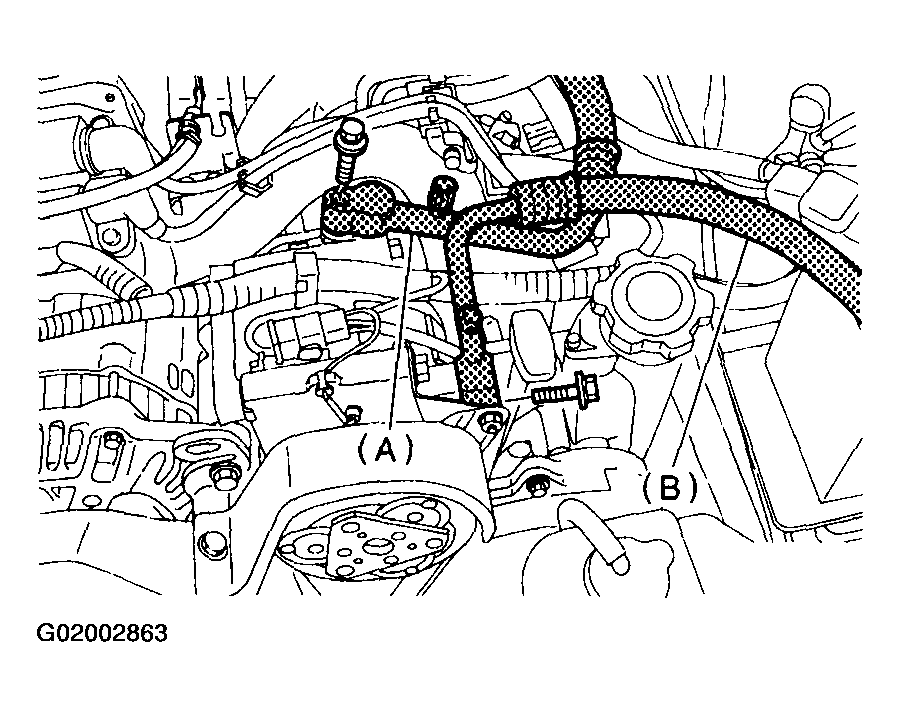

Fig 7: Installing Low-Pressure Hose (A) & High-Pressure Hose (B)
Install belt cover.
CAUTION:
- After installing belt cover, make sure it is not misaligned or twisted.
- After installing belt cover, check the clearance between pulley and belt cover.
Connect ground cable to negative terminal of battery.
Charging refrigerant. See EVACUATING AND CHARGING .
