Toe-In Adjustment: Rear

Loosen adjusting bolt for rear lateral link. See Fig 1 . Turn eccentric cam bolt head counterclockwise to change toe-out angle. Turn eccentric cam bolt head clockwise to change toe-in angle. Tighten adjusting bolt to specification.

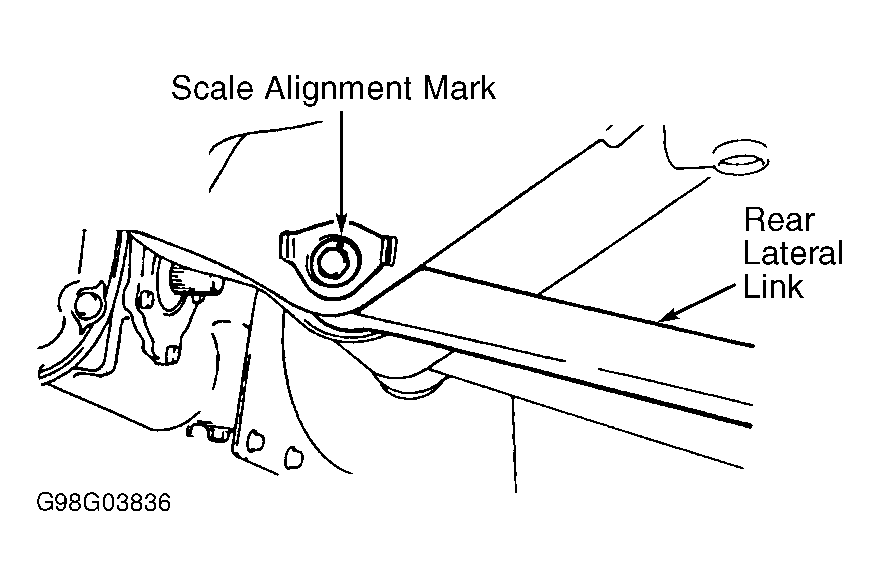

Fig 1: Adjusting Rear Toe-In
G98G03836Courtesy of SUBARU OF AMERICA, INC.
