Home >> Subaru >> 2000 >> Outback Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul - 4-ATAXLE >> Component Disassembly & Reassembly >> Valve Body >> Notes

Valve Body: Notes

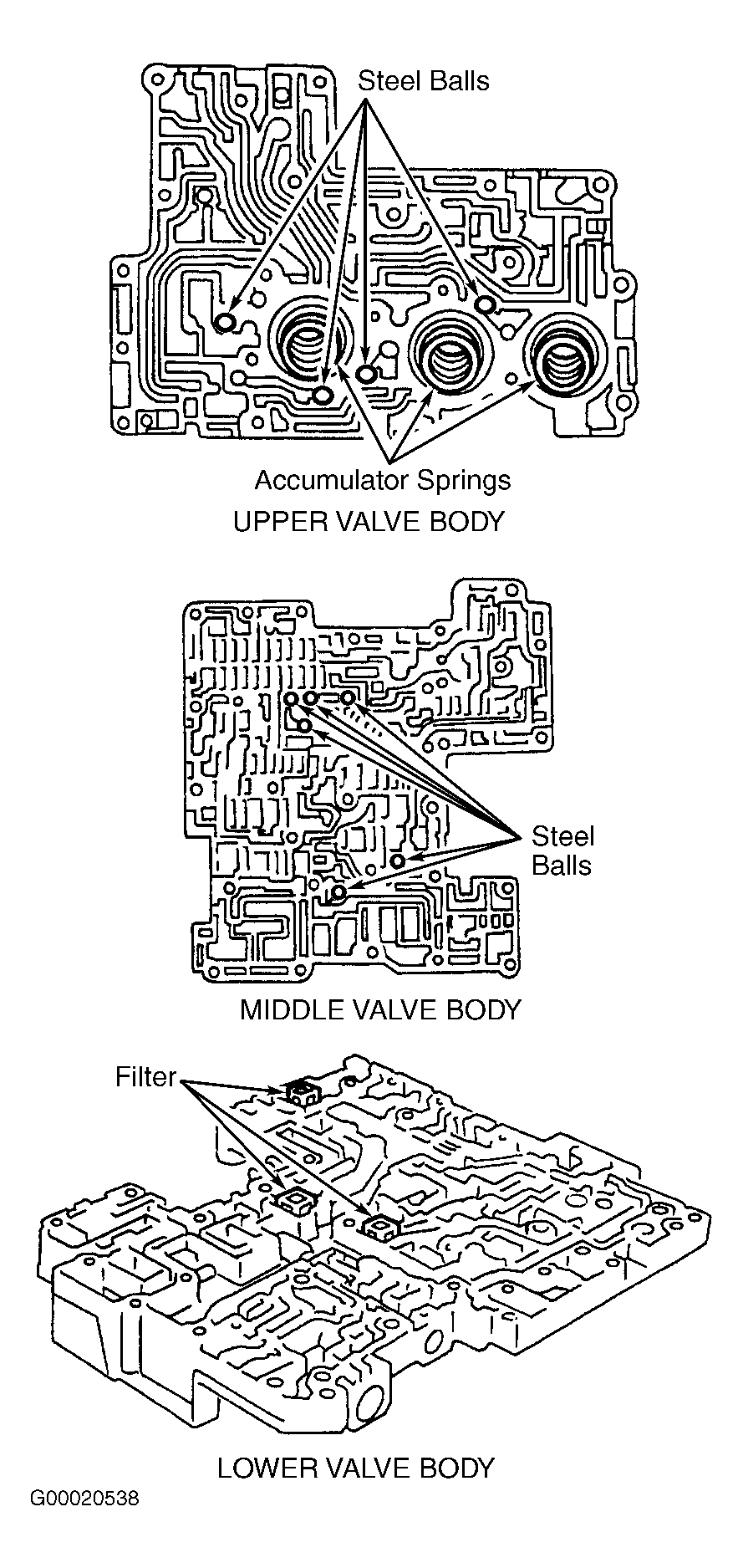

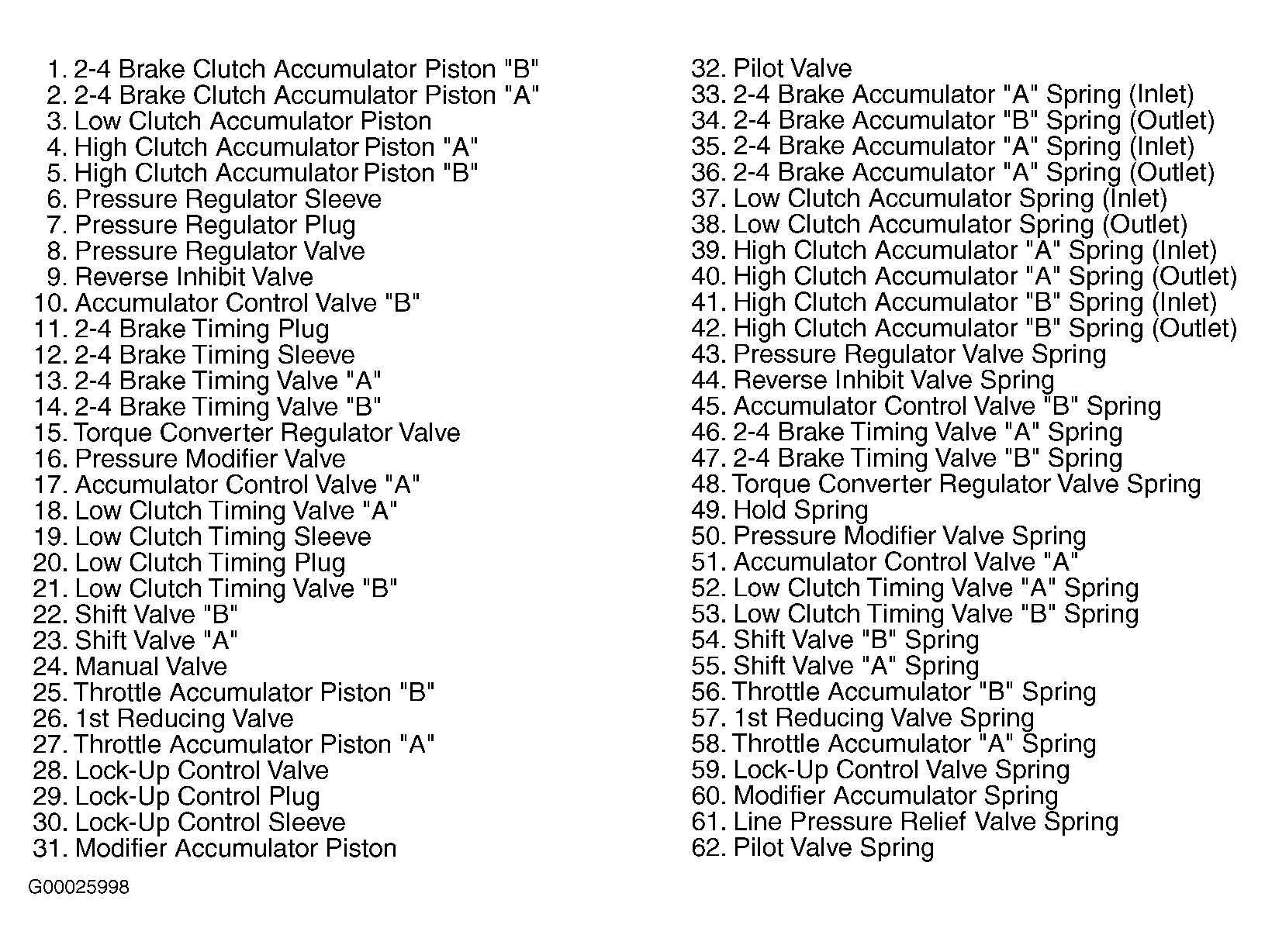

NOTE: During minor overhaul, complete disassembly and cleaning of valve body is not necessary. If any contamination is present in transaxle assembly, completely disassemble valve body and thoroughly clean all components. See Figure -Figure . After reassembly, ensure smooth operation of all valves.
