Front Suspension

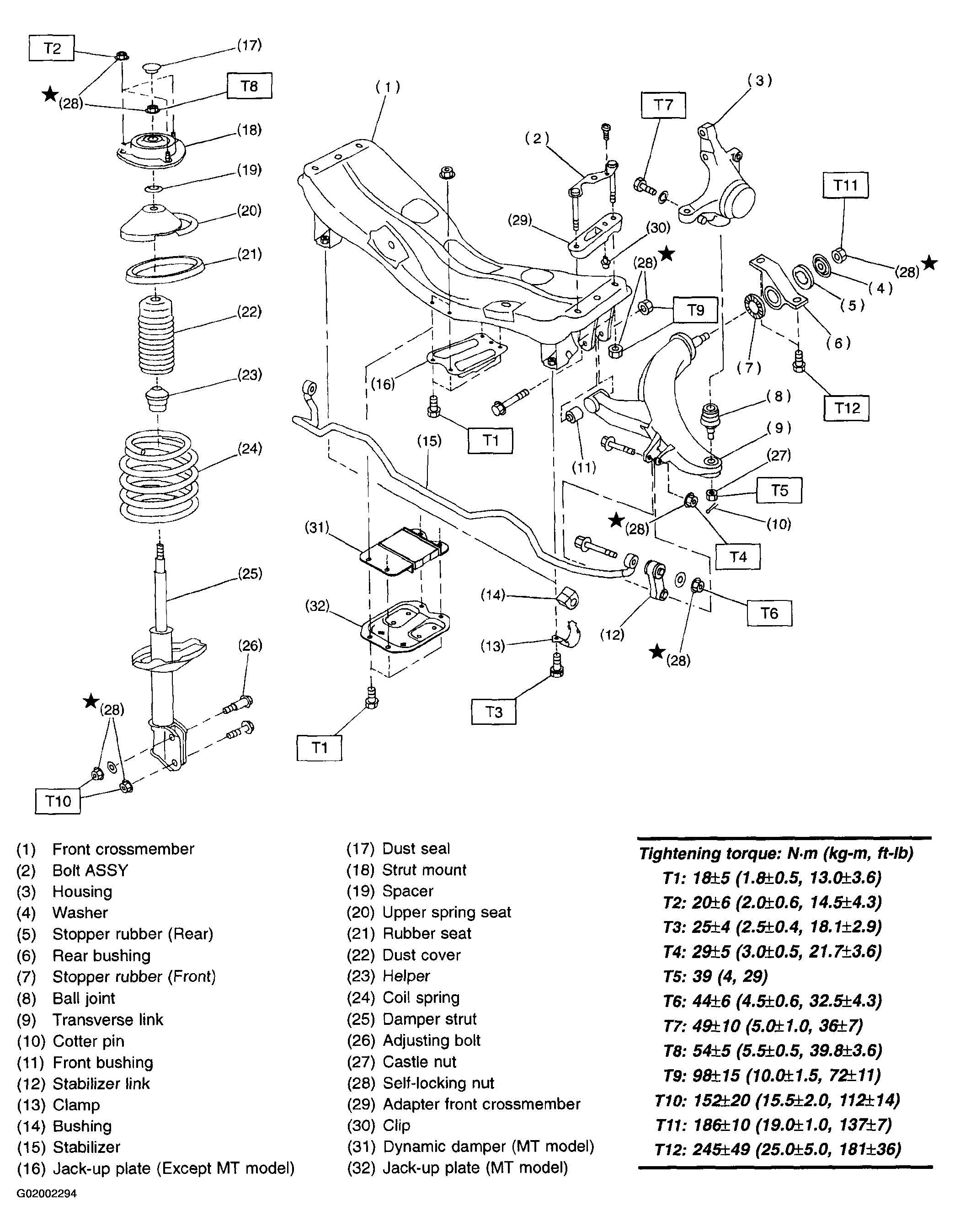

Fig 1: Identifying Front Suspension Components

Tightening torque: N.m (kg-m, ft-lb)

1. T1:  18+/-5 (1.8+/-0.5, 13.0+/-3.6)
2. T2:  20+/-6 (2.0+/-0.6, 14.5+/-4.3)
3. T3:  25+/-4 (2.5+/-0.4, 18.1+/-2.9)
4. T4:  29+/-5 (3.0+/-0.5, 21.7+/-3.6)
5. T5:  39 (4, 29)
6. T6:  44+/-6 (4.5+/-0.6, 32.5+/-4.3)
7. T7:  49+/-10 (5.0+/-1.0, 36+/-7)
8. T8:  54+/-5 (5.5+/-0.5, 39.8+/-3.6)
9. T9:  98+/-15 (10.0+/-1.5, 72+/-11)
10. T10:  152+/-20 (15.5+/-2.0, 112+/-14)
11. T11:  186+/-10 (19.0+/-1.0, 137+/-7)
12. T12:  245+/-49 (25.0+/-5.0, 181+/-36)
