Home >> Subaru >> 2001 >> Forester Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> A/T Mechanism & Function >> Hydraulic Control Valve >> Function

Hydraulic Control Valve: Function

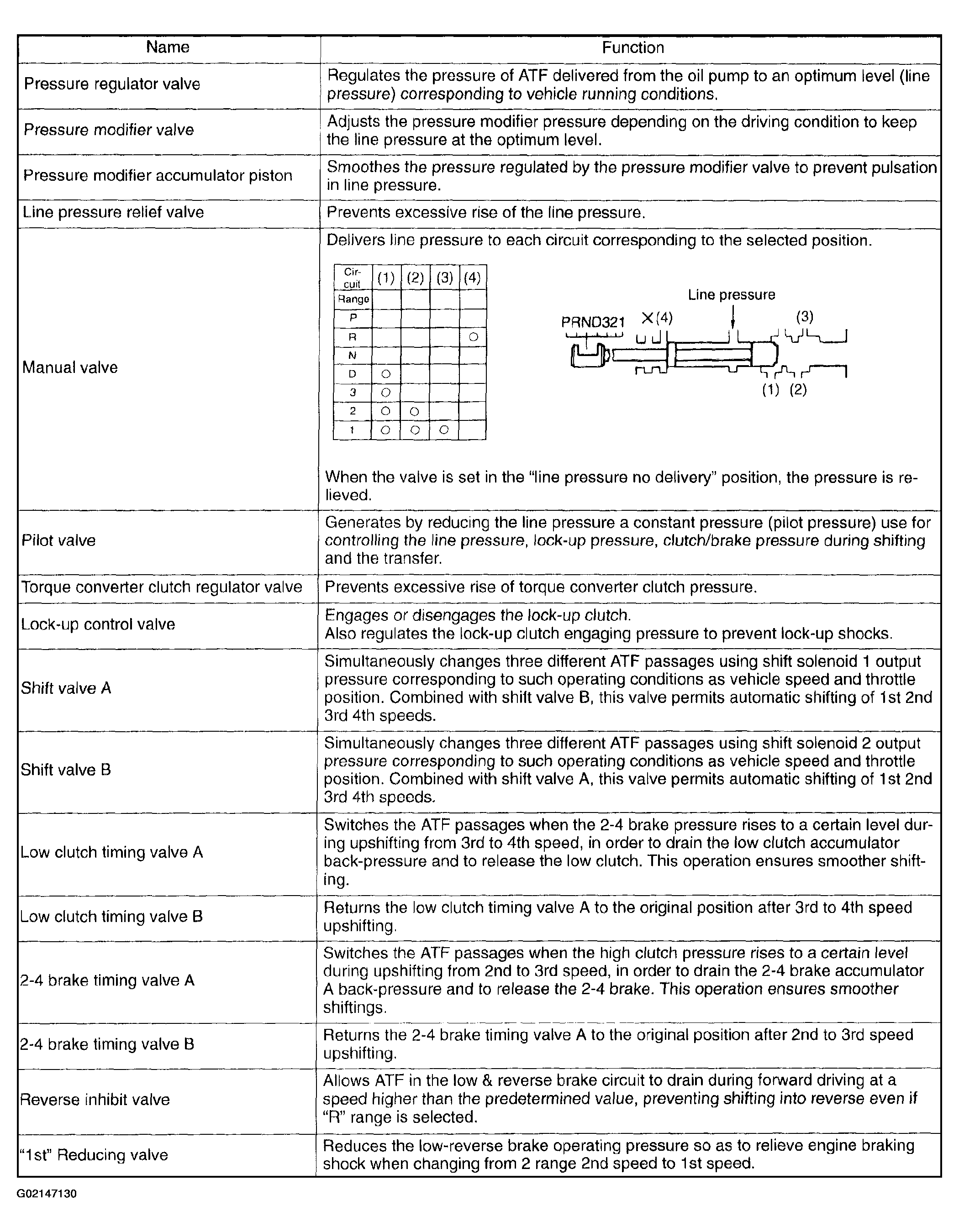

Fig 1: Hydraulic Control Valve Function Chart (1 Of 2)

G02147130

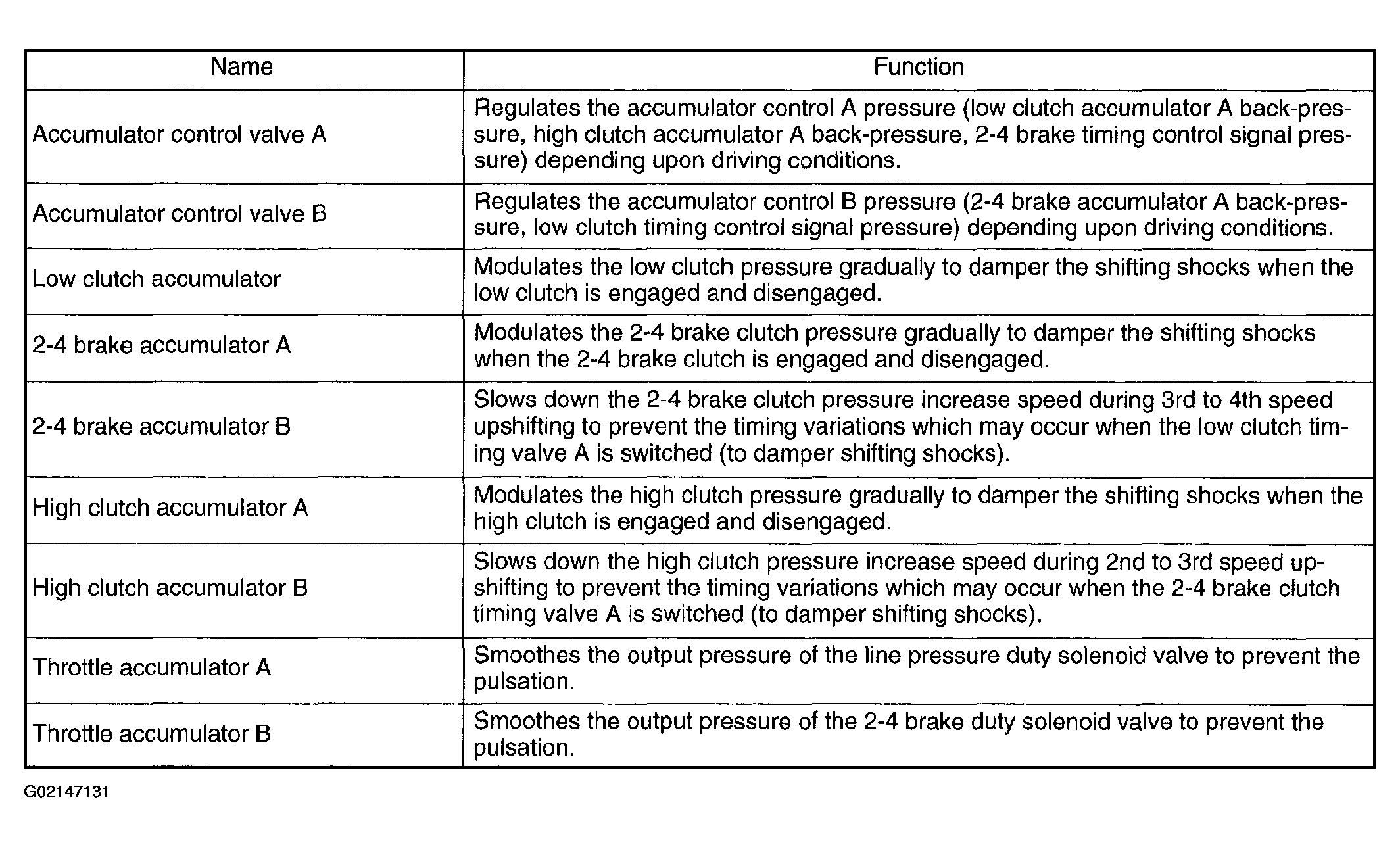

Fig 2: Hydraulic Control Valve Function Chart (2 Of 2)

G02147131
