R Range

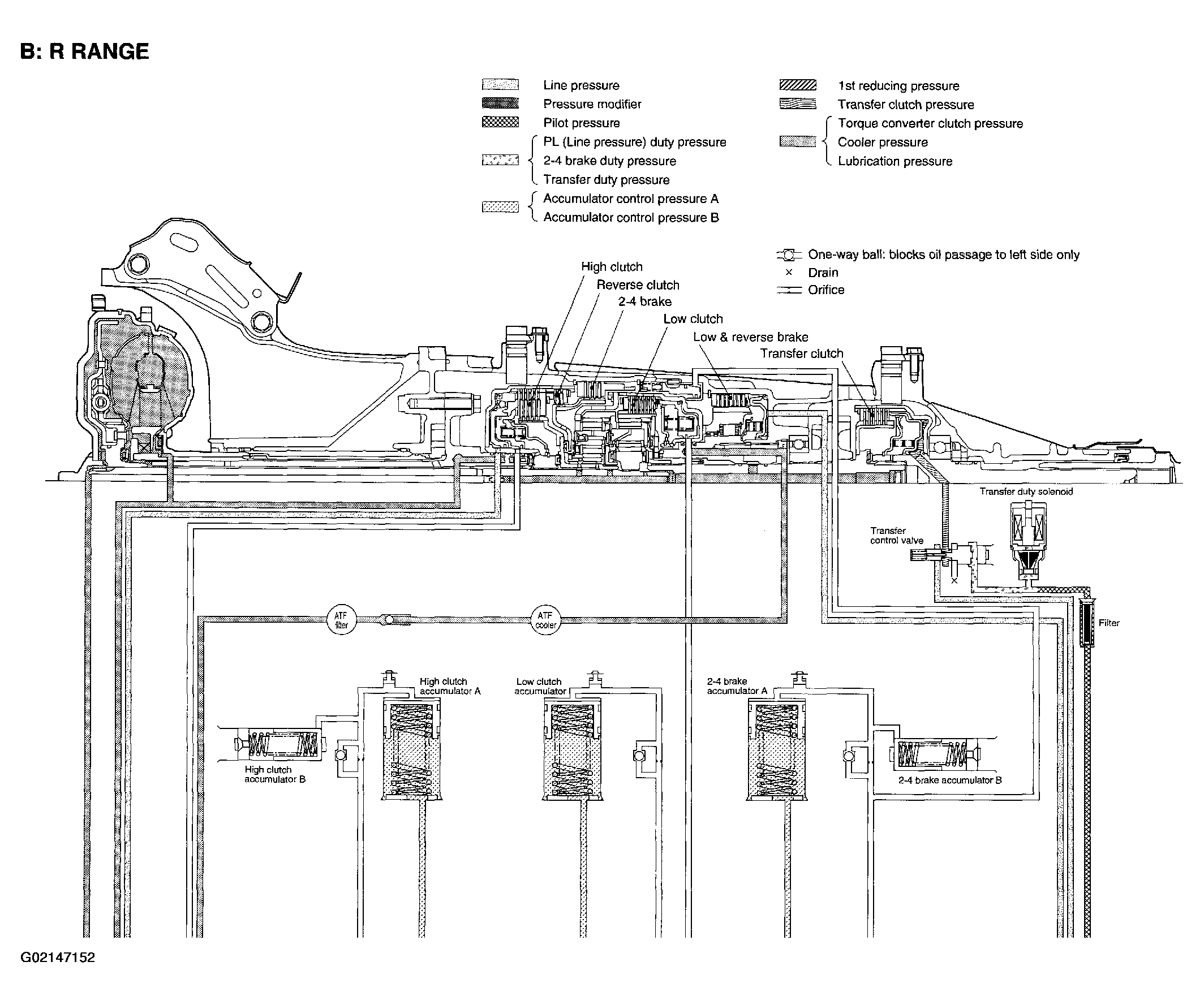

Fig 1: R Range - Schematic Drawing (1 Of 2)

G02147152

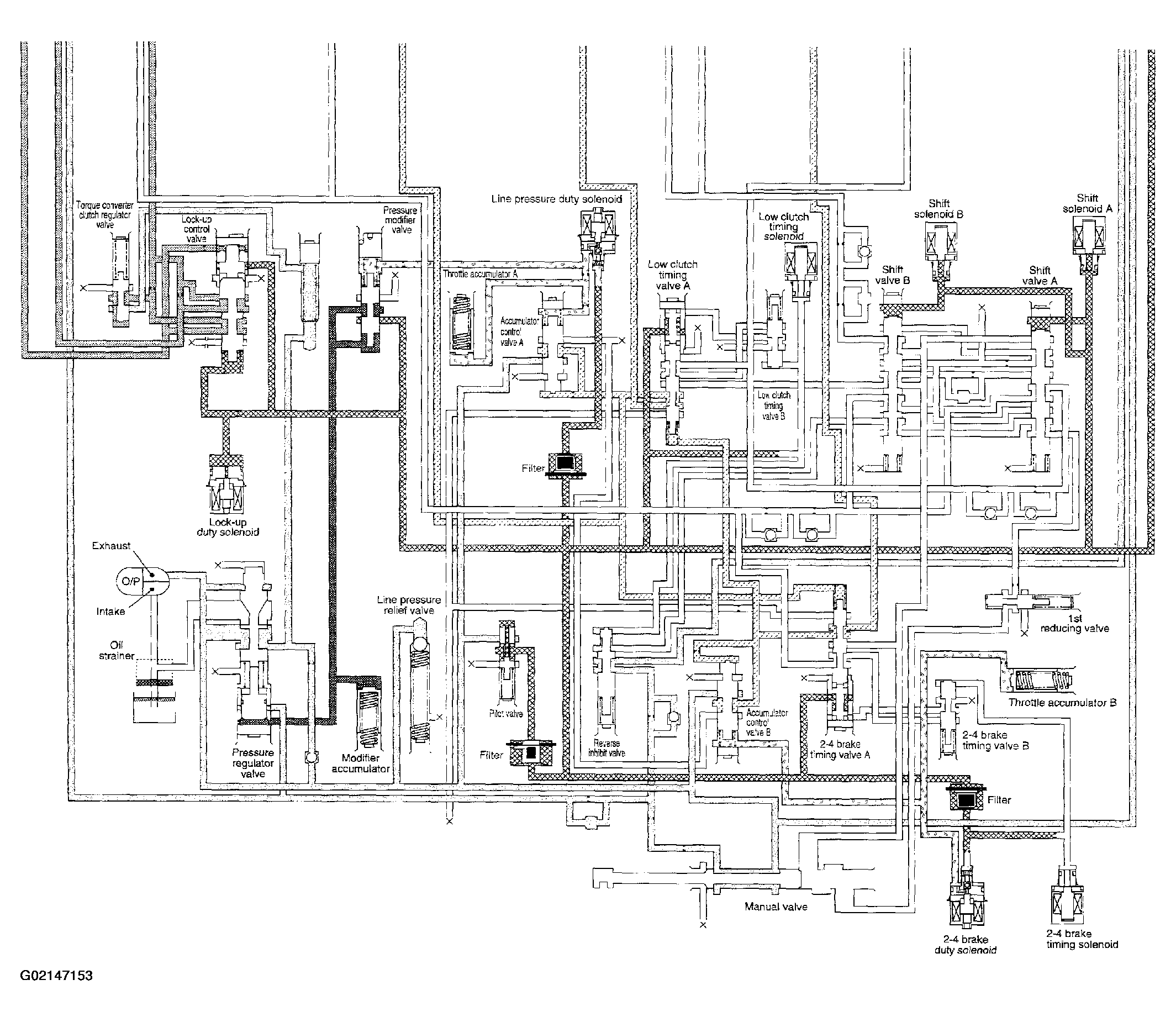

Fig 2: R Range - Schematic Drawing (2 Of 2)

G02147153
