Line-Pressure Shifting Control: Function

Oil pressure which engages shift clutches (to provide 1st through 4th speeds) is electronically controlled to meet varying operating conditions.

In other words, line pressure decreases to match the selected shift position, minimizing shifting shock.

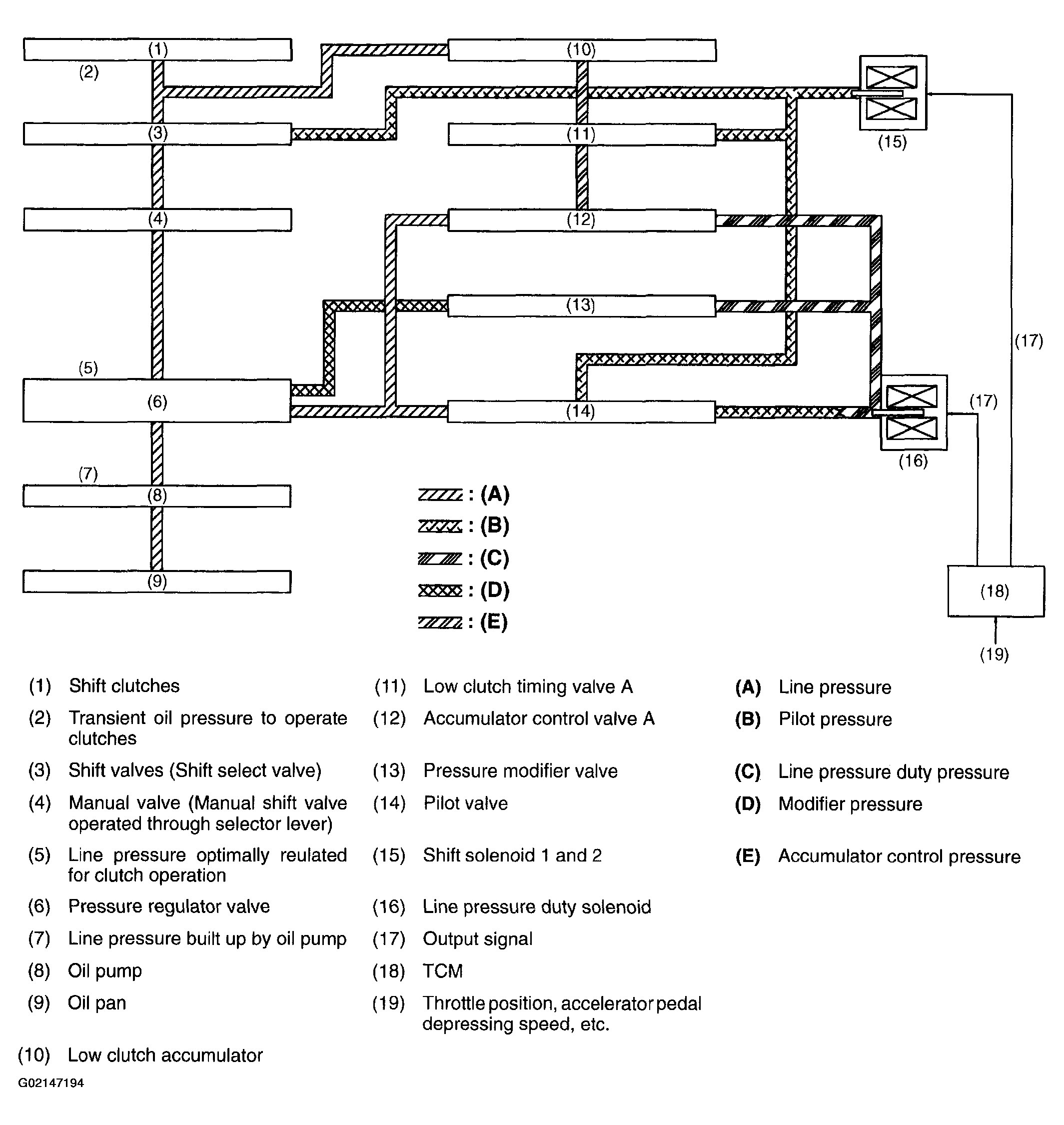

Fig 1: Line-Pressure Shifting Control - Function
G02147194
