Extension Section

  1. Take out the transfer clutch by lightly tapping the end of the rear drive shaft.
    CAUTION: Be careful not to damage the oil seal in the extension.

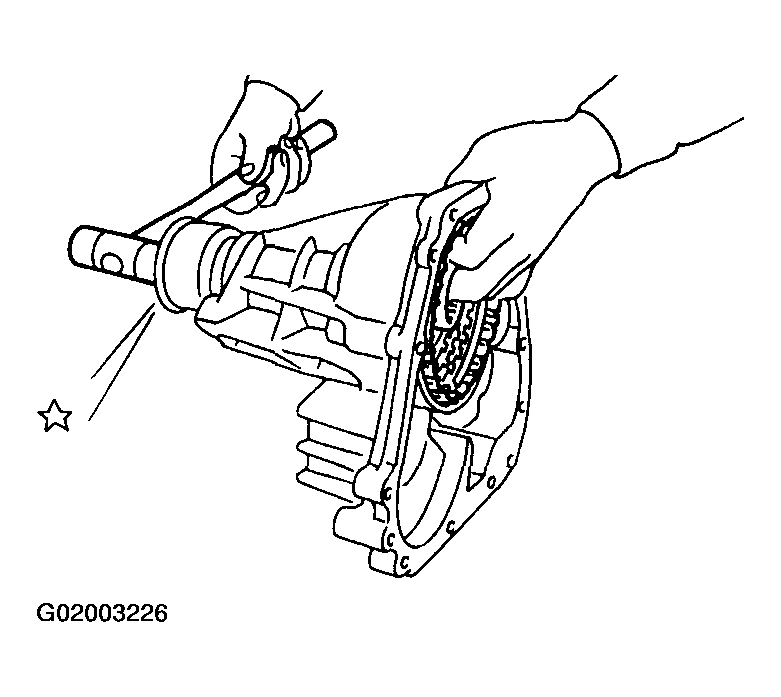

    Fig 1: Tapping End Of Rear Drive Shaft For Removal
    G02003226
  2. Remove the transfer pipe.
    CAUTION: Be careful not to bend the pipe.

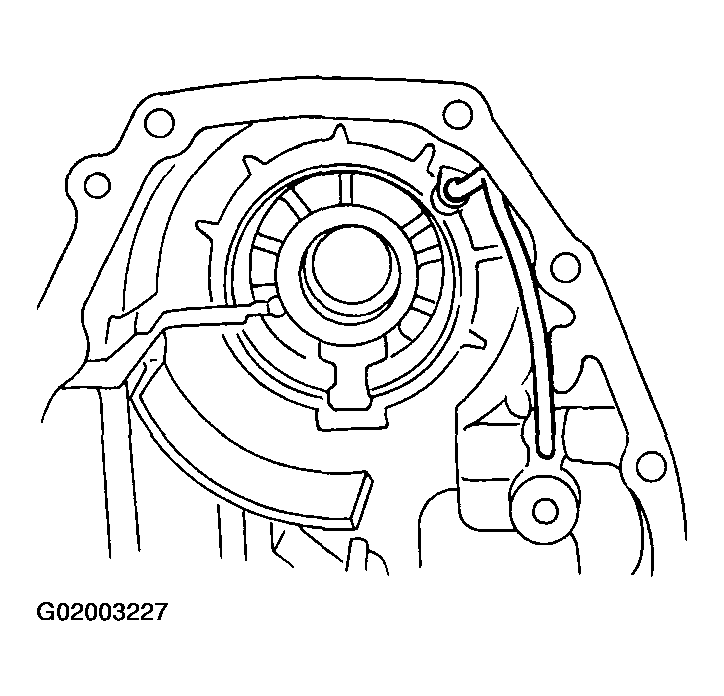

    Fig 2: Identifying Transfer Pipe
    G02003227
