Transfer Valve Body: Disassembly

  1. Separate transfer duty solenoid and transfer valve body.
  2. Remove the stopper plate and pry out the plug with a screwdriver. Then extract the spring and transfer control valve together.
    CAUTION: Be careful not to damage the valve and valve body.

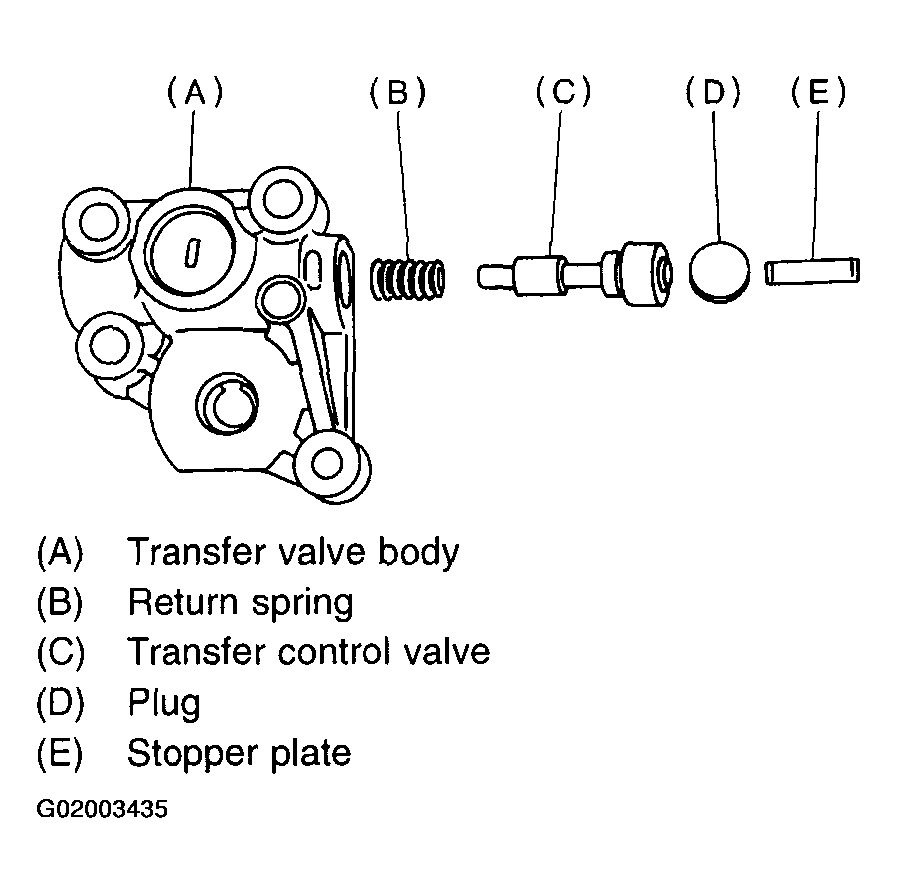

    Fig 1: Identifying Transfer Valve Body Components
    G02003435
