Transmission Control Module (TCM): Installation

  1. Install TCM to brake pedal bracket.

    Tightening torque:  7.4+/-2.0 N.m (0.75+/-0.2 kg-m, 5.4+/-1.4 ft-lb)

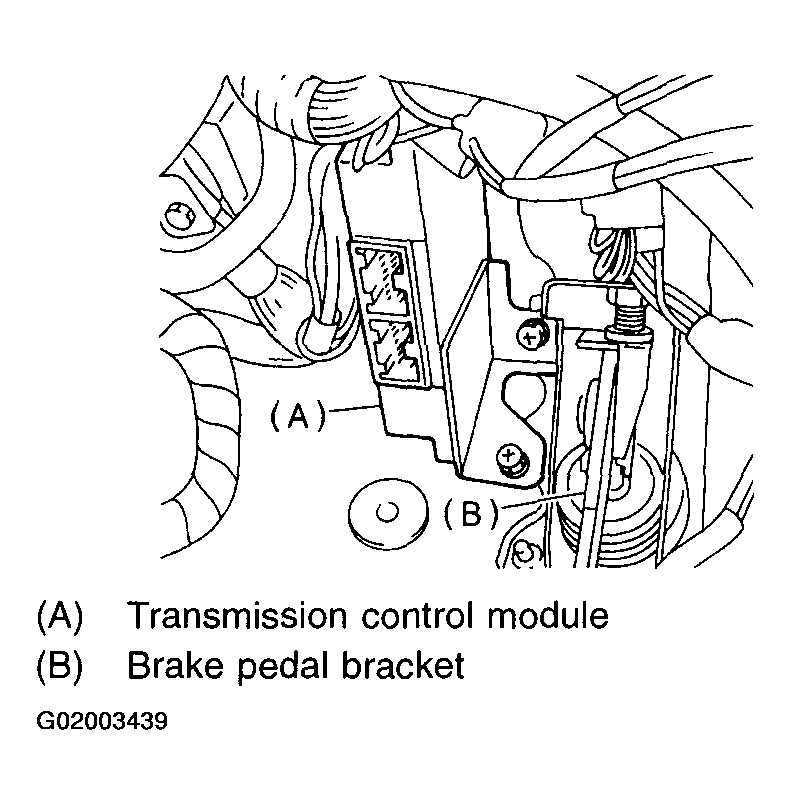

    Fig 1: Installing TCM To Brake Pedal Bracket
    G02003439
  2. Connect connectors to TCM.
  3. Install lower cover and then connect connector.
  4. Connect battery terminal.
