Transmission Control Module (TCM): Removal

  1. Disconnect battery ground terminal.

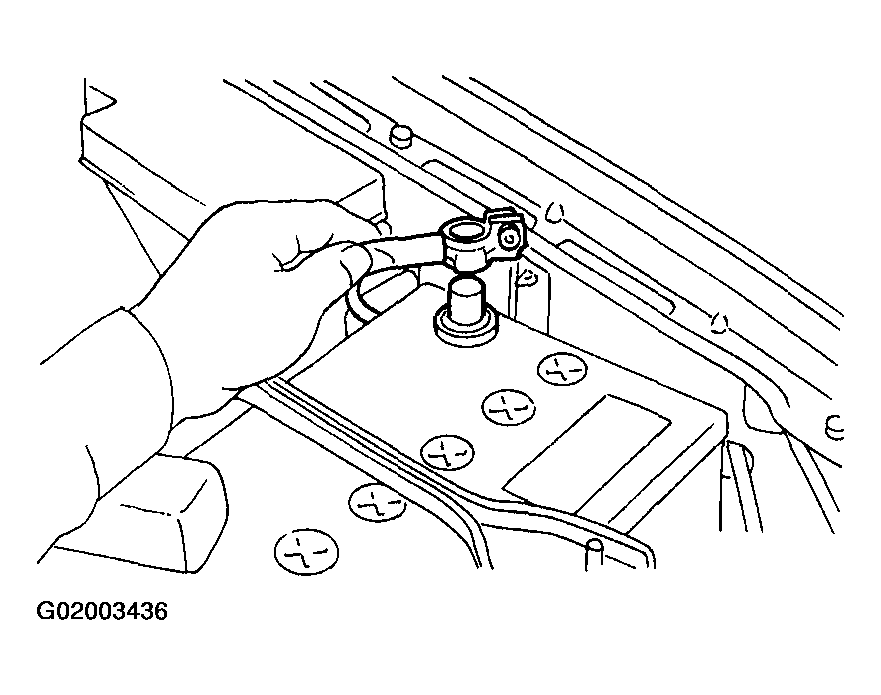

    Fig 1: Disconnecting Battery Ground Terminal
    G02003436
  2. Remove lower cover and then disconnect connector.

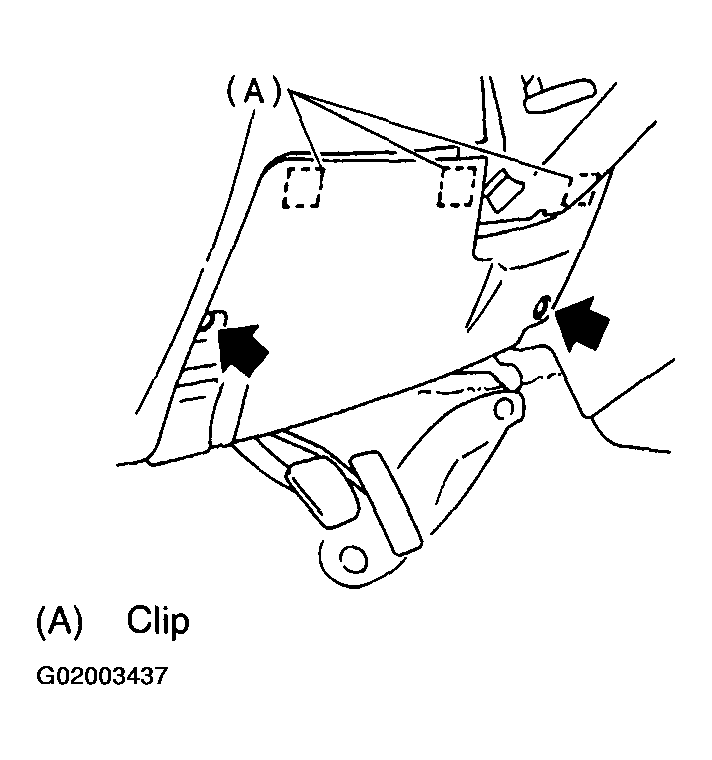

    Fig 2: Removing Lower Cover On Driver's Side
    G02003437
  3. Disconnect connectors form TCM.
  4. Remove transmission control module.

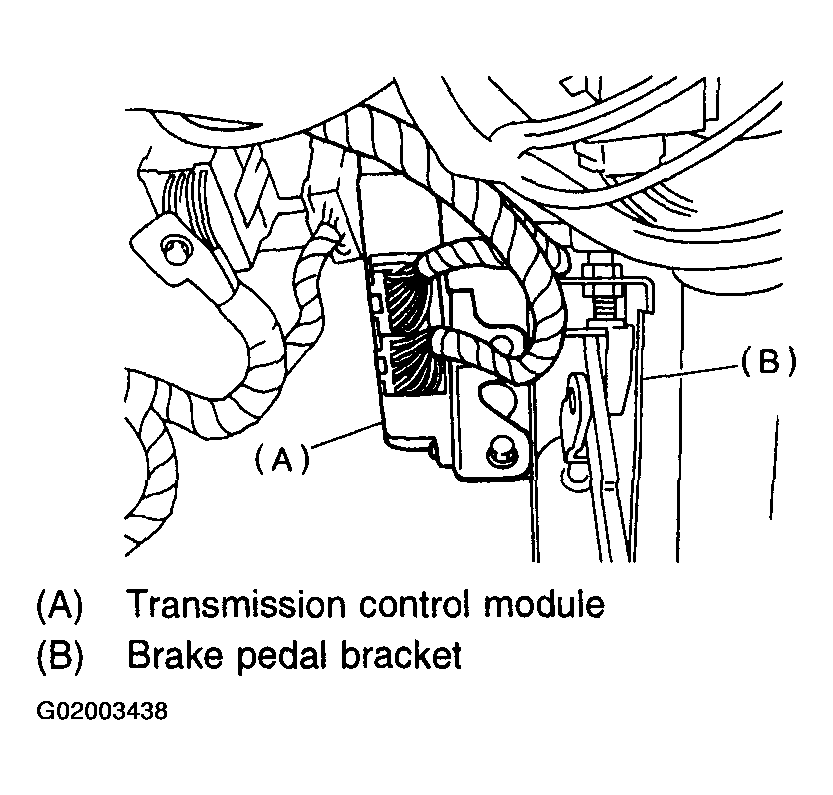

    Fig 3: Identifying Transmission Control Module
    G02003438
