Engine Control Module: Removal

  1. Disconnect battery ground cable.

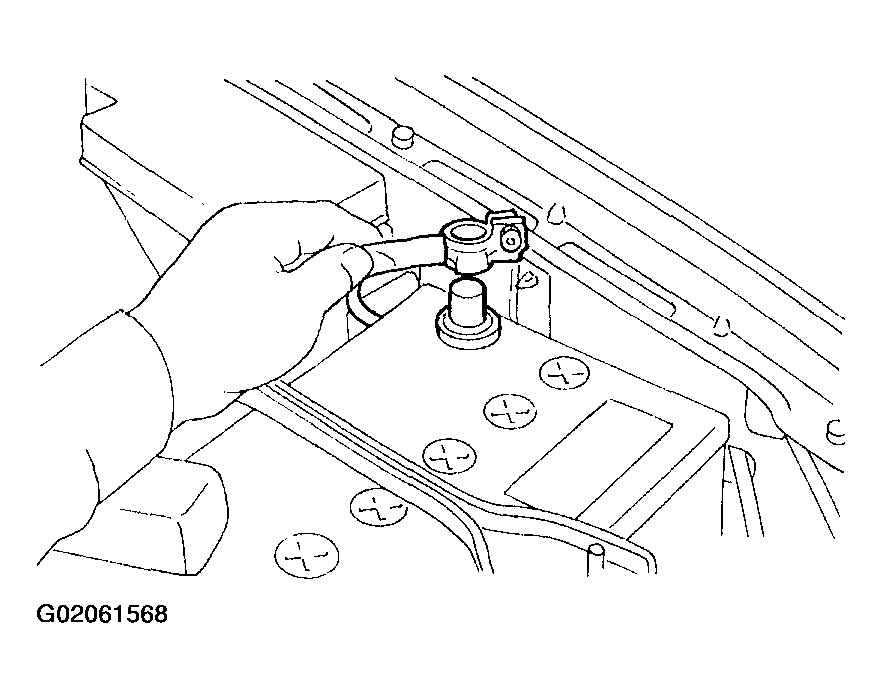

    Fig 1: Disconnecting Battery Ground Cable
    G02061568
  2. Remove side sill front cover.

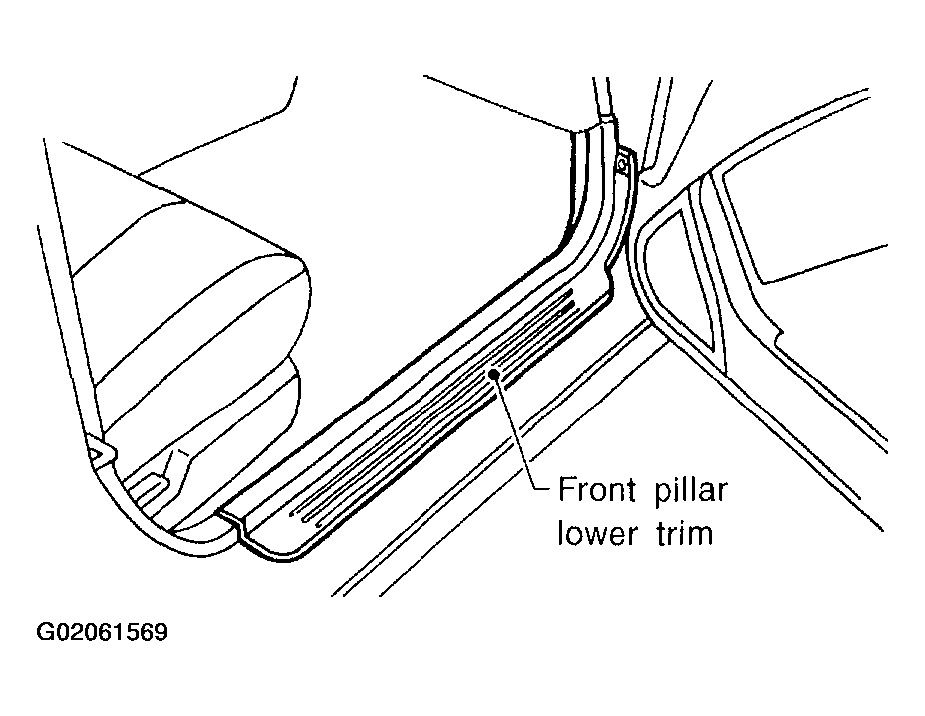

    Fig 2: Removing Side Sill Front Cover
    G02061569
  3. Detach floor mat of front passenger seat.

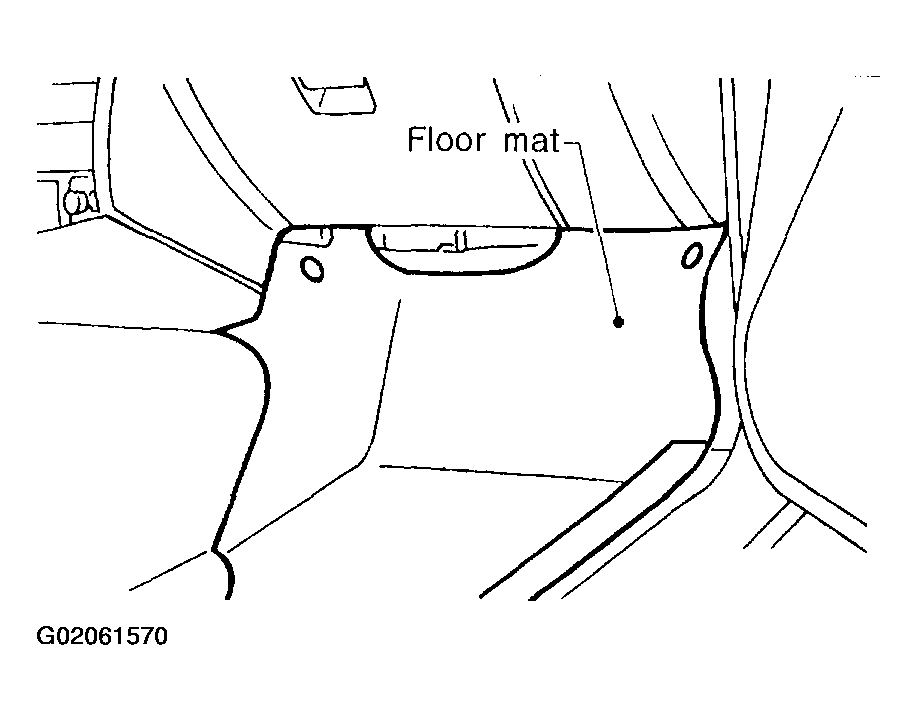

    Fig 3: Detaching Floor Mat Of Front Passenger Seat
    G02061570
  4. Remove protect cover.

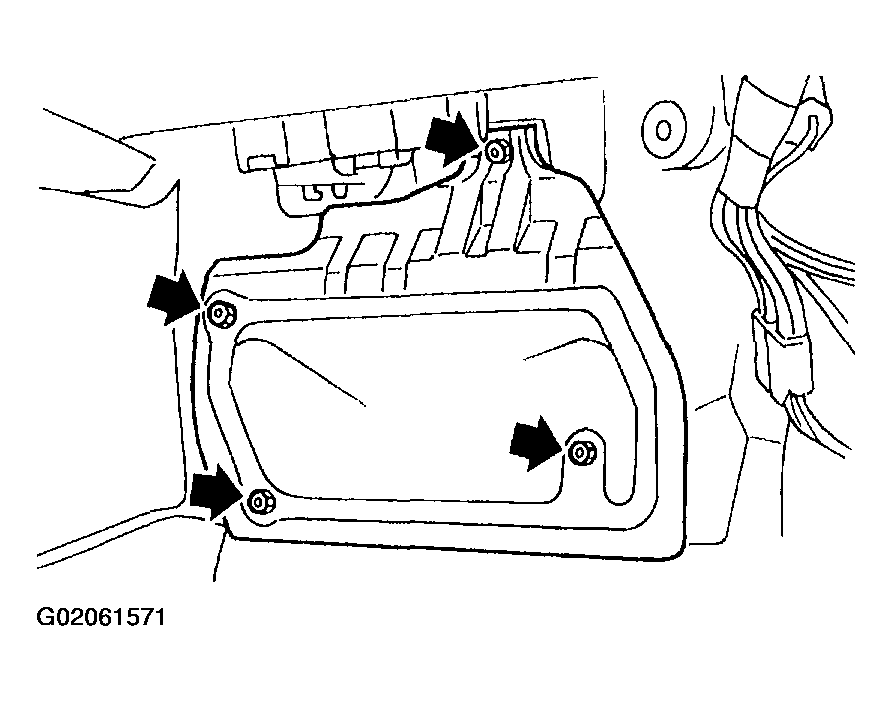

    Fig 4: Removing Protect Cover
    G02061571
  5. Remove nuts which hold ECM to bracket.

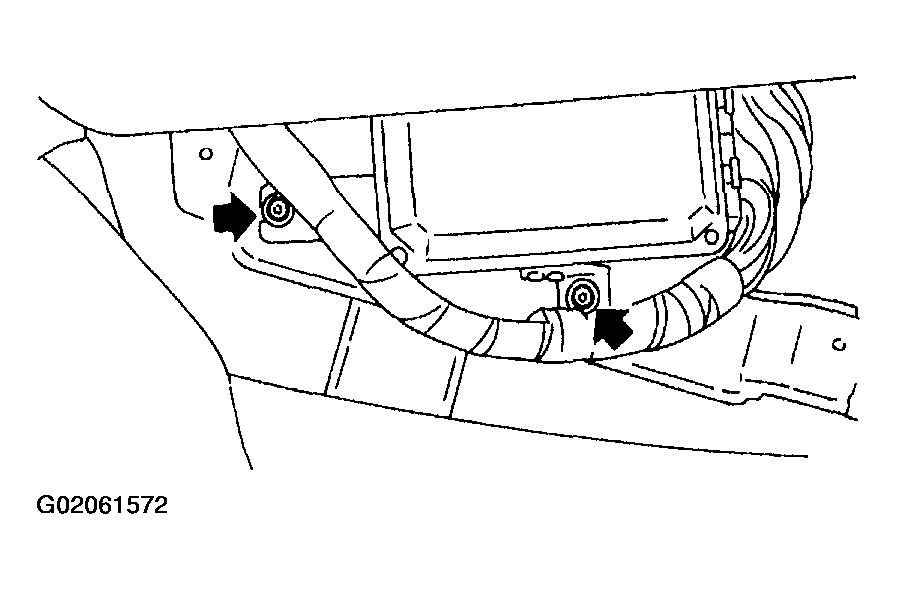

    Fig 5: Removing Nuts Which Hold ECM To Bracket
    G02061572
  6. Remove clip from bracket.

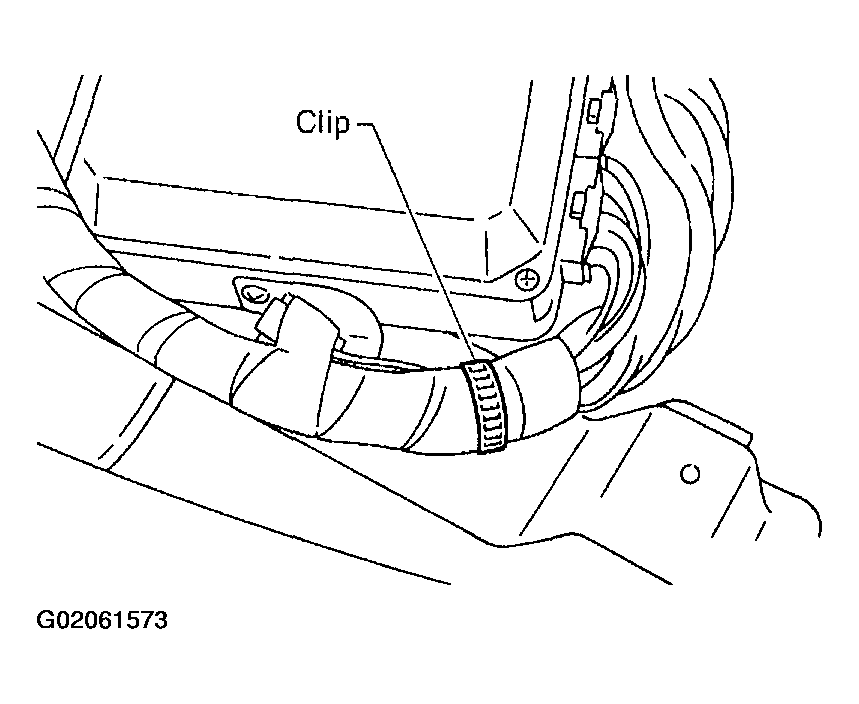

    Fig 6: Removing Clip From Bracket
    G02061573
  7. Disconnect ECM connectors.

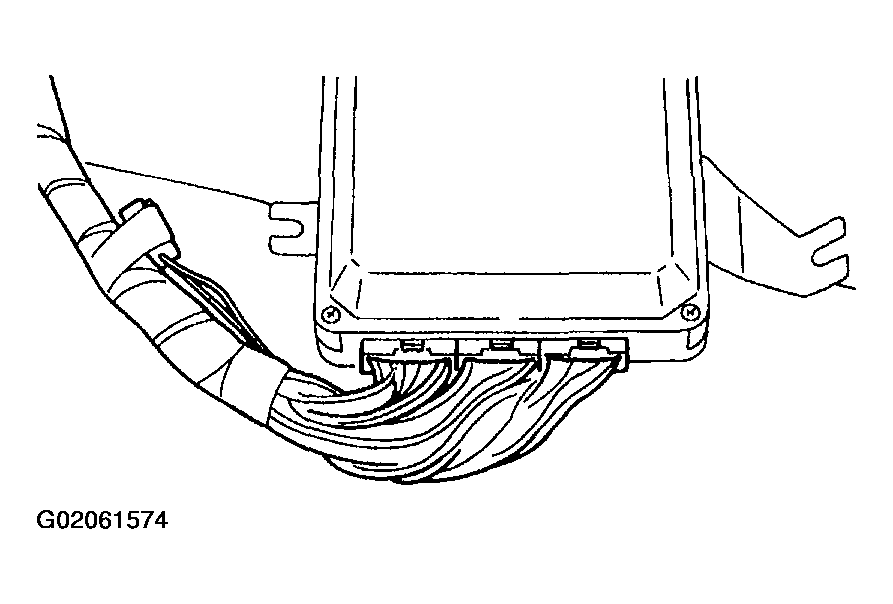

    Fig 7: Disconnecting ECM Connectors
    G02061574
  8. Take out ECM.

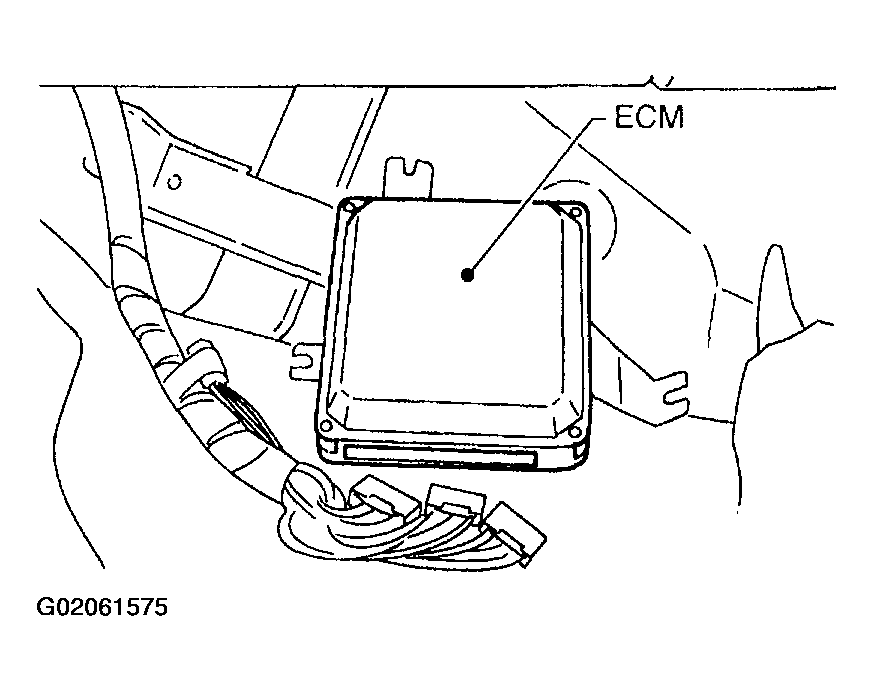

    Fig 8: Removing ECM
    G02061575
