Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Braking System >> General Description >> Component >> Sensor

Anti-Lock Braking System: General Description: Component: Sensor

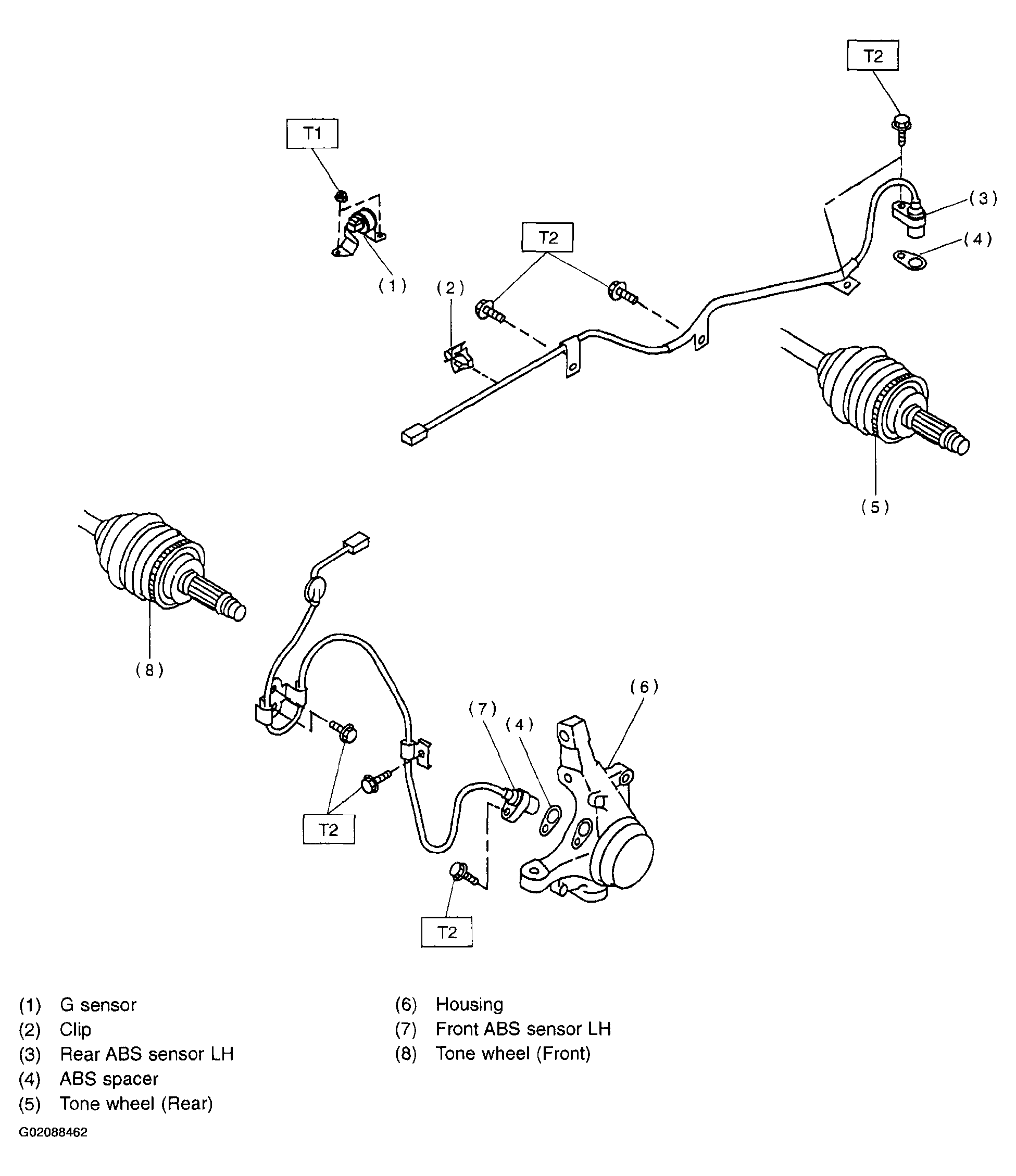

Fig 1: Exploded View Of Sensor Components
G02088462

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1: 7.4 (0.75, 5.4)
  2. T2: 32 (3.3, 24)
