Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamics Control (Diagnostics) >> Control Module I/O Signal >> Schematic

Control Module I/O Signal: Schematic

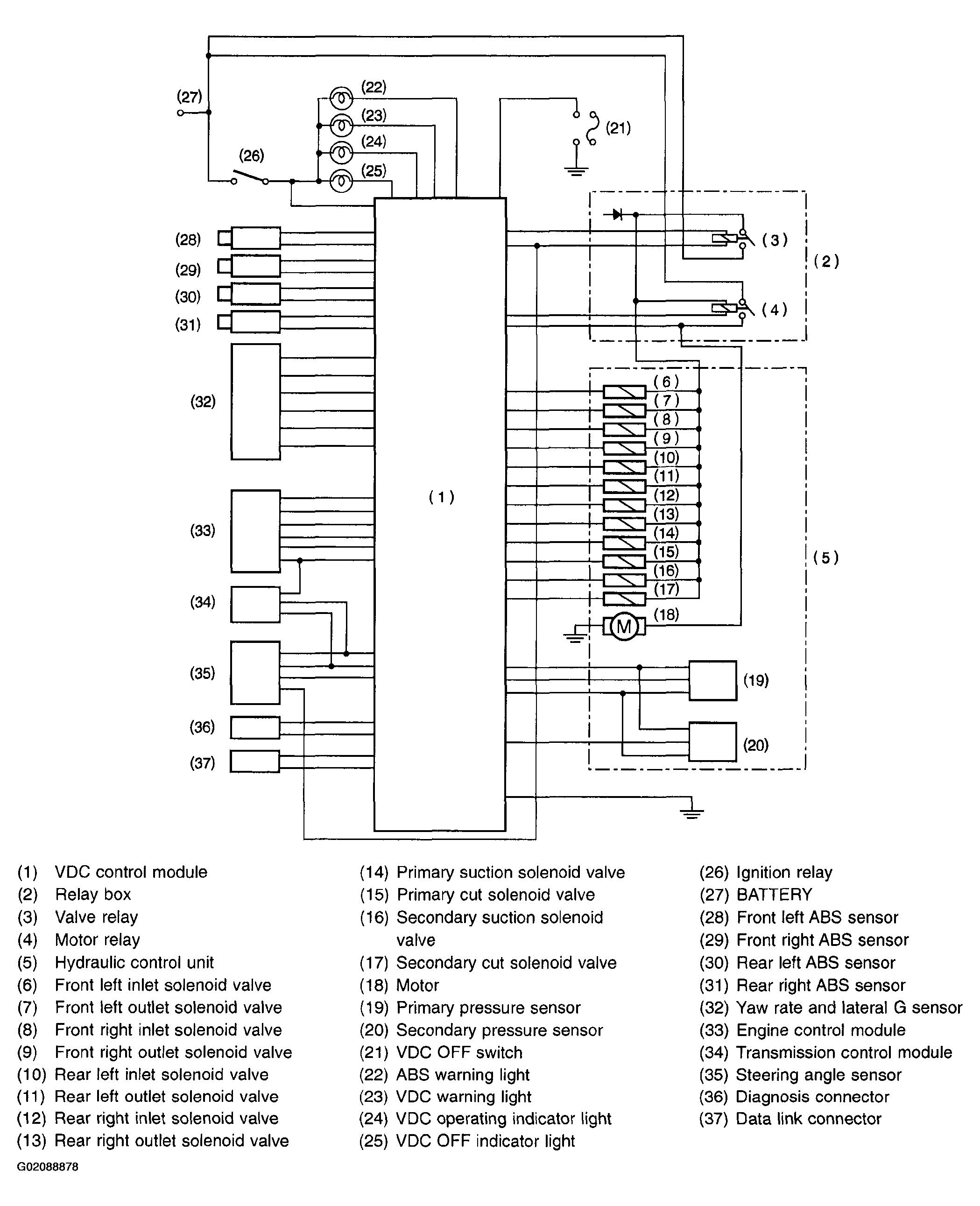

Fig 1: Control Module I/O Signal Schematic

G02088878
