Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamics Control (Diagnostics) >> General Diagnostic Table >> Inspection

General Diagnostic Table: Inspection

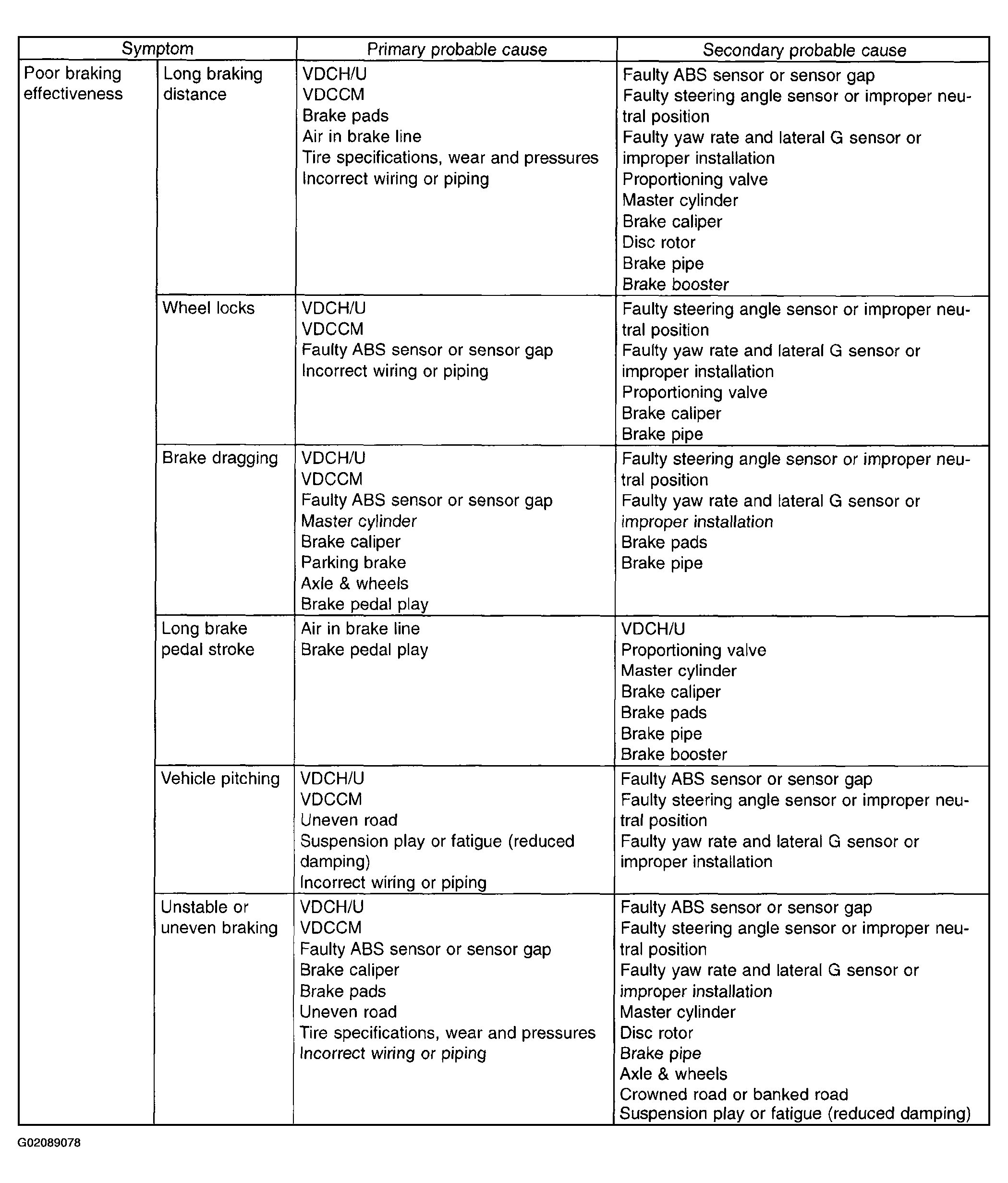

Fig 1: General Diagnostic Chart (1 Of 3)

G02089078

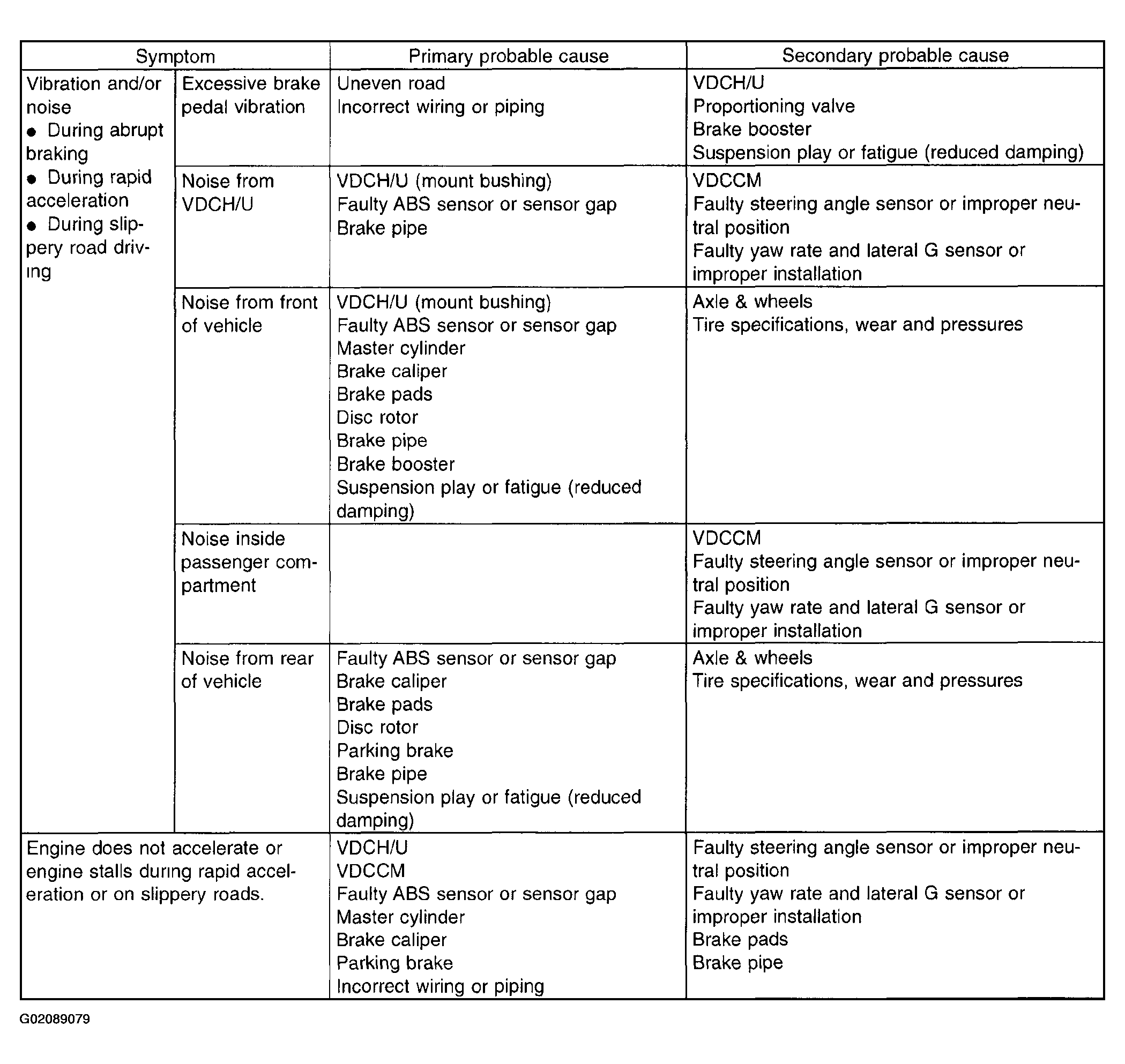

Fig 2: General Diagnostic Chart (2 Of 3)

G02089079

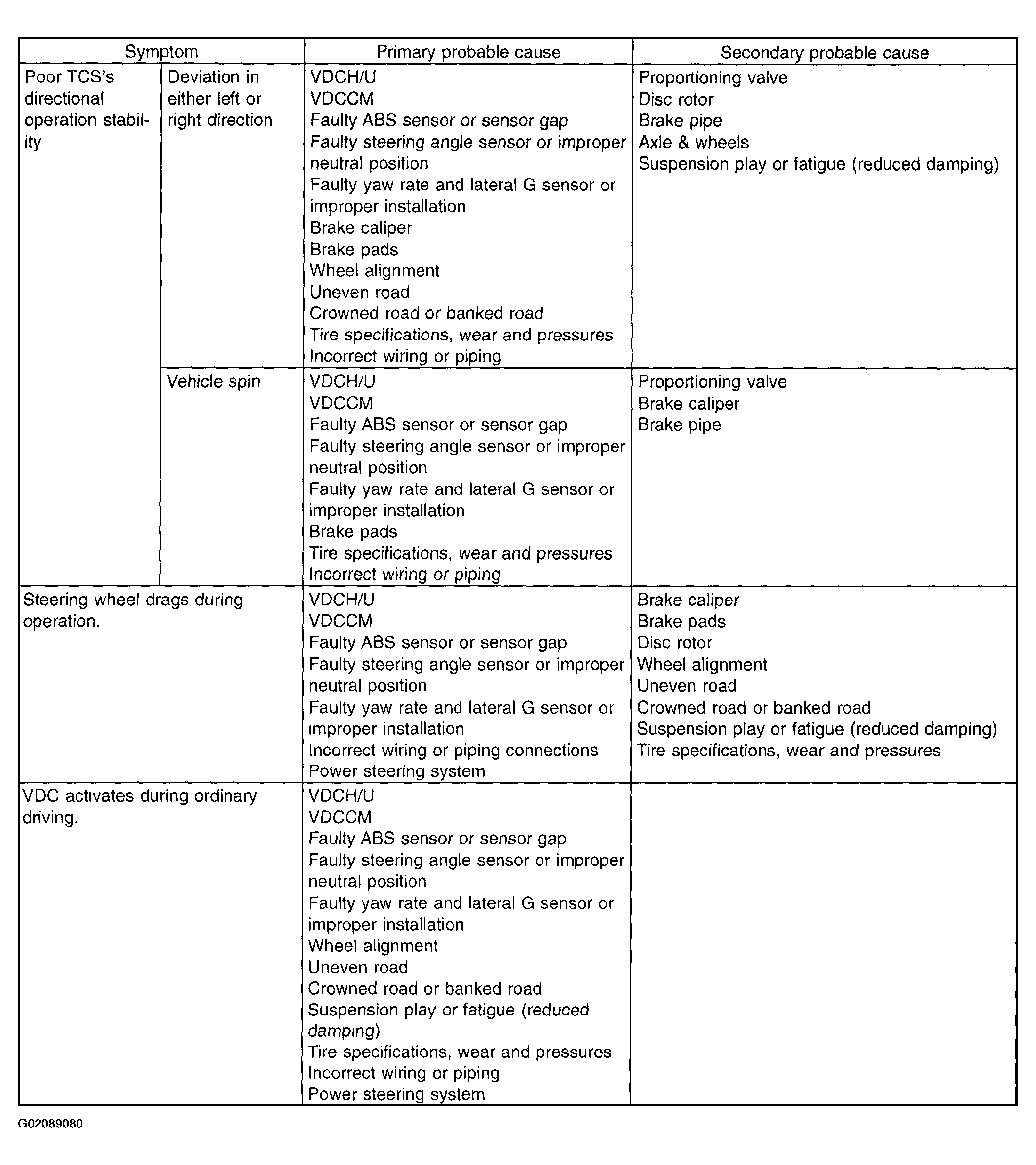

Fig 3: General Diagnostic Chart (3 Of 3)

G02089080
