Read Diagnostic Trouble Code

Prepare Subaru Select Monitor kit.

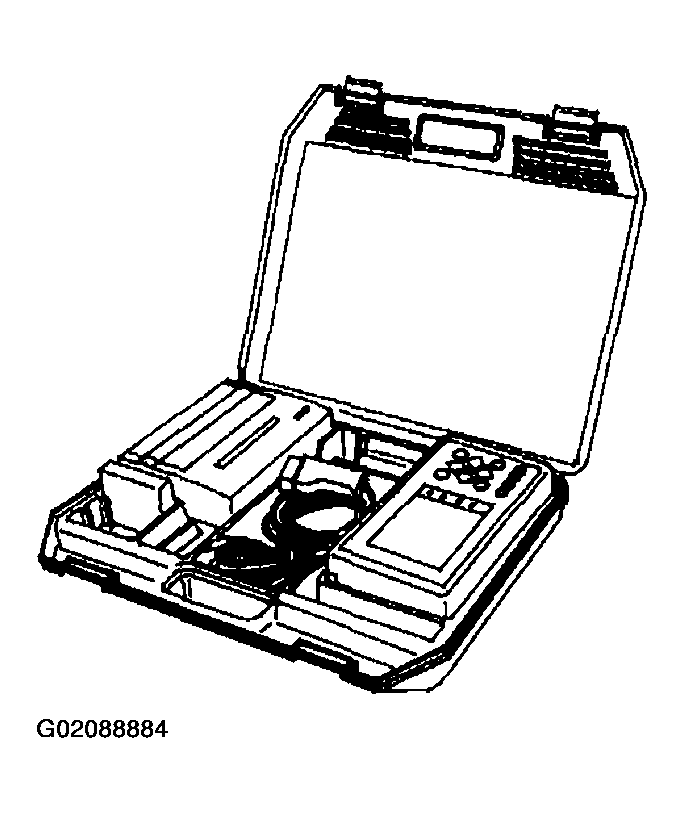

Fig 1: Preparing Subaru Select Monitor Kit
Connect diagnosis cable to Subaru Select Monitor.
Insert cartridge into Subaru Select Monitor. See PREPARATION TOOL .

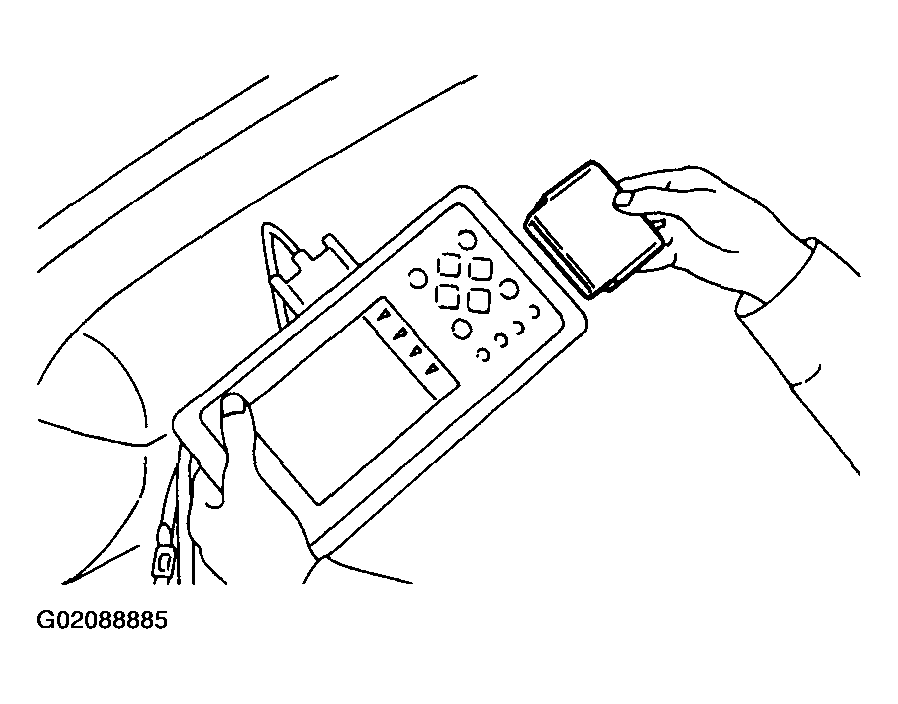

Fig 2: Inserting Cartridge - (Select Monitor)
Connect Subaru Select Monitor to data link connector.
1. Data link connector located in the lower portion of the instrument panel (on the driver's side).

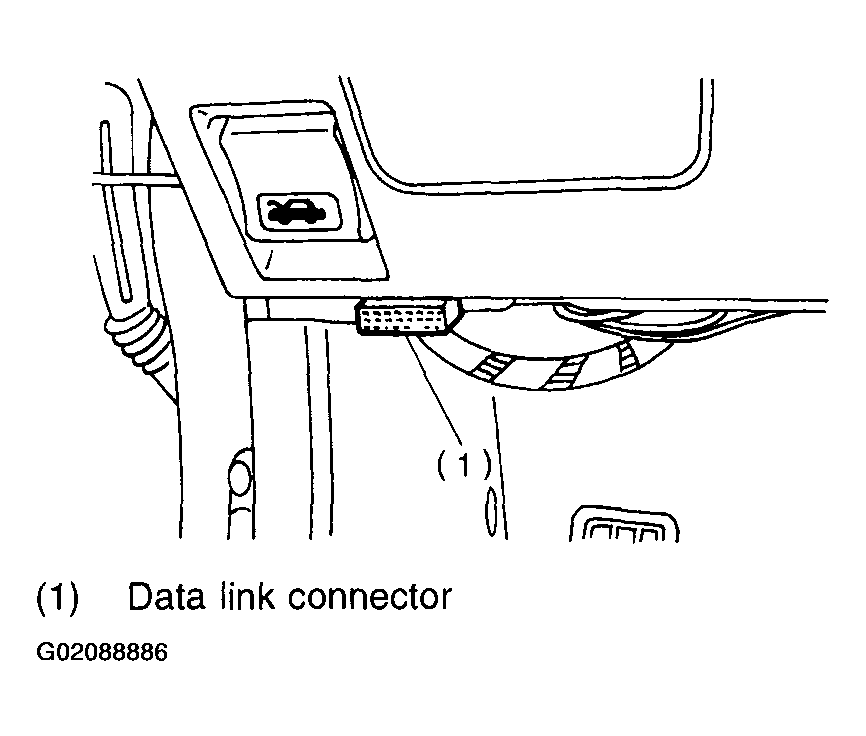

  Fig 3: Locating Data Link Connector
2. Connect diagnosis cable to data link connector.
Turn ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.

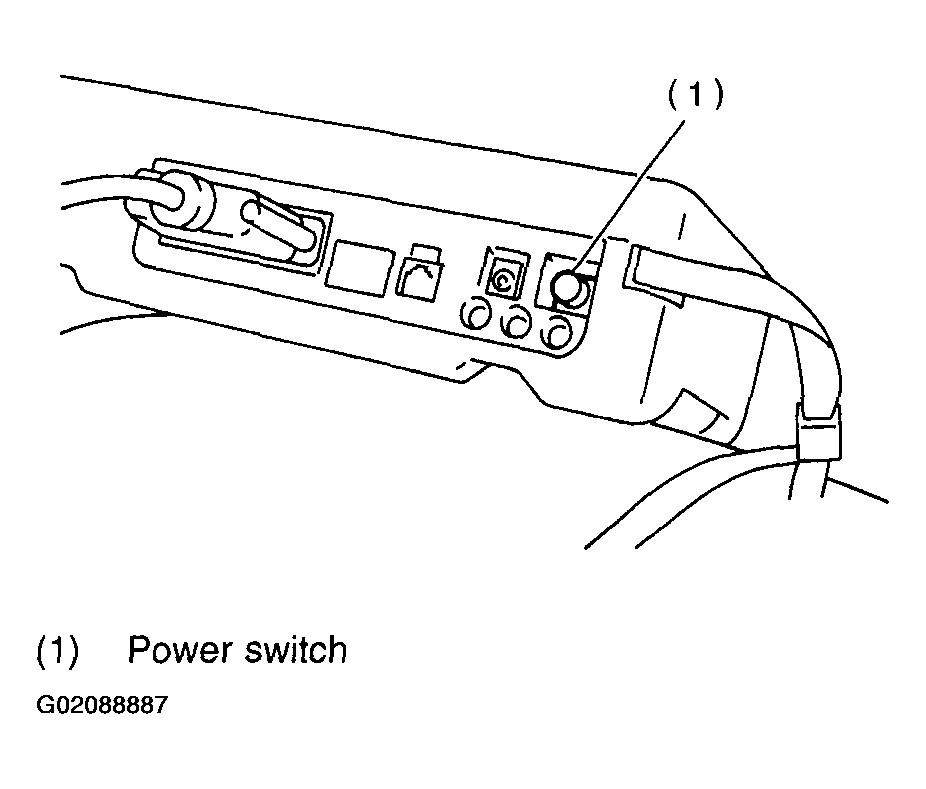

Fig 4: Locating Subaru Select Monitor Switch
On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
On the << System Selection Menu >> display screen, select the {Brake Control System} and press the [YES] key.
Press the [YES] key after displayed the information of engine type.
On the << Brake Diagnosis >> display screen, select the {Diagnostic Code(s) Display} and press the [YES] key.
On the << Diagnostic Code(s) Displays >> display screen, select the {Current Diagnostic Code(s)} or {History Diagnostic Code(s)} and press the [YES] key.

NOTE:

For detailed operation procedure, see Subaru Select Monitor .
For detailed concerning diagnostic trouble codes, see List of Diagnostics Trouble Code .
A maximum of 3 trouble codes are displayed in order of occurrence.

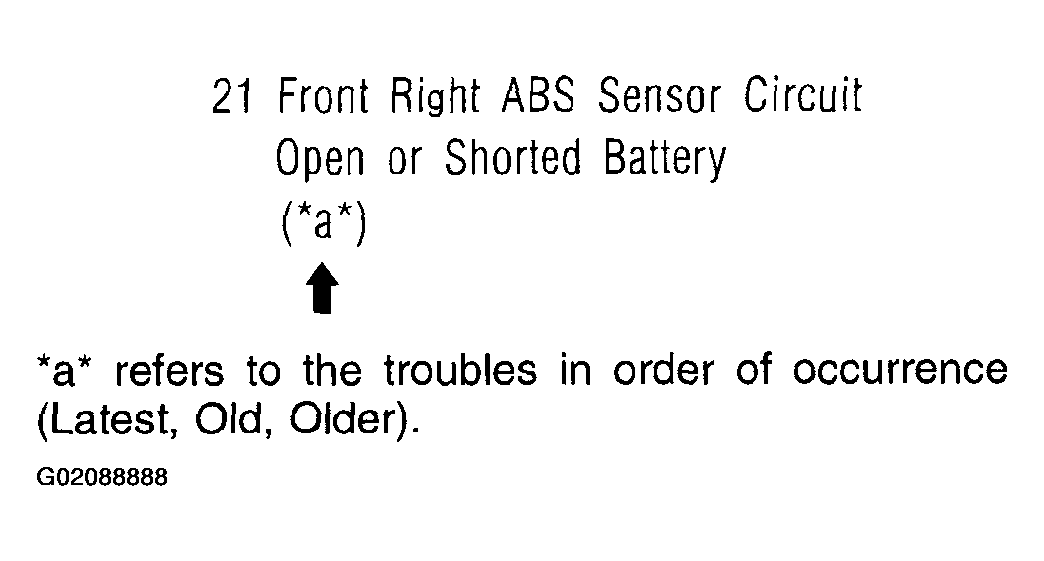

Fig 5: Identifying "a"

"a" refers to trouble codes in order of occurrence (Latest, Old, Older).

Fig 6: Order Of Occurrence Chart
