Section 101 (HVAC): Compressor: Installation
WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

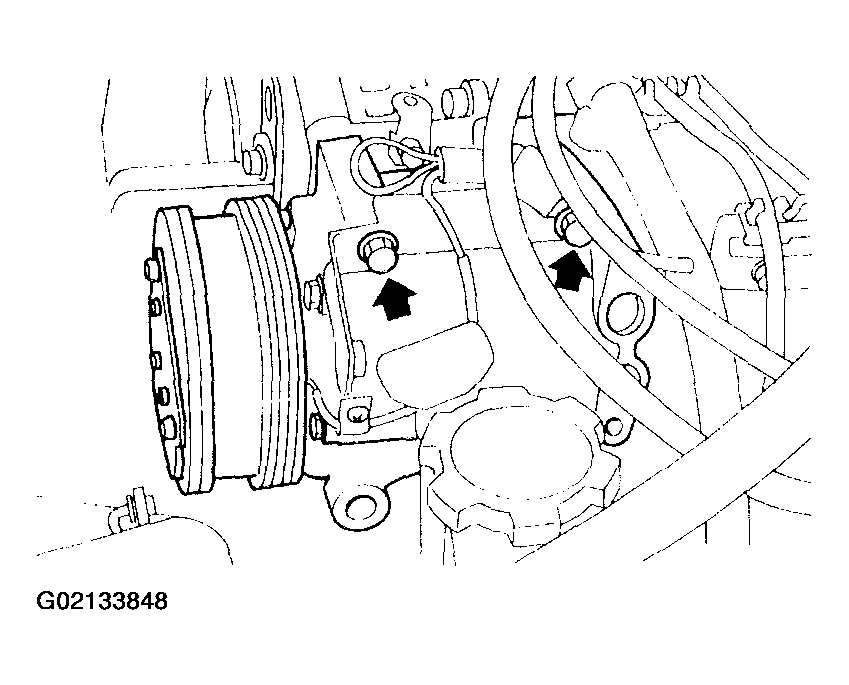

- Install compressor:
Install compressor on bracket.
- Connect compressor harness.
- Connect alternator harness.

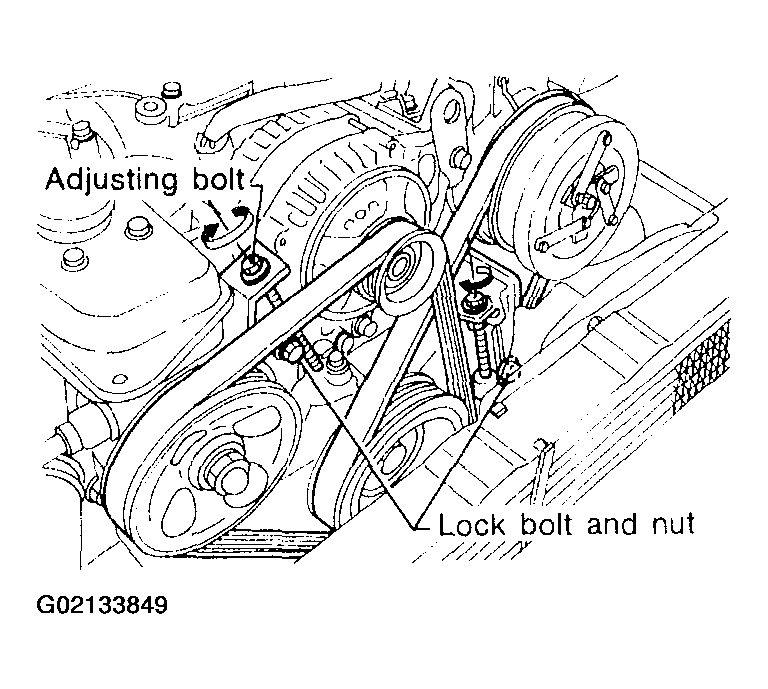

- Install compressor V-belt (Rear):
After adjusting belt tension, tighten tension pulley lock bolt securely.
- Install alternator V-belt:
After adjusting V-belt tension, tighten generator bracket lock bolt securely.

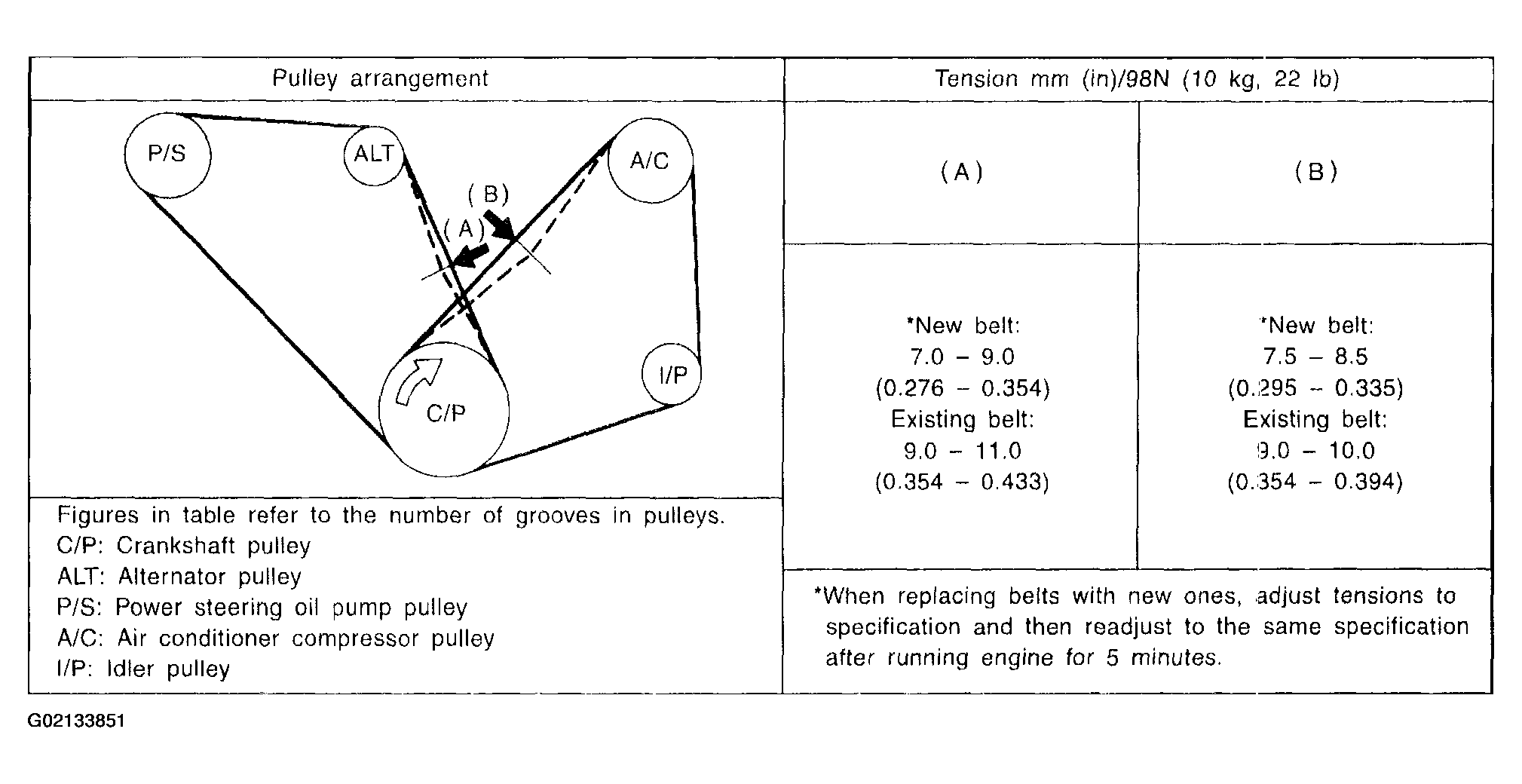

- Check drive belt tension and adjust it if necessary by changing alternator position and/or idler pulley position.CAUTION:
- Ensure that the V-belt is aligned correctly. If it is not, check for loose bolts.
- The V-belt should not be too tight or too loose. A belt which is too tight may break bearing or cause gas to leak from the shaft seal. A belt which is too loose slips, thereby causing the belt cut.
- After completing the compressor installation and testing the system operation, check and adjust the tension of both V-belts again.

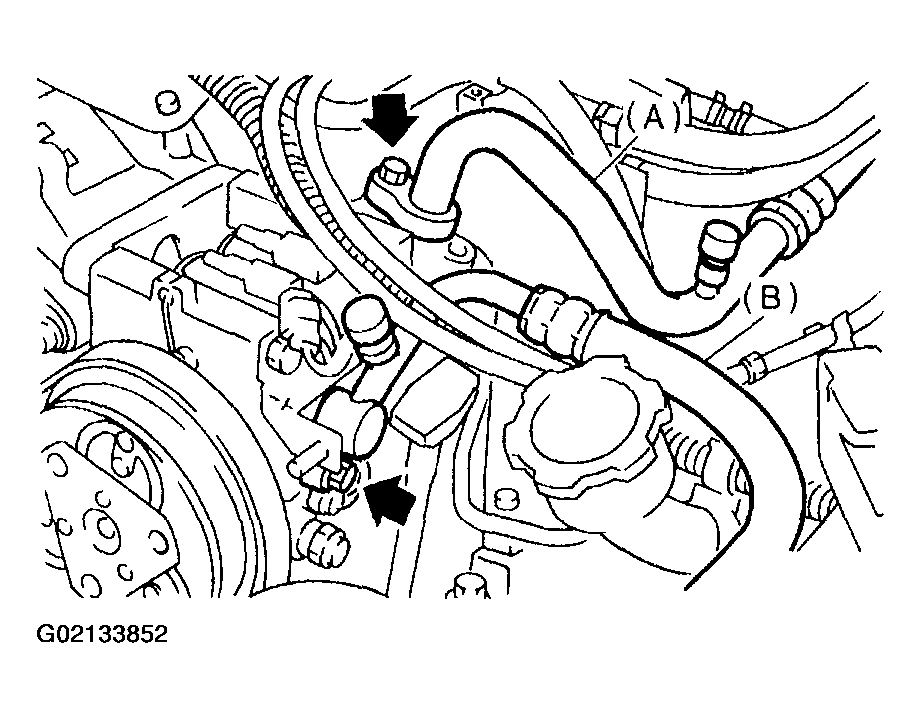

- Install high-pressure hose (B) (Flexible hose Pd) and low-pressure hose (A) (Flexible hose Ps): Connect high-pressure hose (B) and low-pressure hose (A) with compressor.CAUTION: Be sure to apply compressor oil to the periphery of O-ring.
- Install belt cover.CAUTION:
- After installing belt cover, make sure it is not misaligned or twisted.
- After installing belt cover, check the clearance between pulley and belt cover.
- Connect ground cable to negative terminal of battery.
- Charging refrigerant. See OPERATION , Refrigerant Charging Procedure.
