Control Unit: Adjustment

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate temperature control switch to "FULL COLD" and mode selector switch to "VENT" position and recirculation switch to "RECIRC" position.
  2. Install control cable to lever. While pushing outer cable, secure control cable with clip.

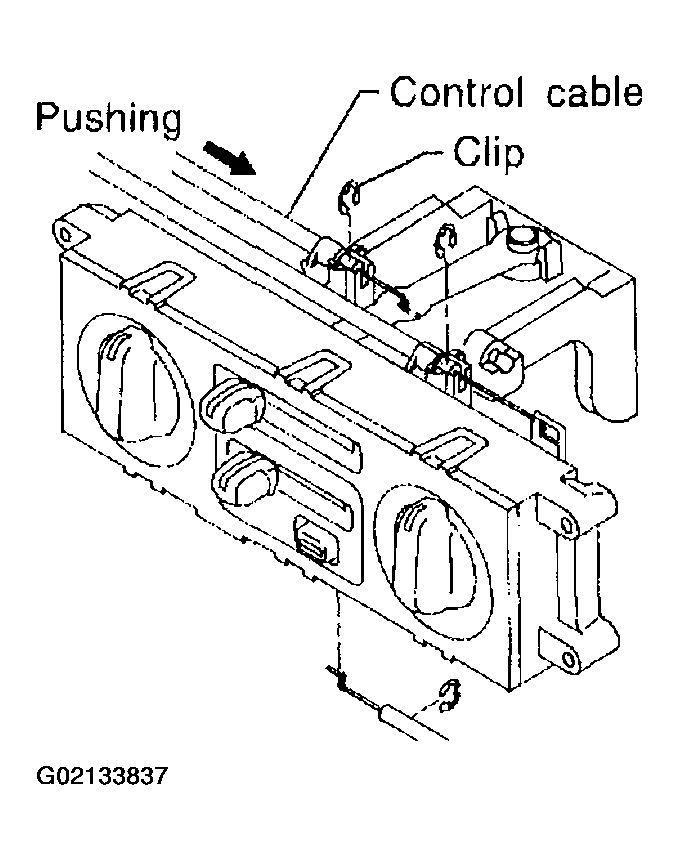

    Fig 1: Adjusting Temperature Control And Recirculation Control Cables
    G02133837
