Control Unit: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect GND cable from battery.
  2. Set temperature control switch to "FULL HOT" and mode selector switch to "DEF" position and recirculation switch to "FRESH" position.
  3. Disconnect temperature control cable and mode door control cable from heater unit then disconnect recirculation control cable from intake unit.
    NOTE: Do not attempt to move links during installation.

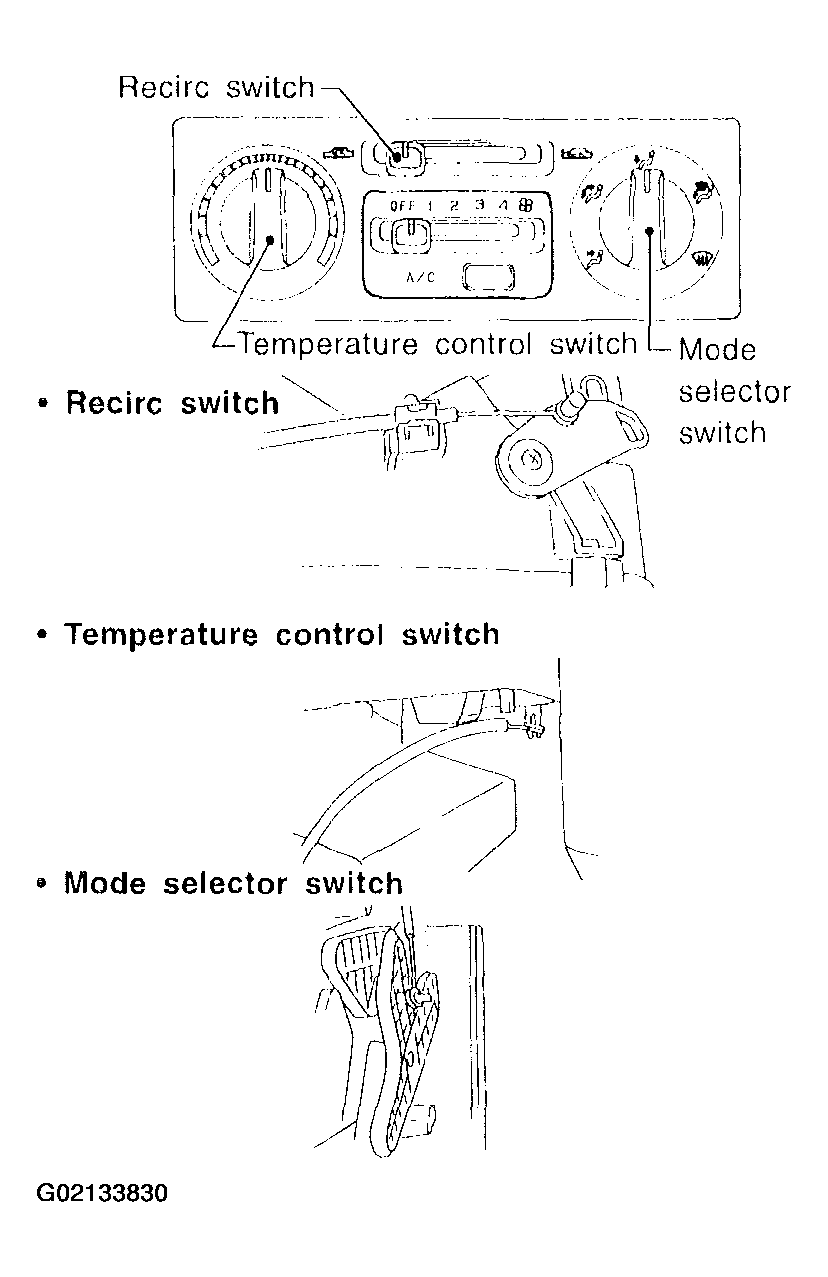

    Fig 1: Setting Up Temperature Control Panel For Removal
    G02133830
  4. Remove console box. See REMOVAL , Console Box.
  5. Remove center panel and then disconnect connector.
  6. Remove audio (radio).

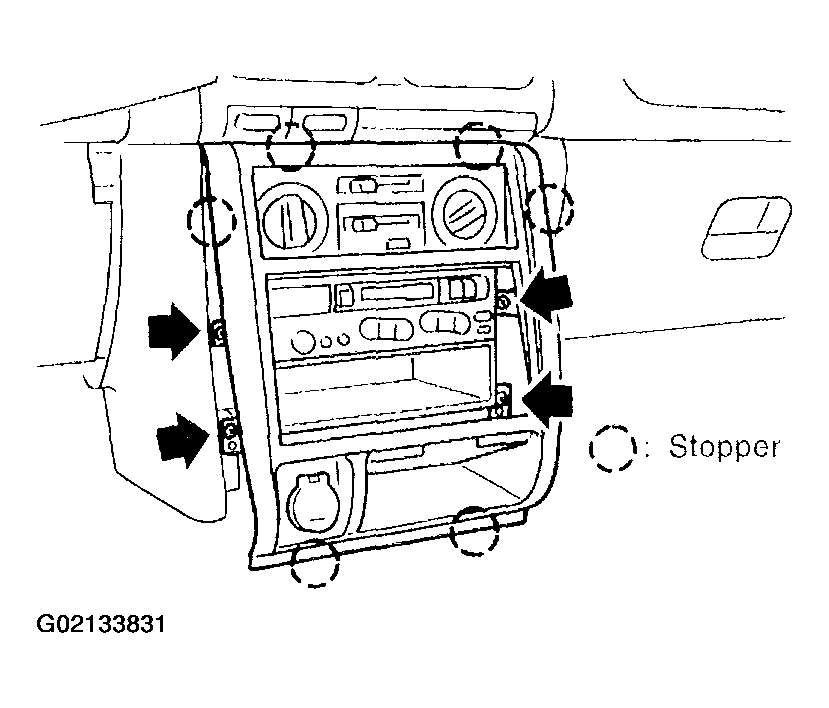

    Fig 2: Removing Center Panel & Disconnecting Connectors
    G02133831
  7. Remove control unit assembly from center console.

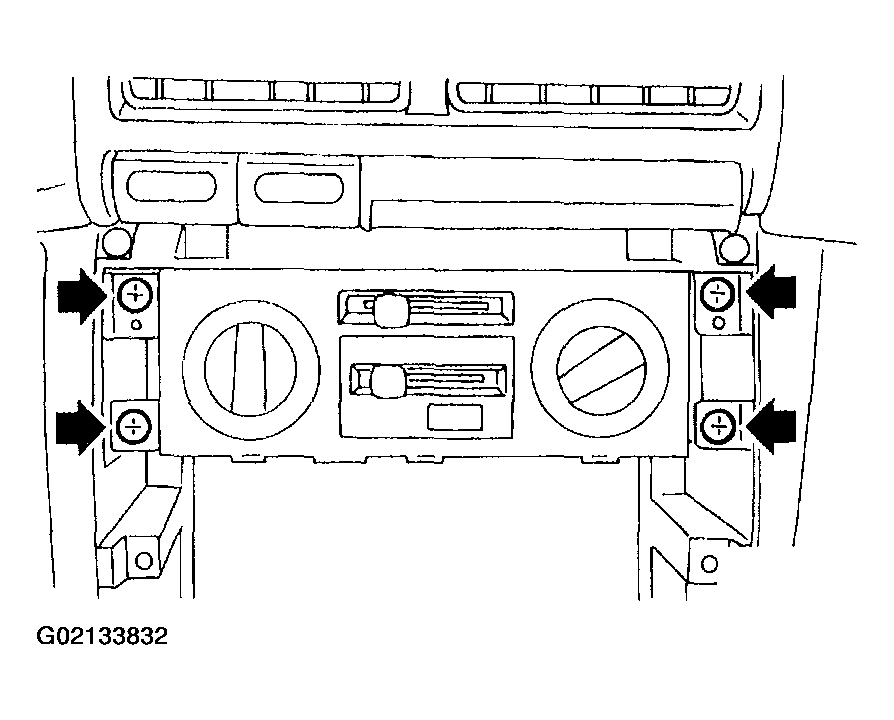

    Fig 3: Removing Control Unit Assembly From Center Console
    G02133832
