Performance Check

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

If various conditions caused to other air conditioning system, the characteristics revealed on manifold gauge reading are shown in the following.

As to the method of a performance test, refer to the item of "Performance Test".

Each shaded area on the following tables indicates a reading of the normal system when the temperature of outside air is 32.5°C (91°F).

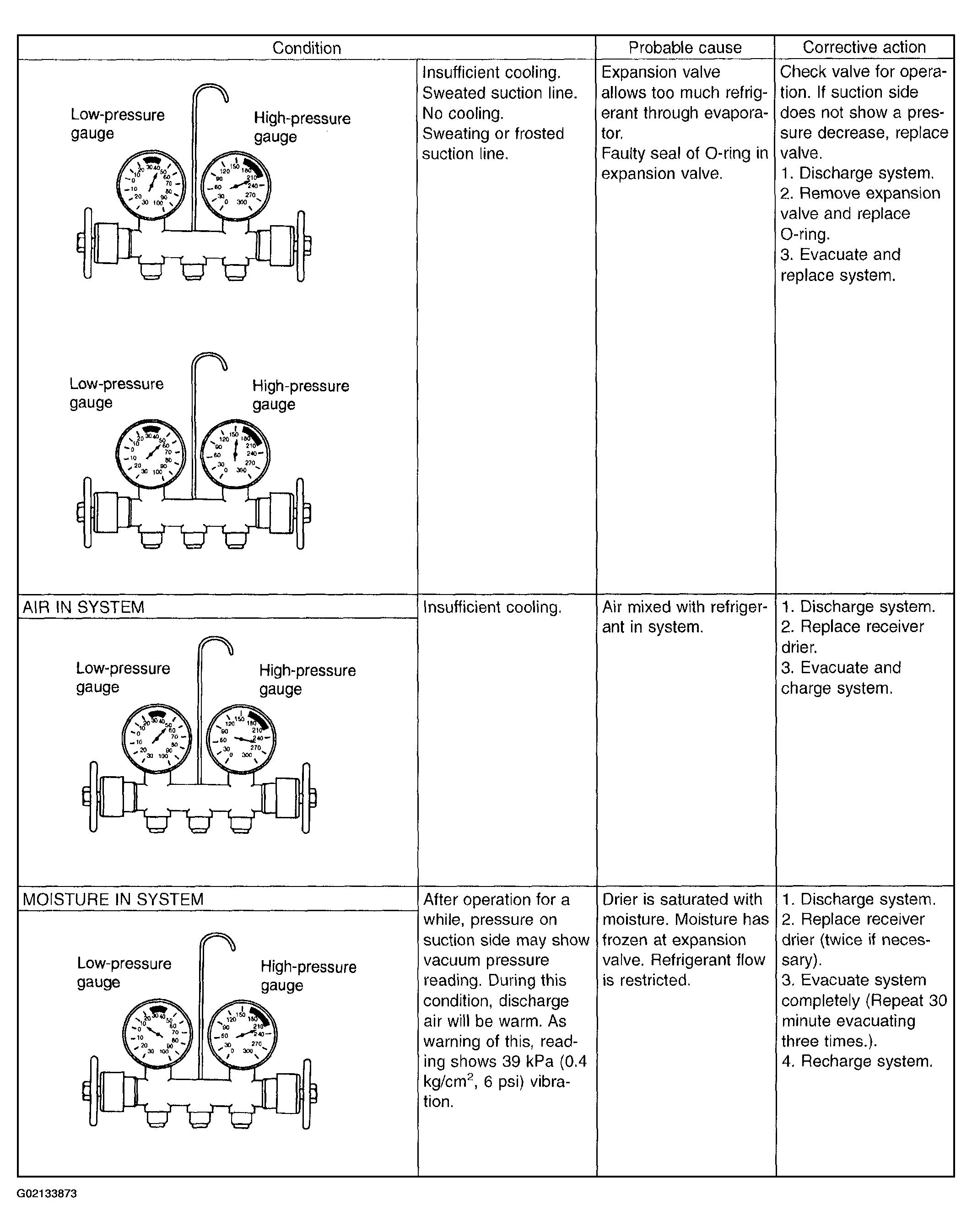

Fig 1: Checking Air Conditioning System Performance (1 Of 3)

Fig 2: Checking Air Conditioning System Performance (2 Of 3)

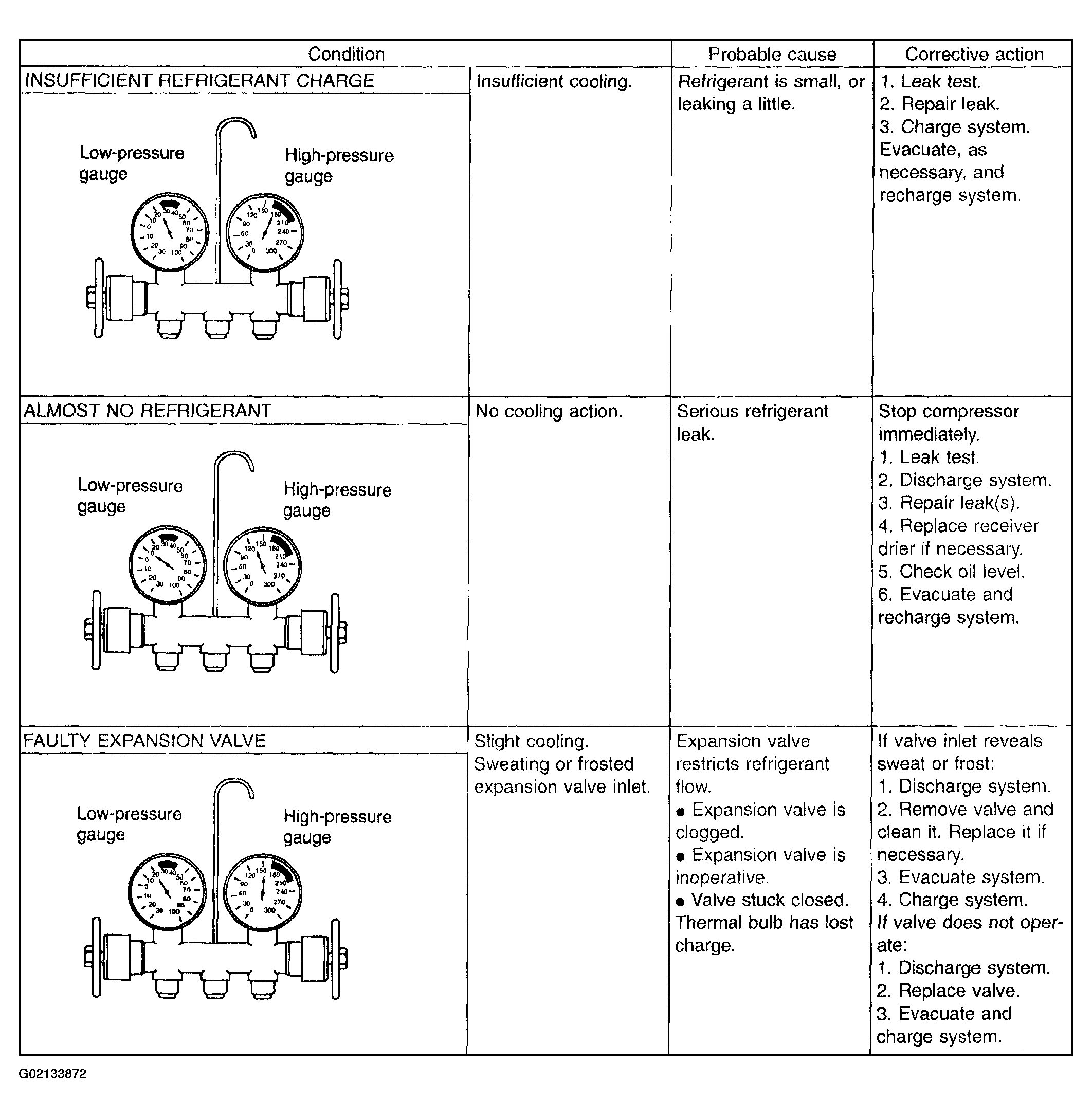

Fig 3: Checking Air Conditioning System Performance (3 Of 3)
