Stop Light System: Inspection

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. STOP LIGHT SWITCH

    Measure the stop light switch resistance.

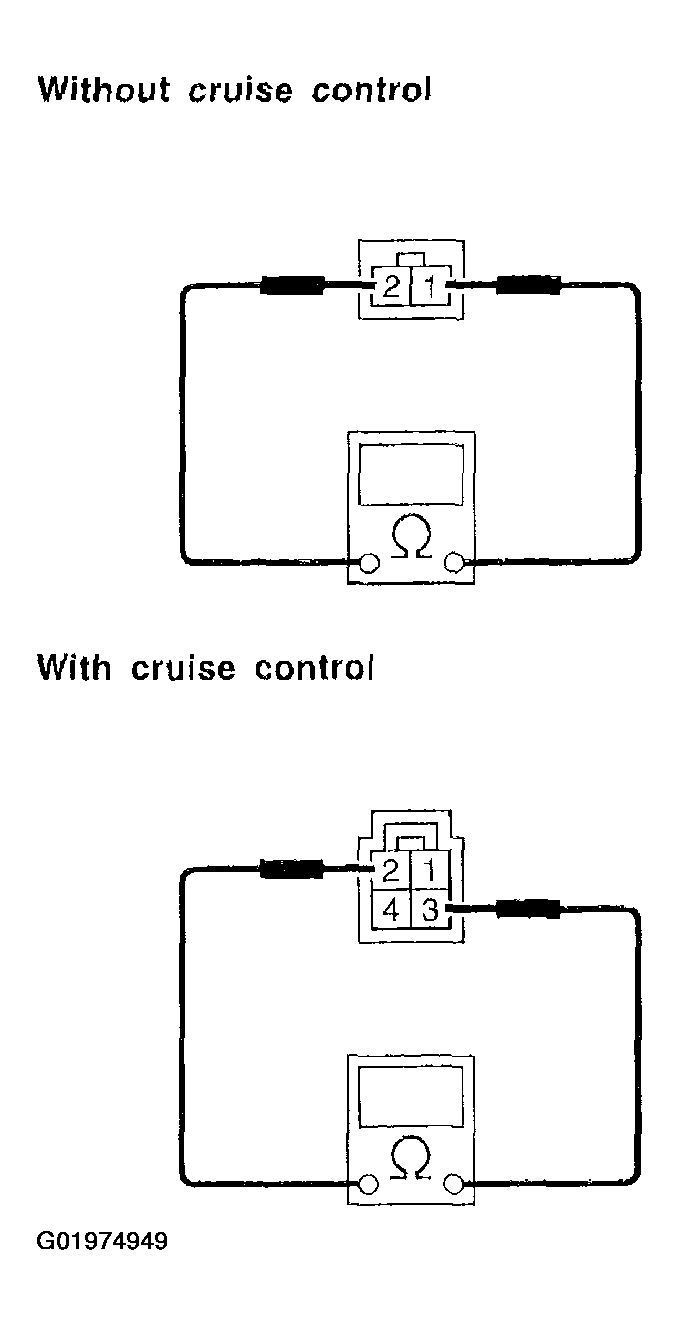

    Fig 1: Measuring Stop Light Switch Resistance
    G01974949Courtesy of SUBARU OF AMERICA, INC.
    Fig 2: Stop Light Switch Resistance Table
    G01974950Courtesy of SUBARU OF AMERICA, INC.
