Extension Case: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission assembly. < Ref. to REMOVAL , Automatic Transmission Assembly.>
Remove rear vehicle speed sensor.

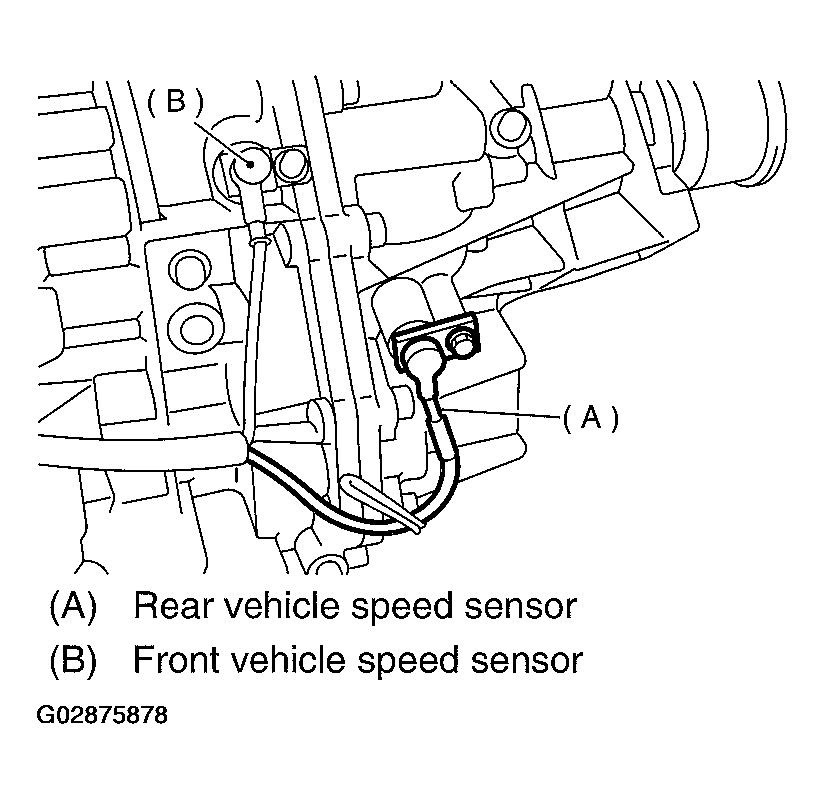

Fig 1: Removing Rear Vehicle Speed Sensor (MPT Model)
Courtesy of SUBARU OF AMERICA, INC.

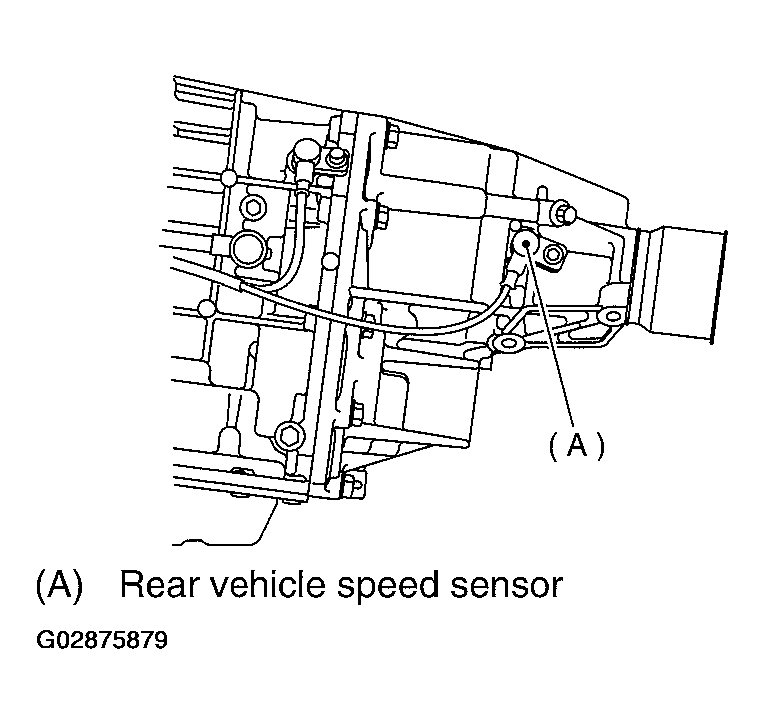

Fig 2: Removing Rear Vehicle Speed Sensor (VTD Model)
Courtesy of SUBARU OF AMERICA, INC.
Separate transmission case and extension case sections.

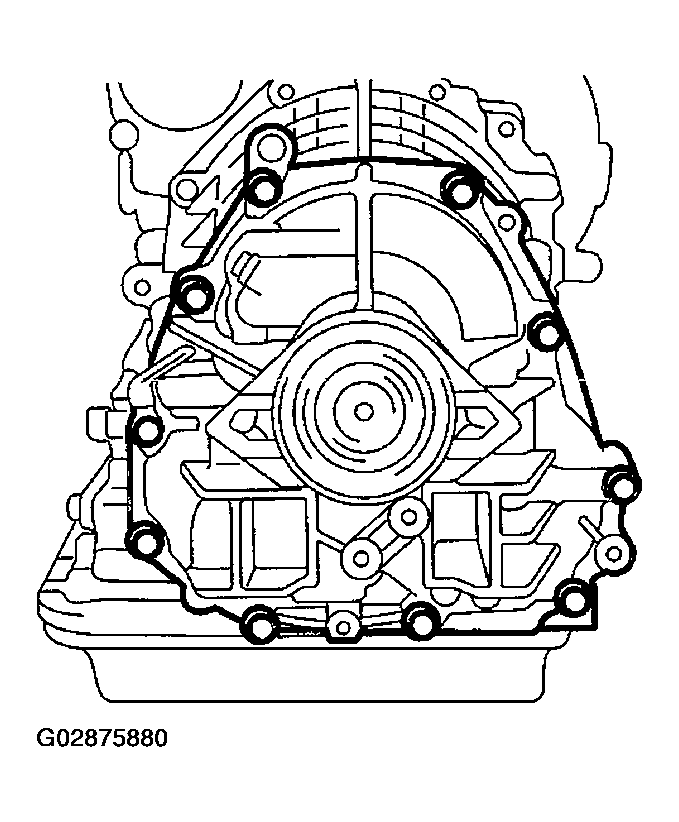

Fig 3: Separating Transmission Case & Extension Case Sections

Courtesy of SUBARU OF AMERICA, INC.
