MPT Model

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Set the select lever to "P" range.
Using a plastic hammer, install reduction driven gear assembly and new washer, and tighten new drive pinion lock nut.
1. Tightening torque: 100 N.m (10.2 kgf-m, 73.8 ft-lb)

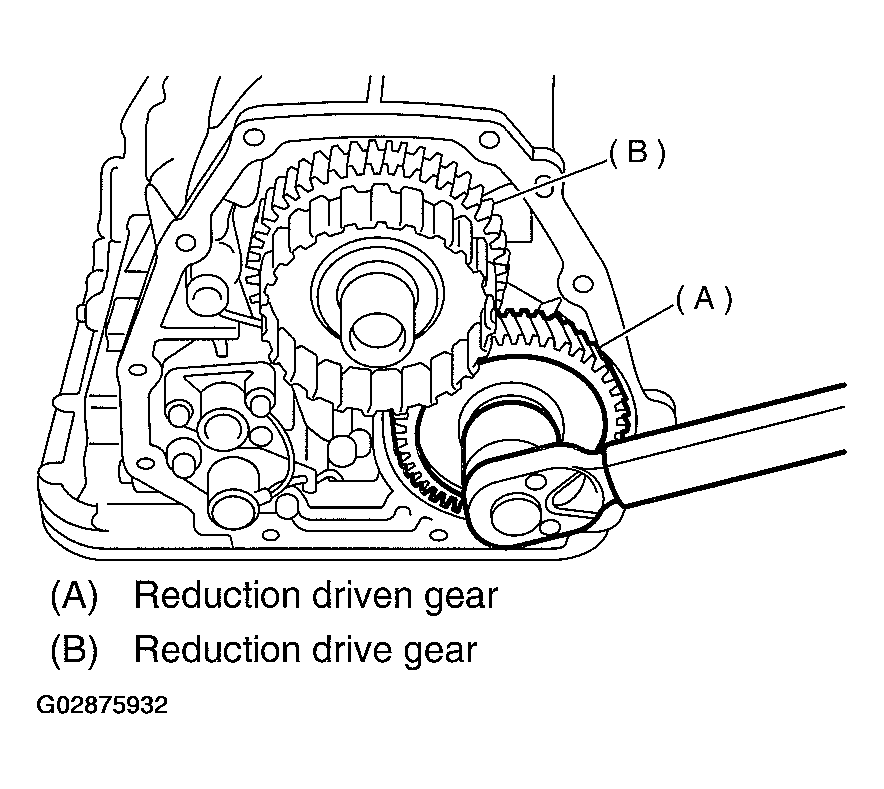

  Fig 1: Tightening New Drive Pinion Lock Nut
  Courtesy of SUBARU OF AMERICA, INC.
After tightening, stake the lock nut securely.
Combine the transmission case with the extension case, and install rear vehicle speed sensor.
< Ref. to INSTALLATION , Extension Case.>
Install the transmission assembly to vehicle.
< Ref. to INSTALLATION , Automatic Transmission Assembly.>
