Transmission Control Module (TCM): Installation

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission control module.
    1. Tightening torque:  25 N.m (23 kgf-m, 18.1 ft-lb)

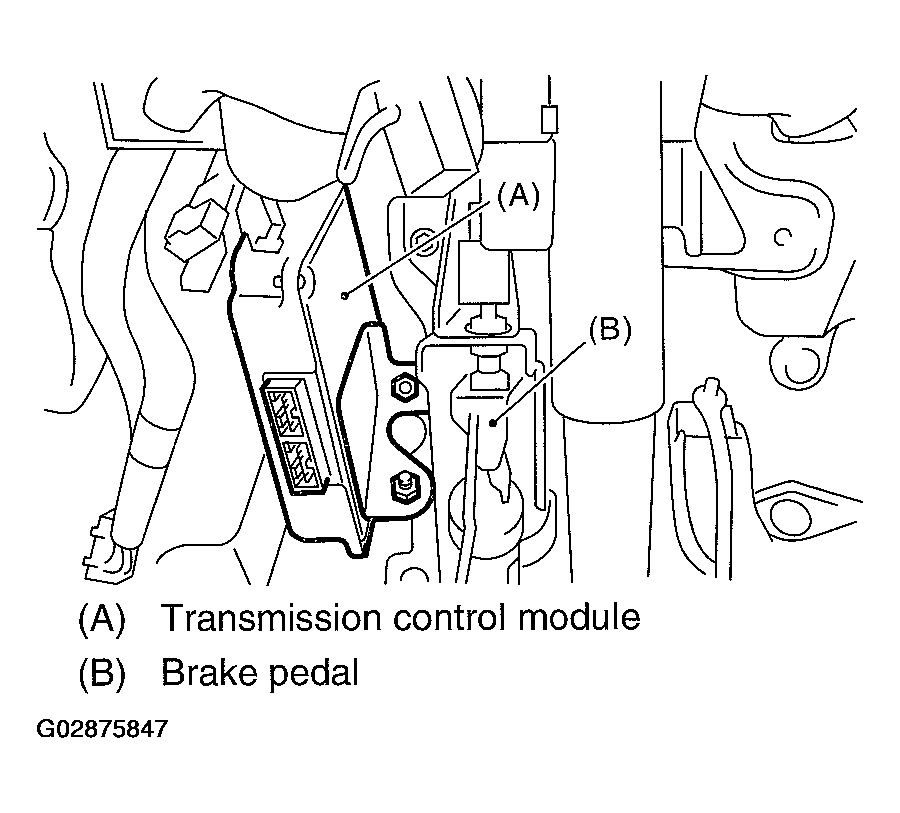

      Fig 1: Installing Transmission Control Module
      G02875847Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the connectors to transmission control module.
  3. Install in the reverse order of removal.
