Tilt Steering Column: Installation

  1. Set grommet to toe board.

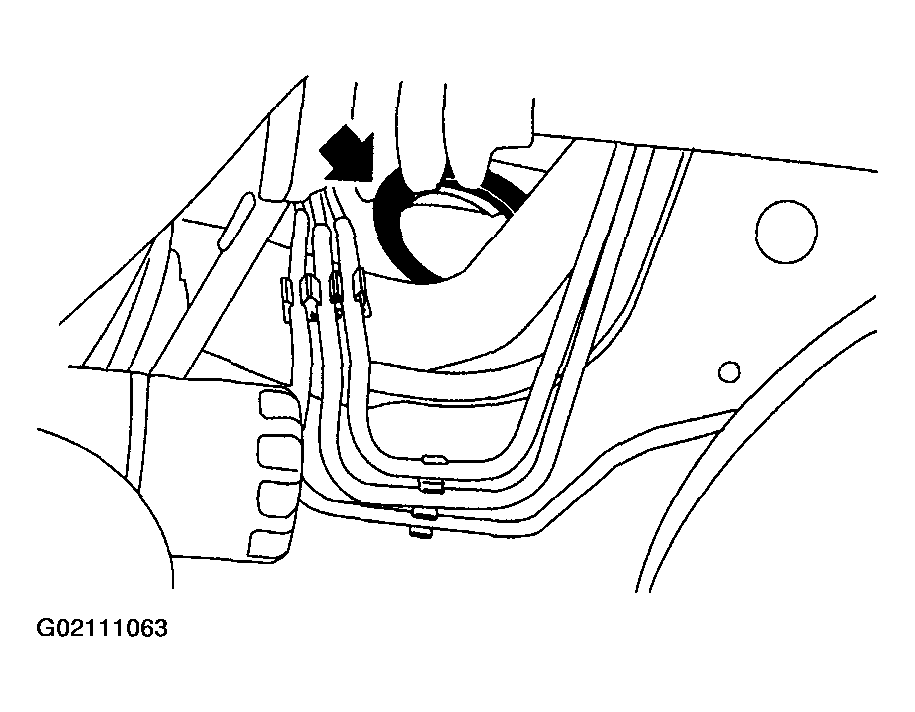

    Fig 1: Setting Grommet To Toe Board
    G02111063
  2. Insert end of steering shaft into toe board grommet.
  3. Tighten steering shaft mounting bolts under instrument panel.

    Tightening torque:

    1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)
  4. Connect all connectors under instrument panel.
  5. Connect airbag system connector at harness spool.
    NOTE: Make sure to apply double lock.
  6. Install lower column cover with tilt lever held in the lowered position.
  7. Install universal joint. See INSTALLATION  , Universal Joint.
  8. Align center of roll connector. See AIR BAG RESTRAINT SYSTEMS .
    CAUTION: Ensure that front wheels are set in straight forward direction.
  9. Install steering wheel. See INSTALLATION  , Steering Wheel.

    Set steering wheel to neutral and install it onto steering shaft.

    CAUTION: Insert roll connector guide pin into guide hole on lower end of surface of steering wheel to prevent damage. Draw out airbag system connector, horn connector and cruise control connectors from guide hole of steering wheel lower end.
  10. Install airbag module to steering wheel.
    WARNING: Always refer to "Air Bag System" before performing the service operation. See AIR BAG RESTRAINT SYSTEMS .
