Rear Suspension: Description

For rear suspension description and component location, see Fig 1 .

For shock absorber description and component location, see Fig 2 .

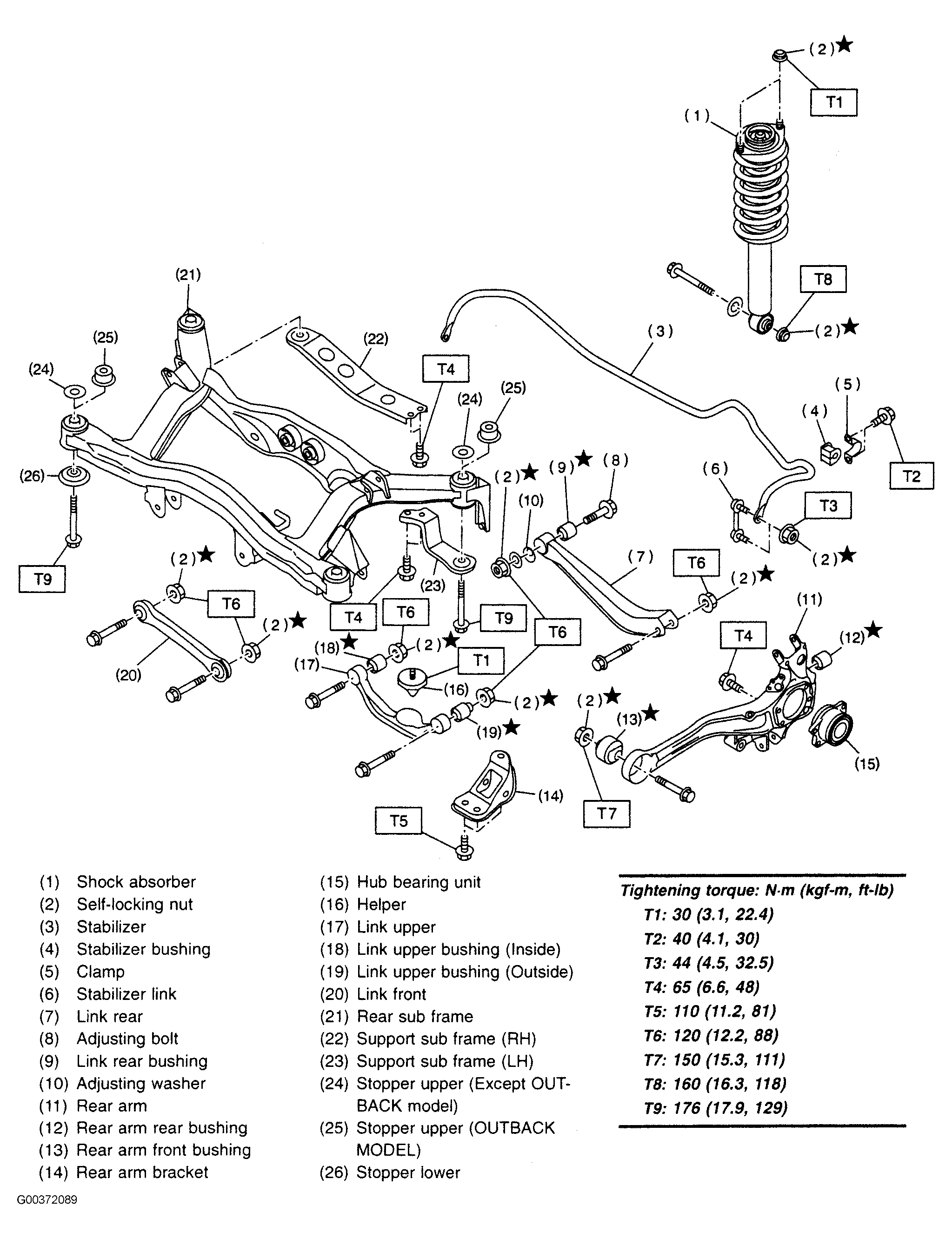

Fig 1: Rear Suspension Description & Component Location

Courtesy of SUBARU OF AMERICA, INC.

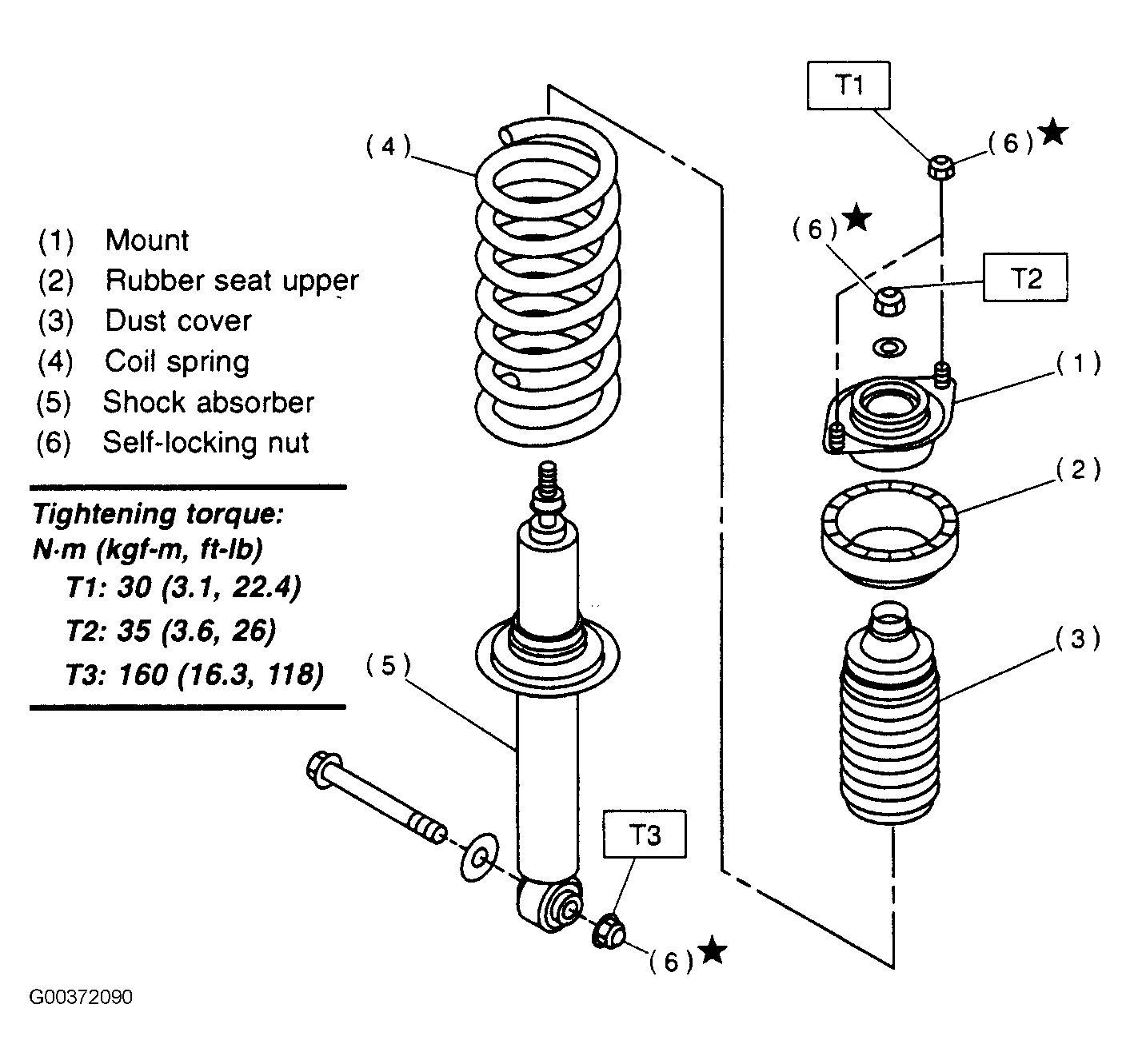

Fig 2: Rear Absorber Description & Location

Courtesy of SUBARU OF AMERICA, INC.
