Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Specifications & Procedures >> General Description >> Preparation Tool >> Special Tools

Special Tools

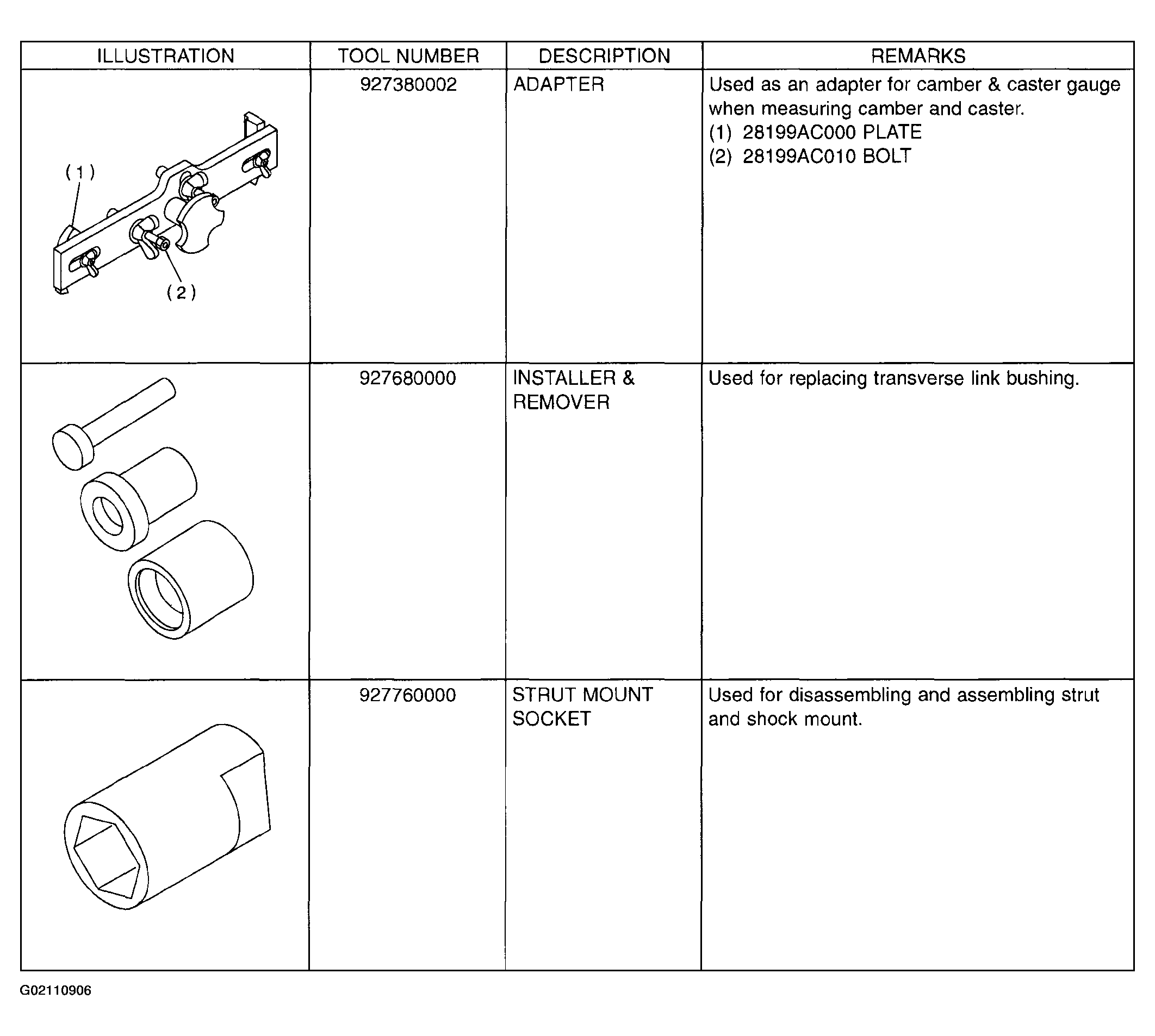

Fig 1: Identifying Special Tools (1 Of 3)
G02110906Courtesy of SUBARU OF AMERICA, INC.

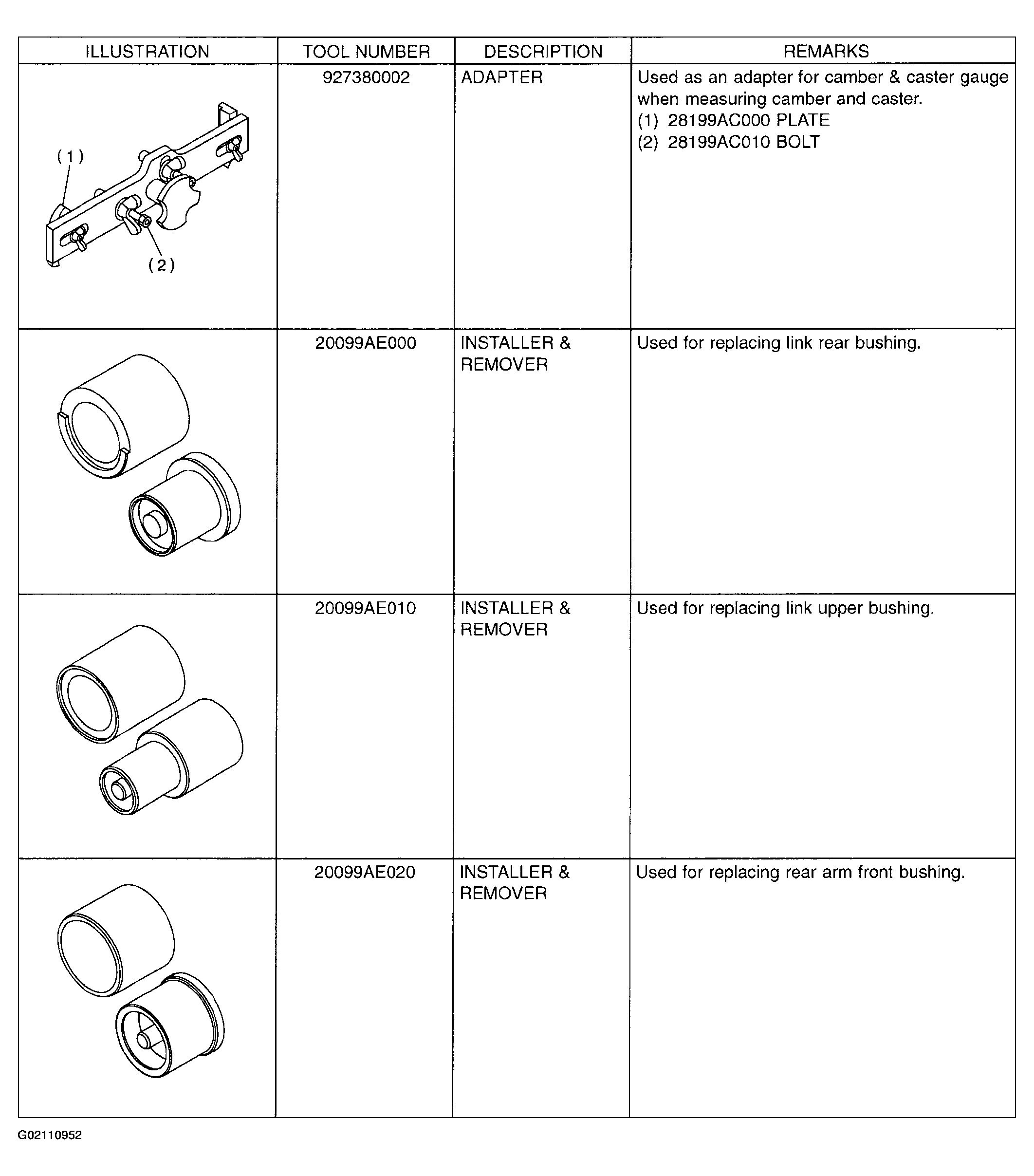

Fig 2: Identifying Special Tools (2 Of 3)
G02110952Courtesy of SUBARU OF AMERICA, INC.

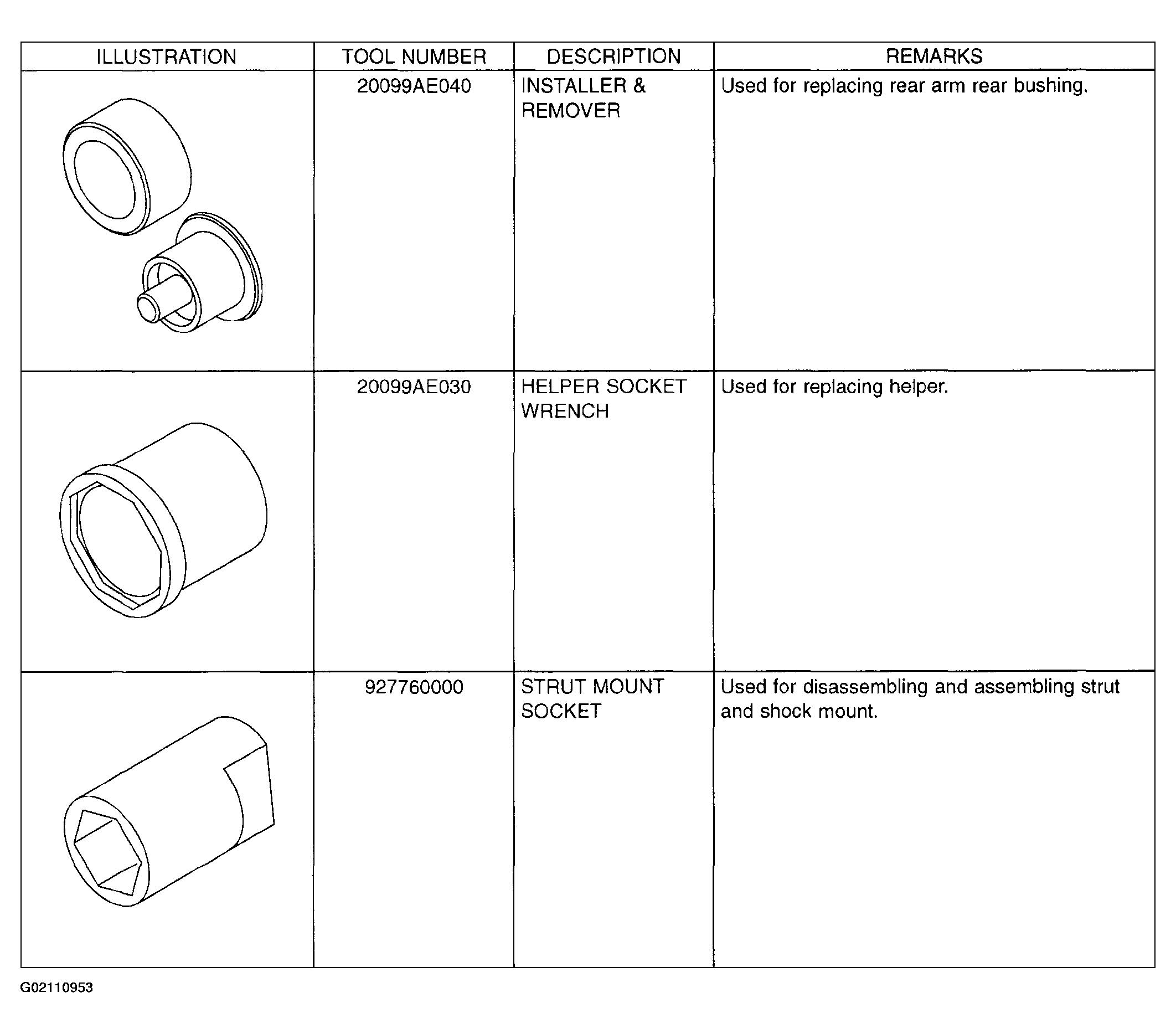

Fig 3: Identifying Special Tools (3 Of 3)
G02110953Courtesy of SUBARU OF AMERICA, INC.
