Front Differential

Park vehicle on level surface with engine off. Remove Yellow handled dipstick located on top of differential and clean with cloth. See Fig 1 . Check fluid level. Level should be between "C" and "B" marks. Add fluid if necessary.

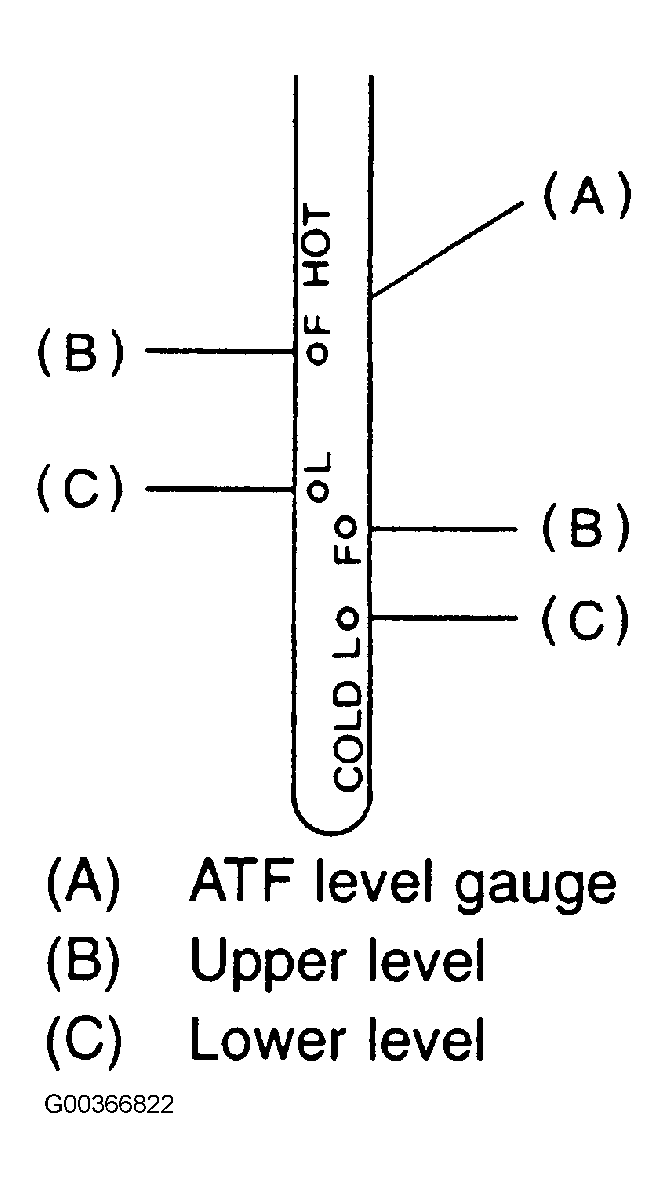

Fig 1: Checking Level Of The ATF

Courtesy of SUBARU OF AMERICA, INC.
