Code 11: Engine Speed Signal: Trouble Symptom

No lock-up (after engine warm-up).
AT OIL TEMP warning remains on when vehicle speed is "0".
2.5 L ENGINE MODEL

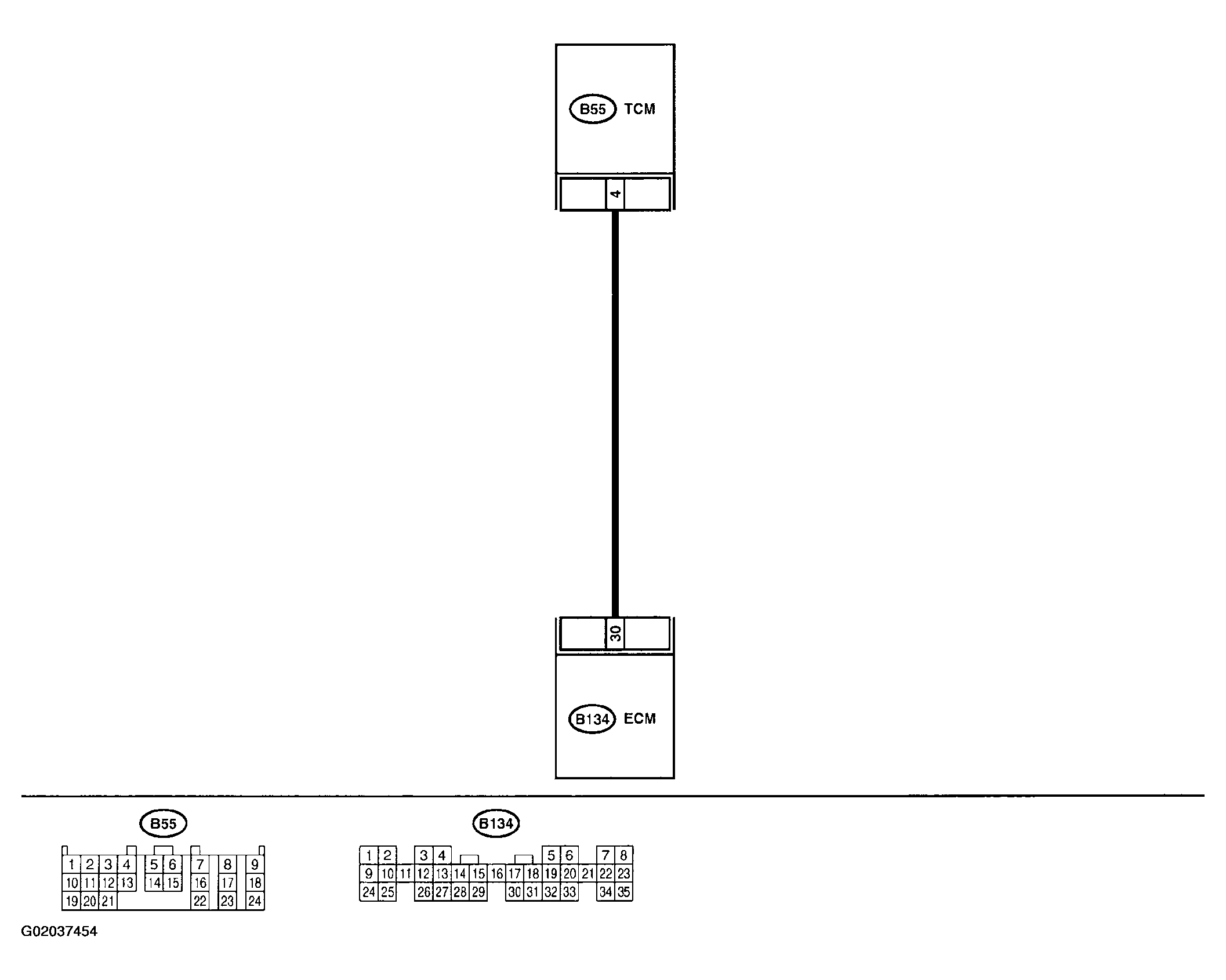

Fig 1: Trouble Code 11 - Engine Speed Signal Wiring Diagram (2.5 L)
3.0 L ENGINE MODEL

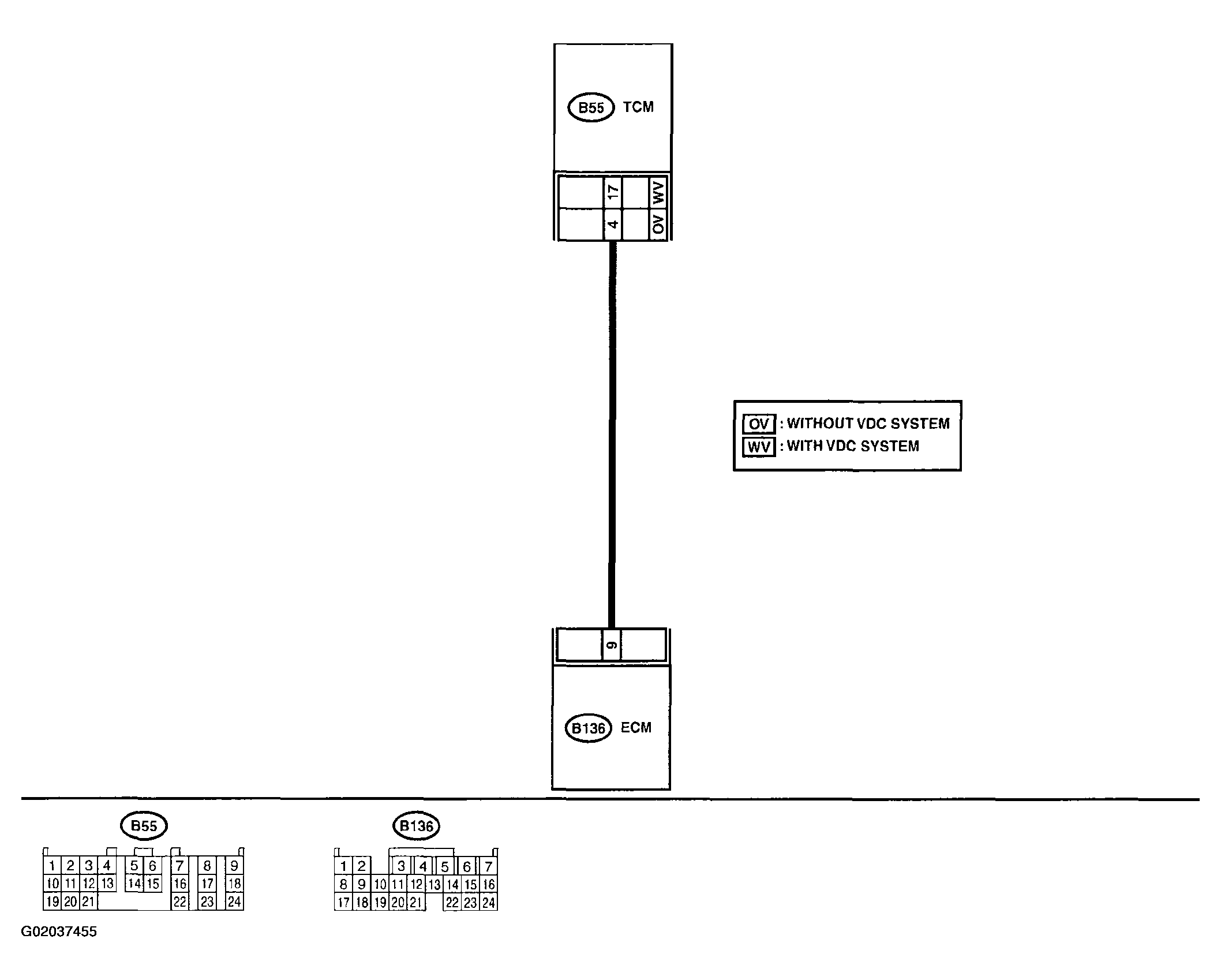

Fig 2: Trouble Code 11 - Engine Speed Signal Wiring Diagram (3.0 L)

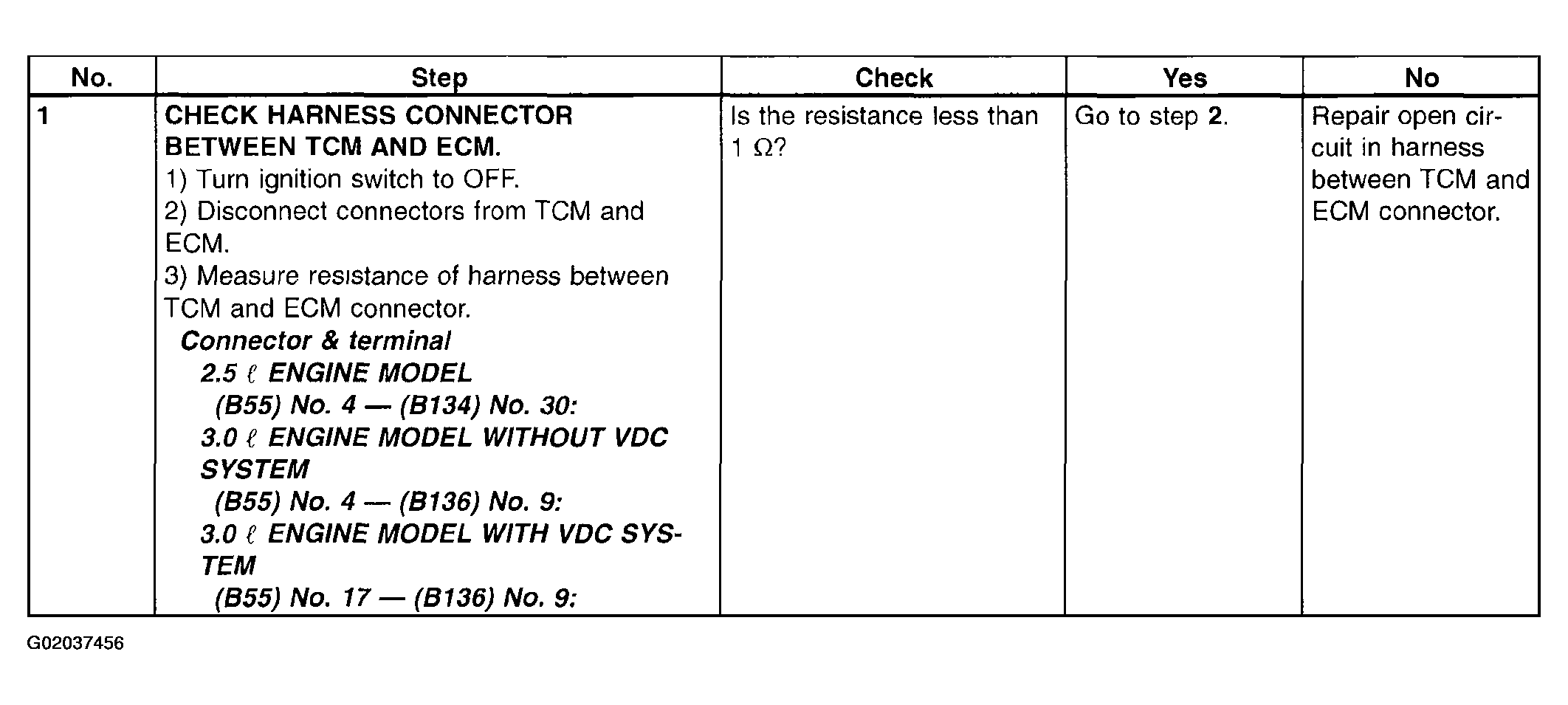

Fig 3: Trouble Code 11 - Diagnostic Chart (1 Of 2)

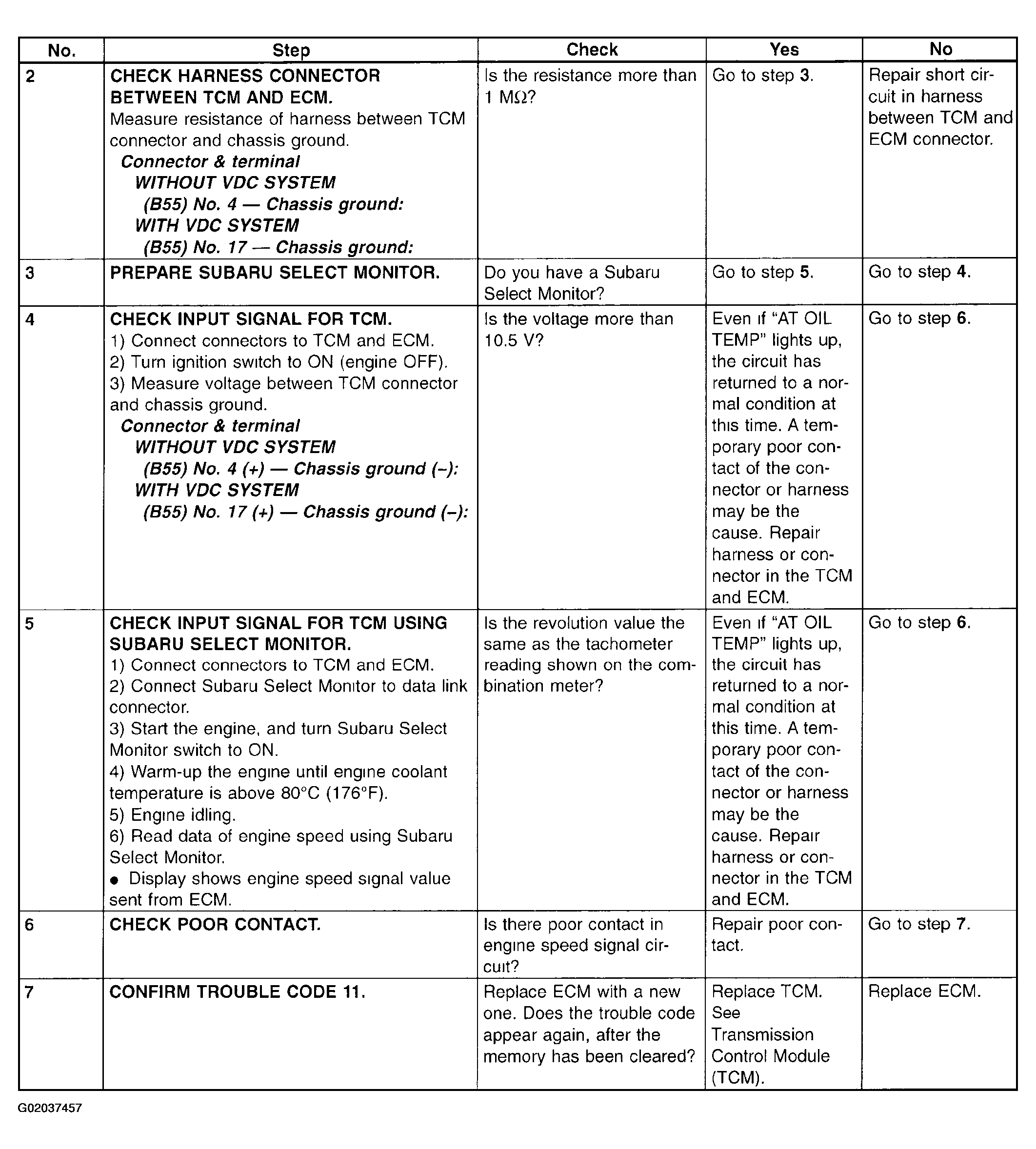

Fig 4: Trouble Code 11 - Diagnostic Chart (2 Of 2)
