Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnostics >> Symptom Related Diagnostic >> Inspection

Symptom Related Diagnostic: Inspection

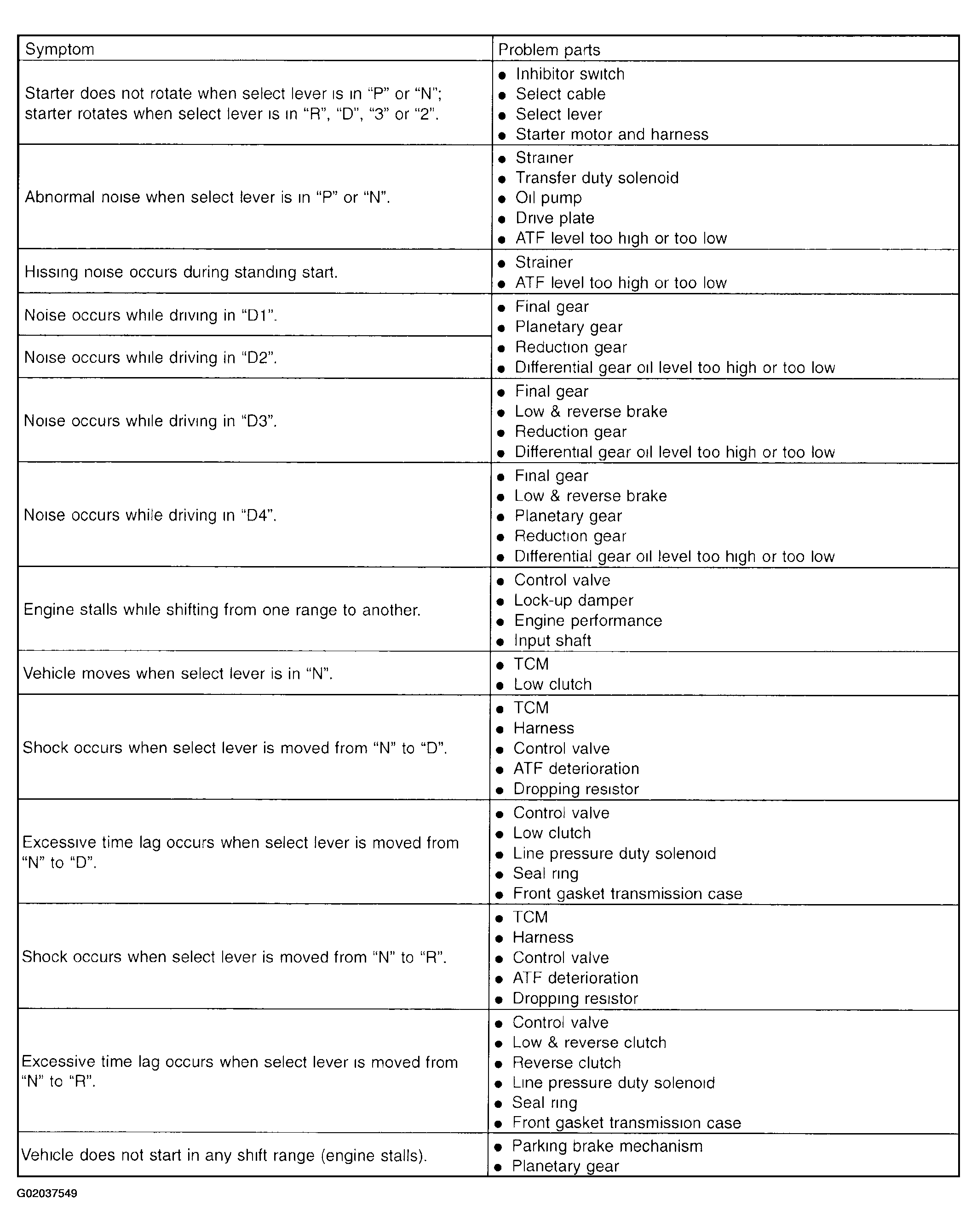

Fig 1: Symptom Related - Diagnostic Chart (1 Of 5)
G02037549

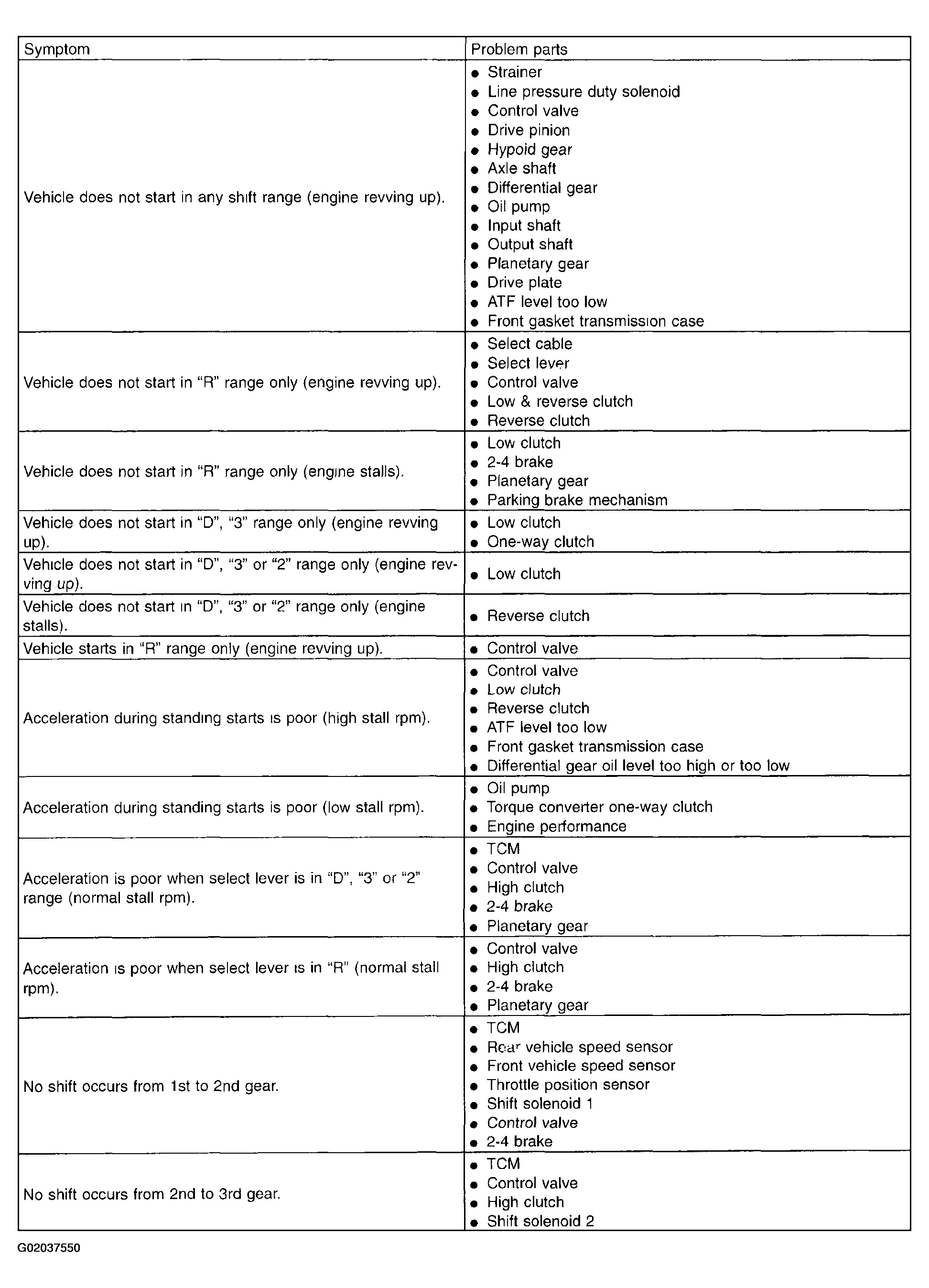

Fig 2: Symptom Related - Diagnostic Chart (2 Of 5)
G02037550

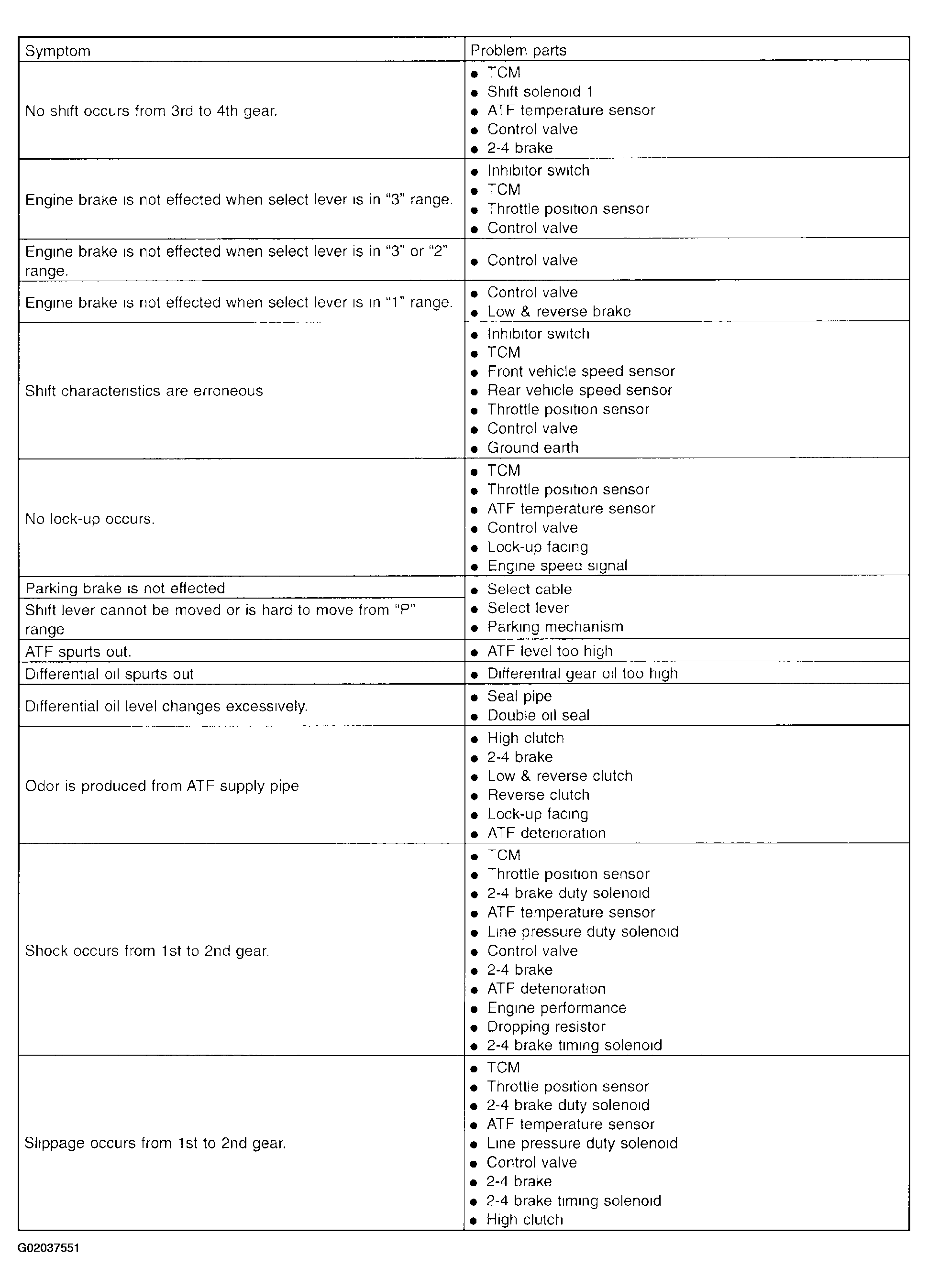

Fig 3: Symptom Related - Diagnostic Chart (3 Of 5)
G02037551

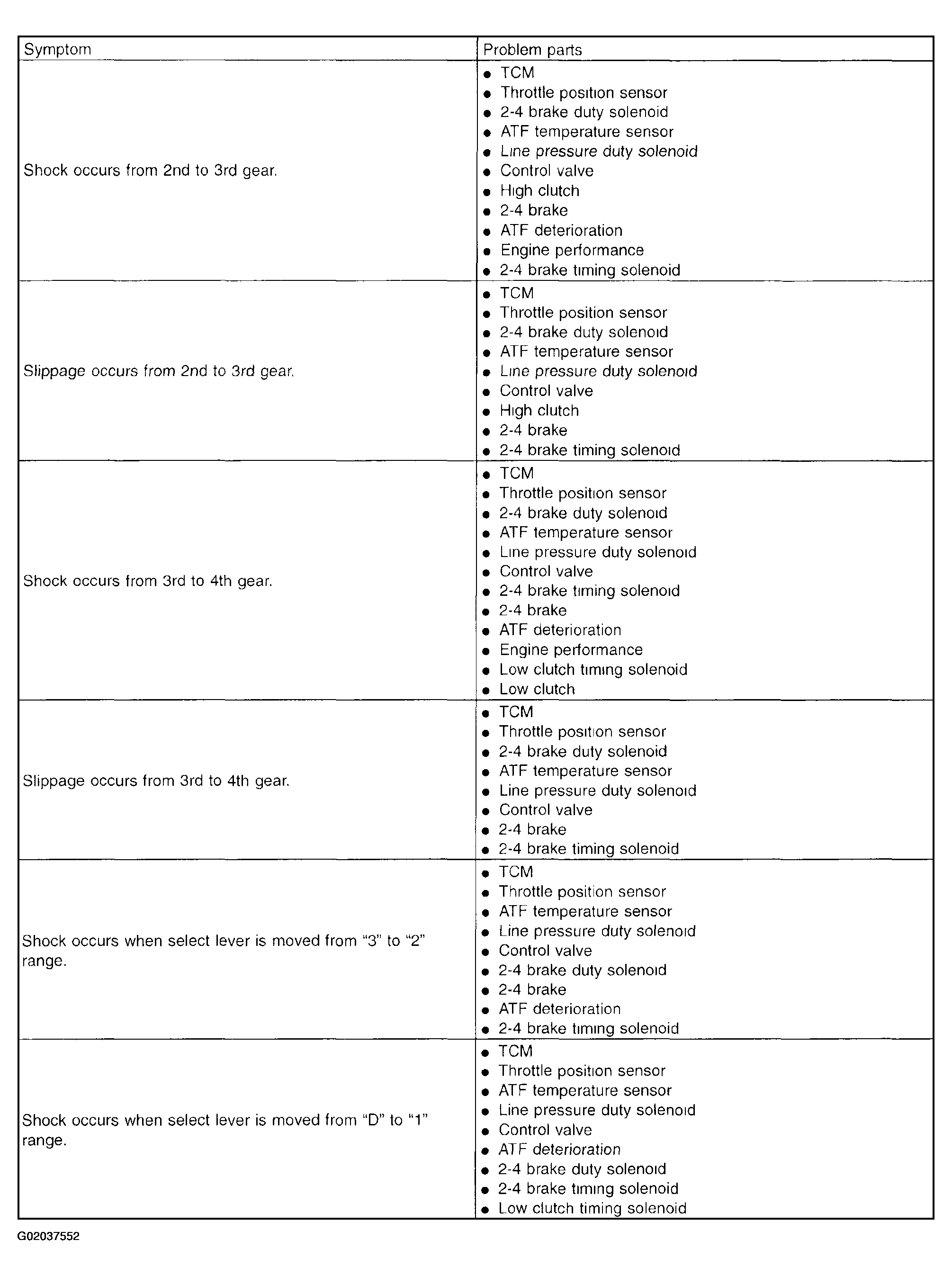

Fig 4: Symptom Related - Diagnostic Chart (4 Of 5)
G02037552

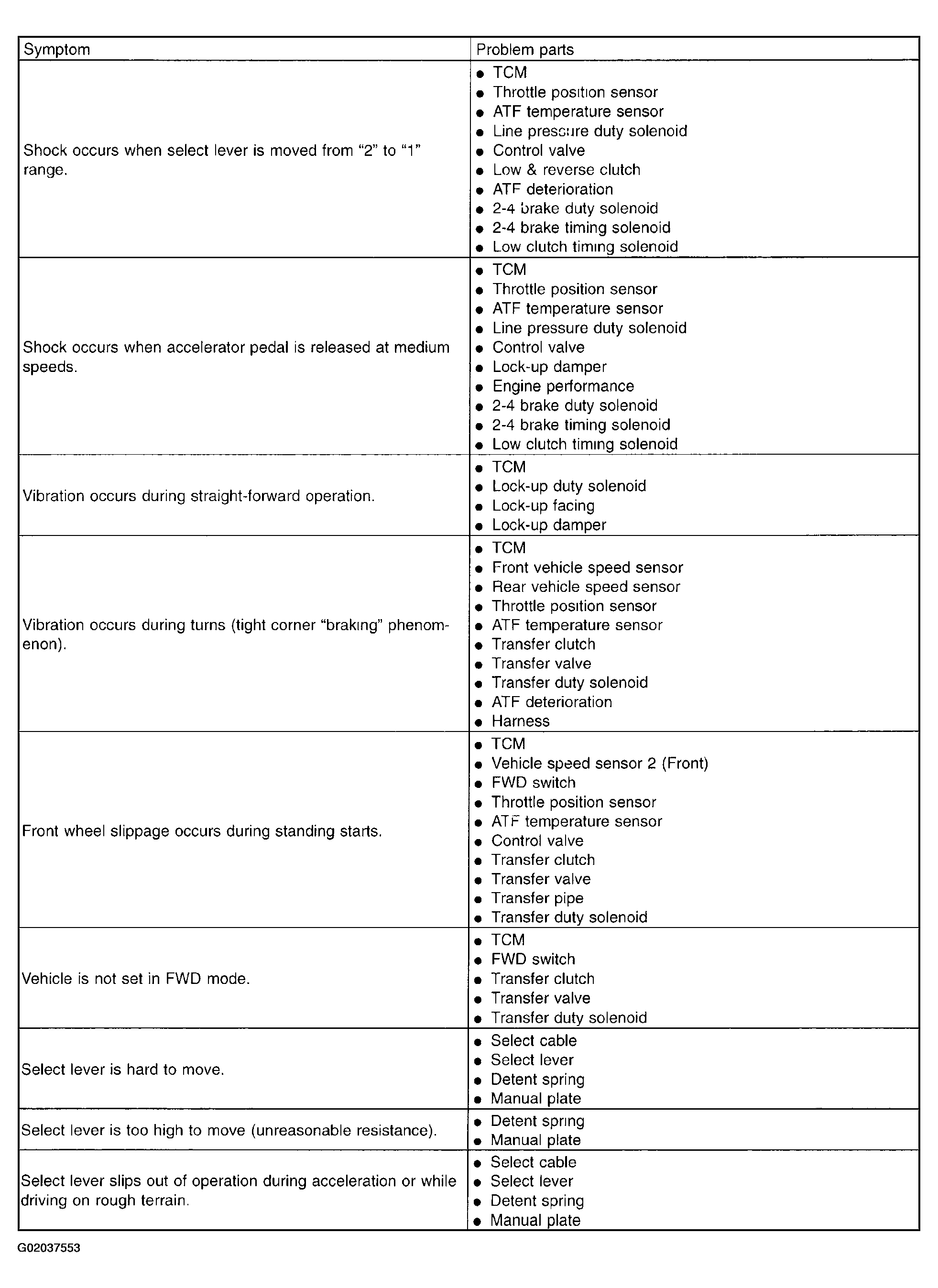

Fig 5: Symptom Related - Diagnostic Chart (5 Of 5)
G02037553
