Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnostics >> Transmission Control Module (TCM) I/O Signal >> Electrical Specification >> With VDC System

With VDC System

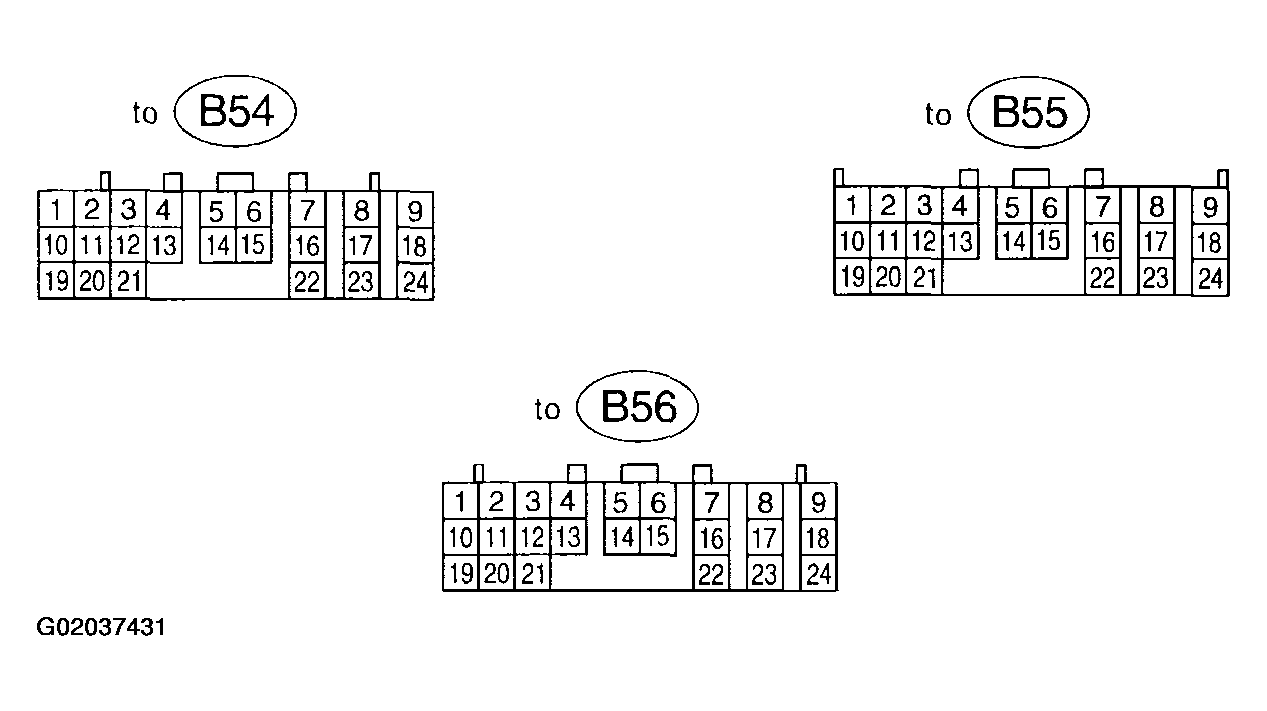

Fig 1: Transmission Control Module (TCM) - I/O Signal (1 Of 4)
G02037431

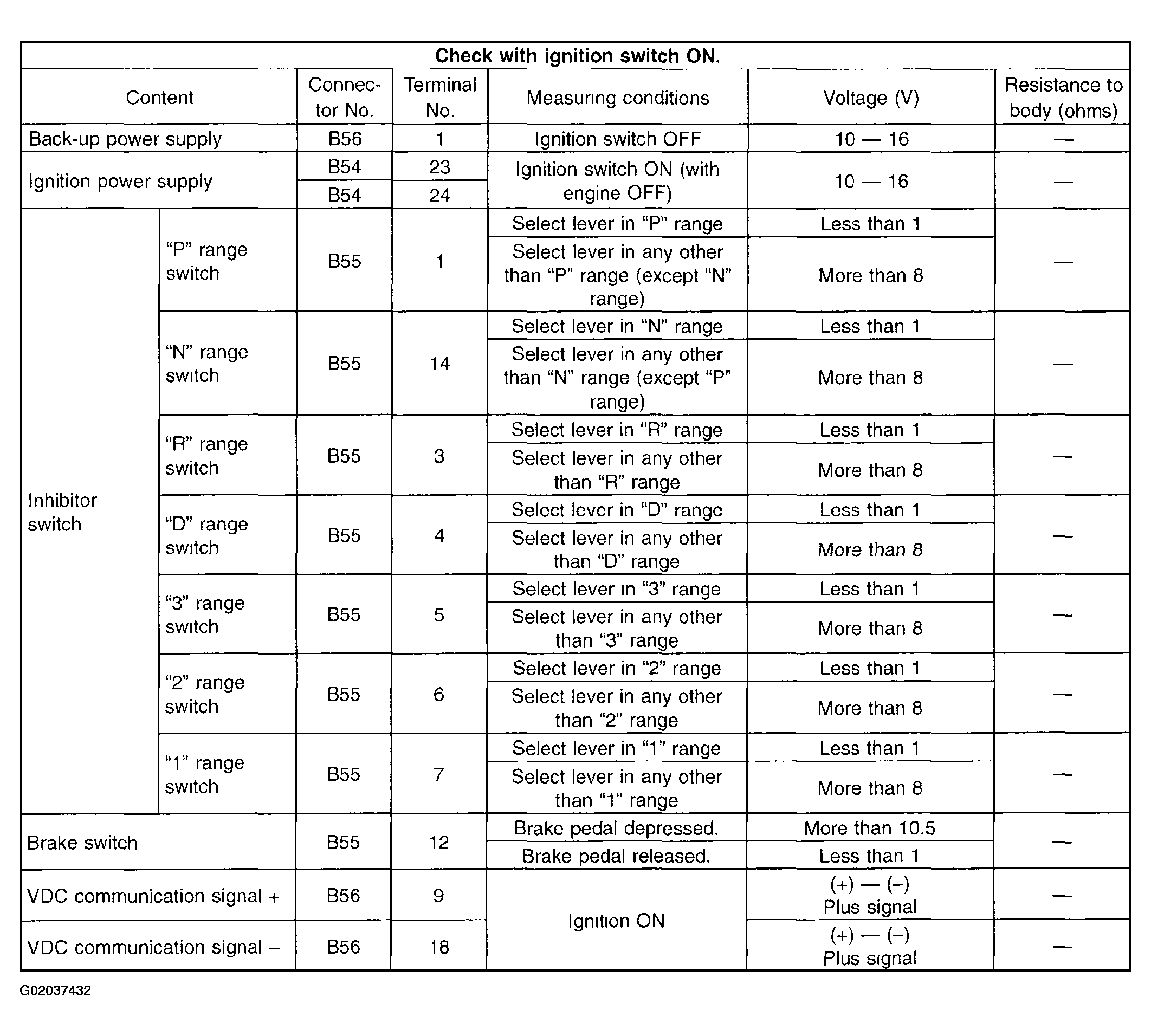

Fig 2: Transmission Control Module (TCM) - I/O Signal (2 Of 3)
G02037432

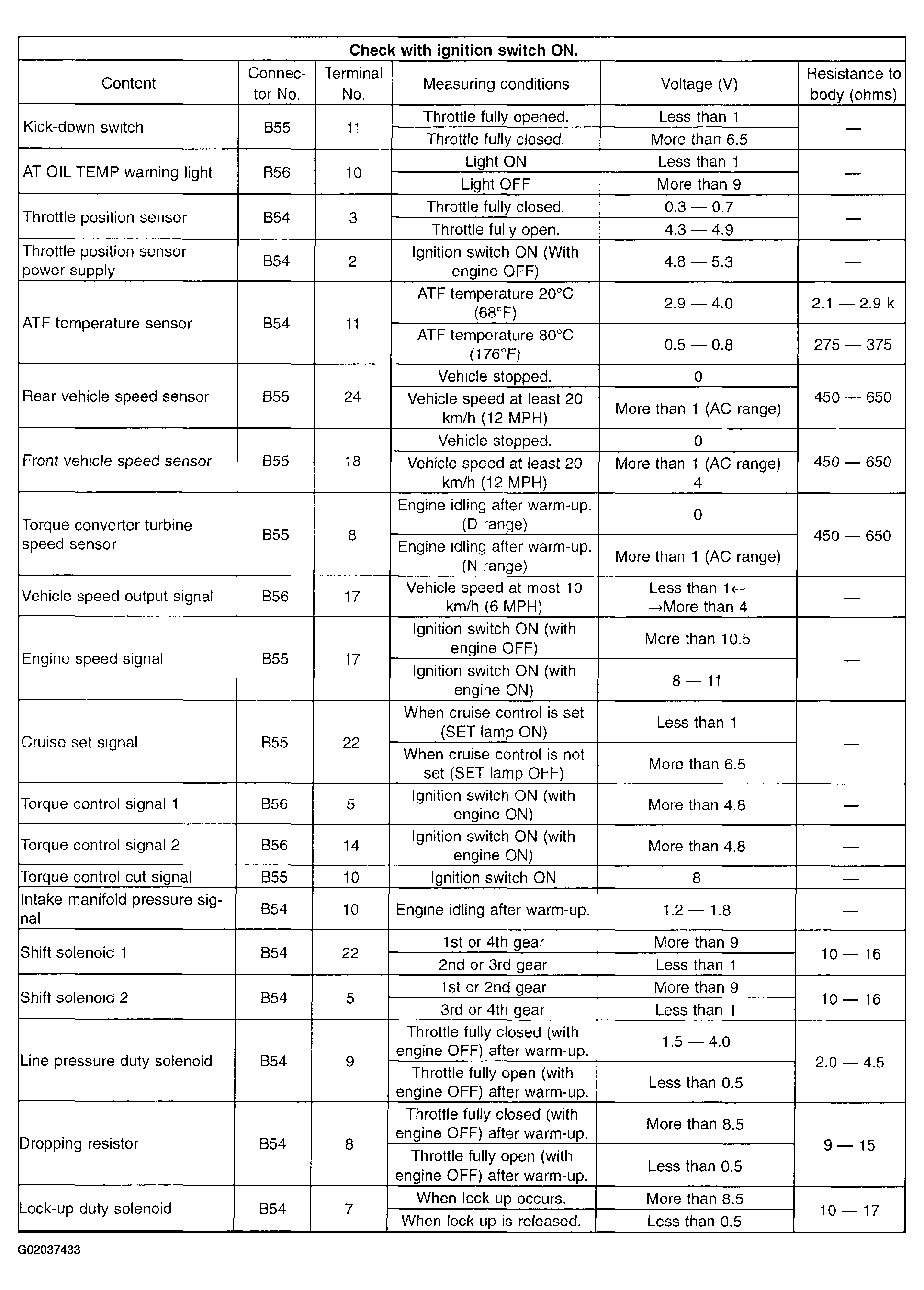

Fig 3: Transmission Control Module (TCM) - I/O Signal (3 Of 4)
G02037433

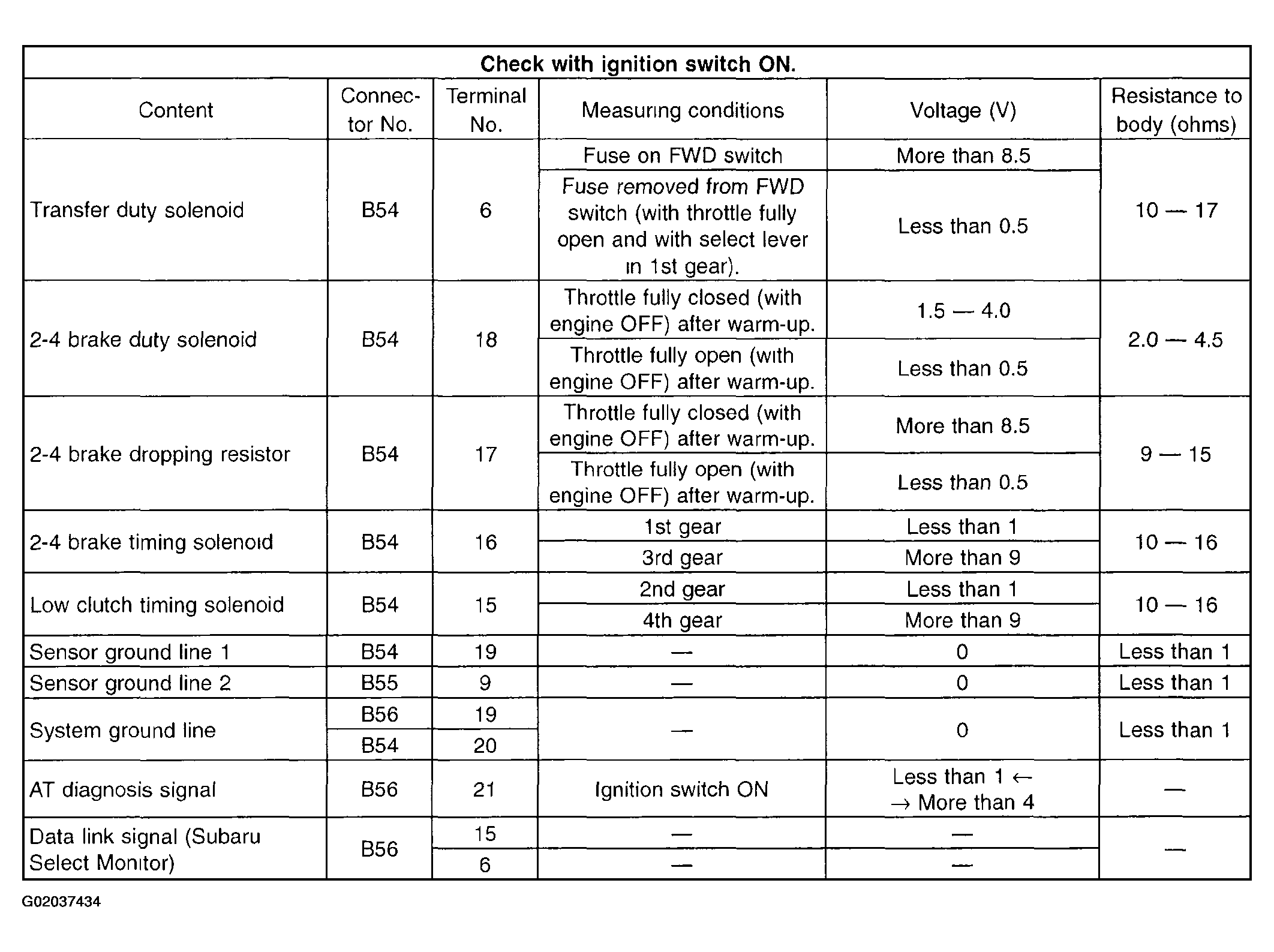

Fig 4: Transmission Control Module (TCM) - I/O Signal (4 Of 4)
G02037434
