Without VDC System

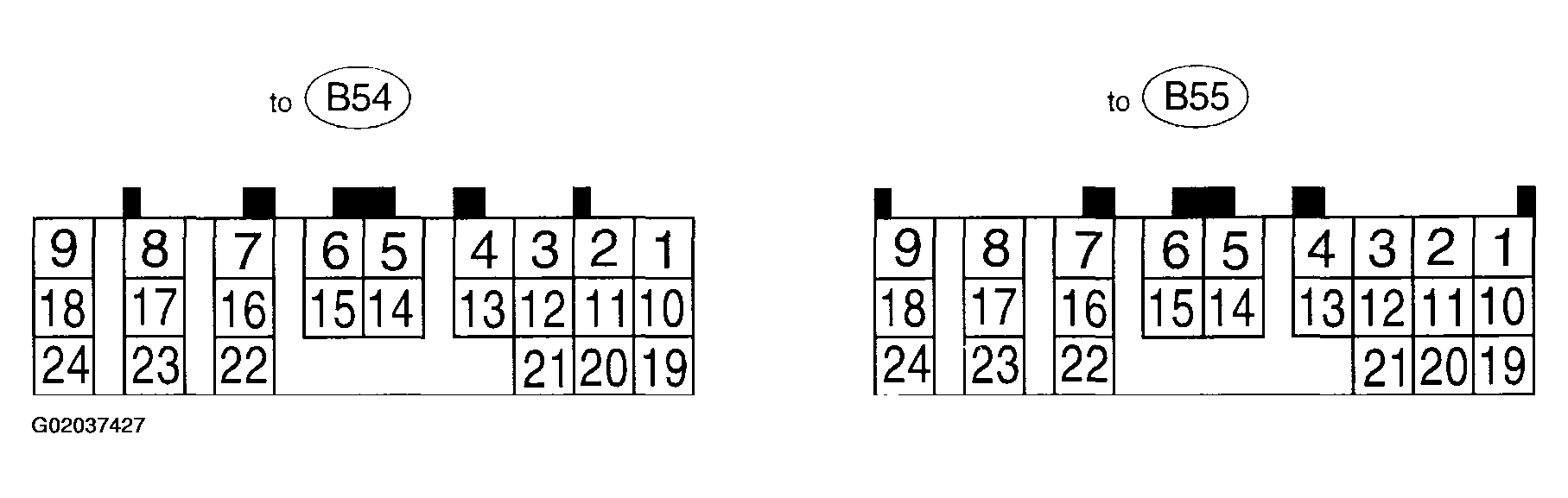

Fig 1: Transmission Control Module (TCM) - I/O Signal (1 Of 4)
G02037427

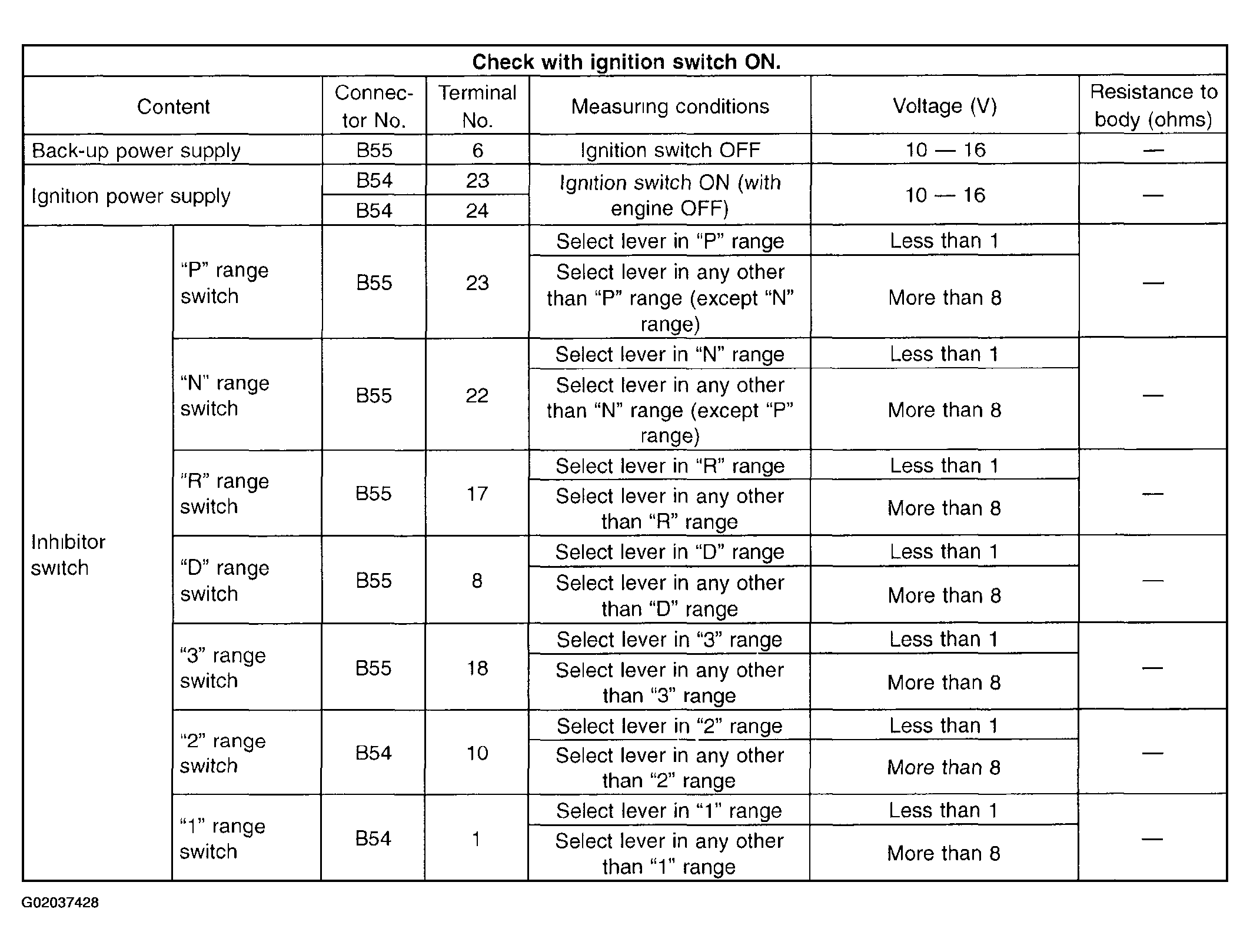

Fig 2: Transmission Control Module (TCM) - I/O Signal (2 Of 4)
G02037428

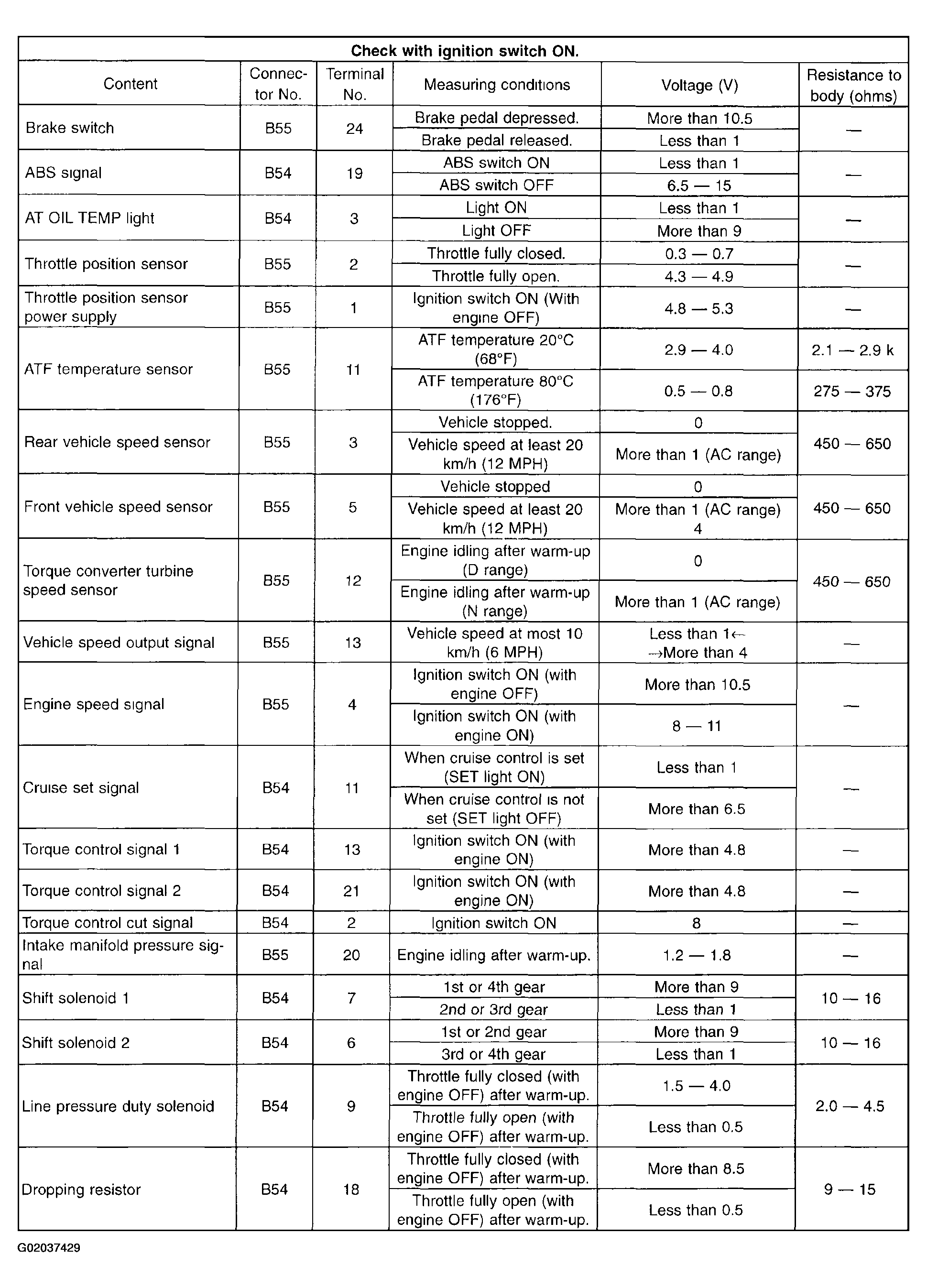

Fig 3: Transmission Control Module (TCM) - I/O Signal (3 Of 4)
G02037429

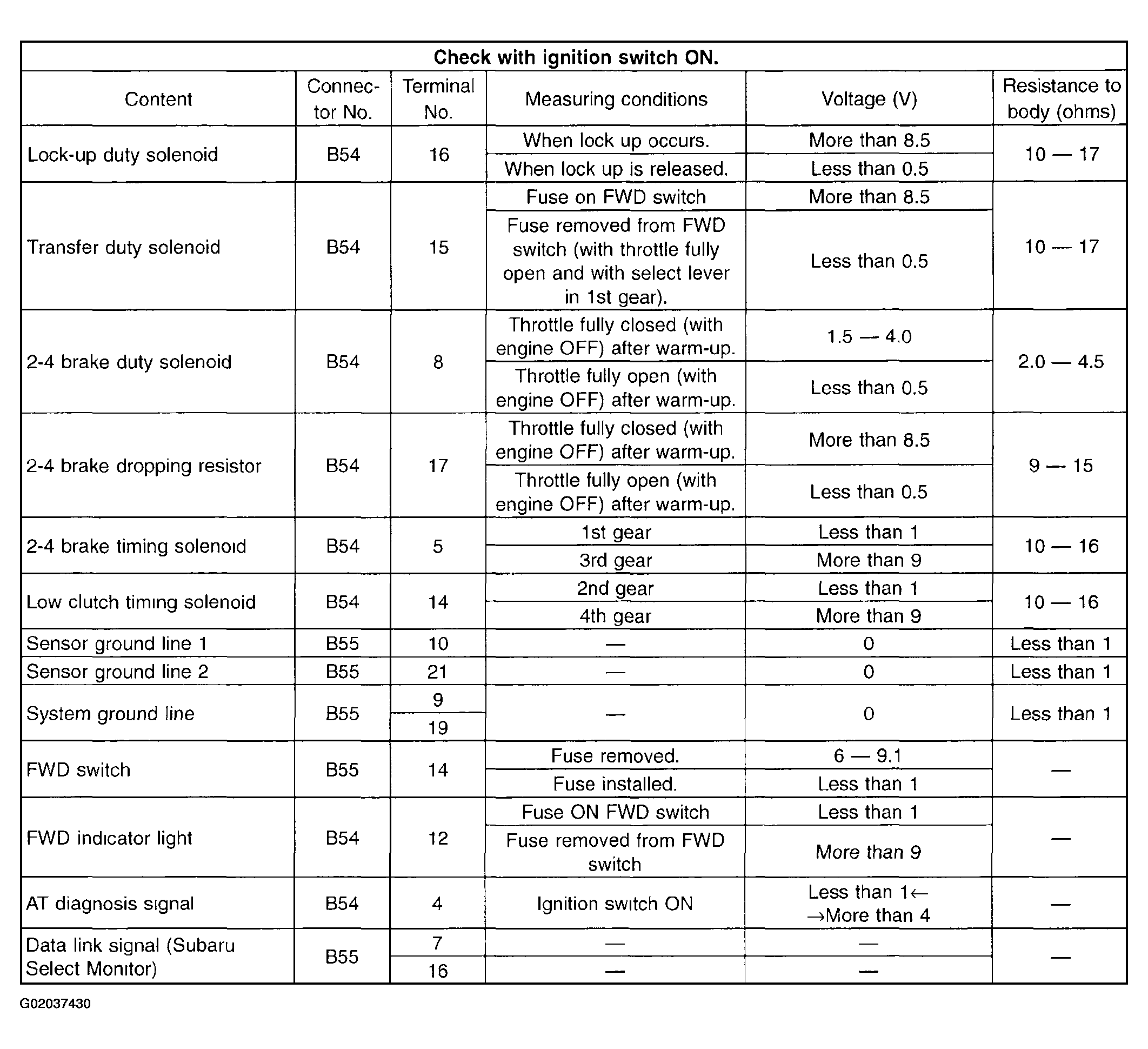

Fig 4: Transmission Control Module (TCM) - I/O Signal (4 Of 4)
G02037430
