Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> On-Vehicle Service & Testing >> Dropping Resistor >> Removal

Dropping Resistor: Removal

  1. Disconnect battery ground cable.

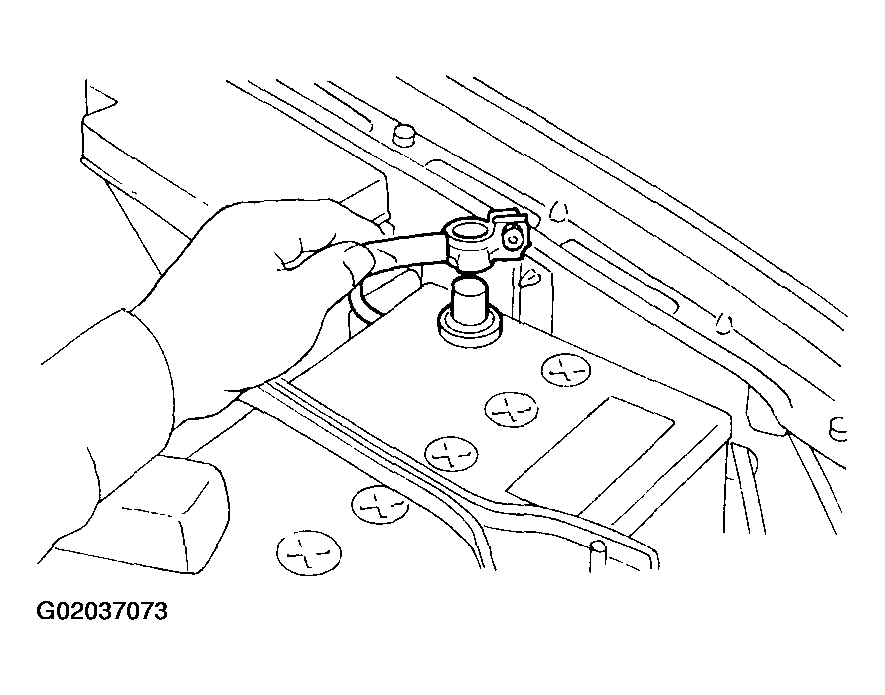

    Fig 1: Disconnecting Battery Ground Cable
    G02037073
  2. Remove air intake duct.
  3. Disconnect connector from dropping resistor.
  4. Remove dropping resistor.

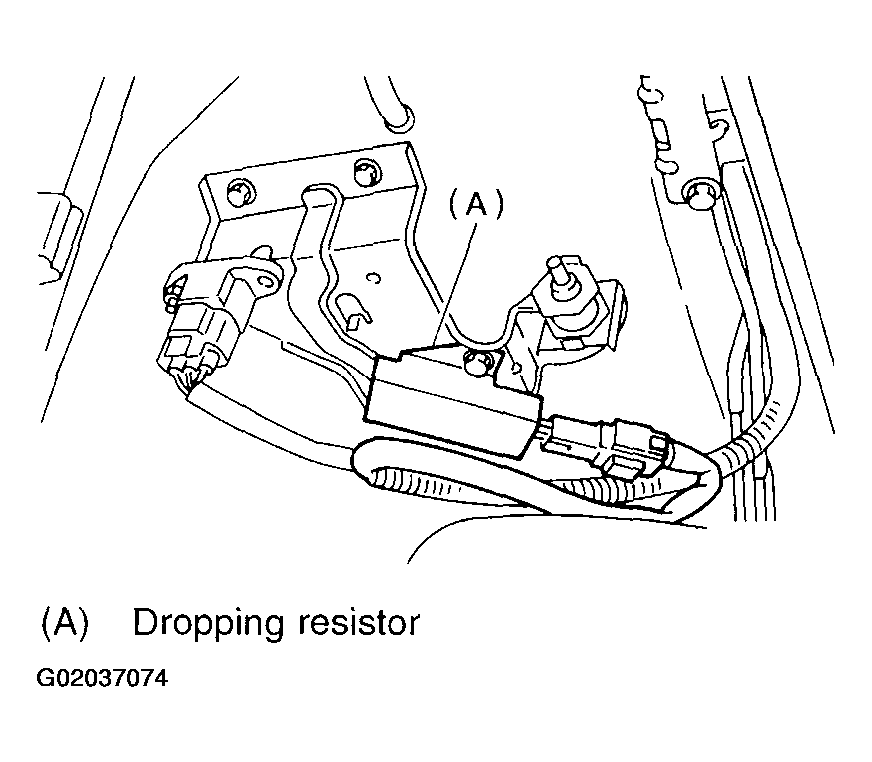

    Fig 2: Locating Dropping Resistor (2.5 L Model)
    G02037074

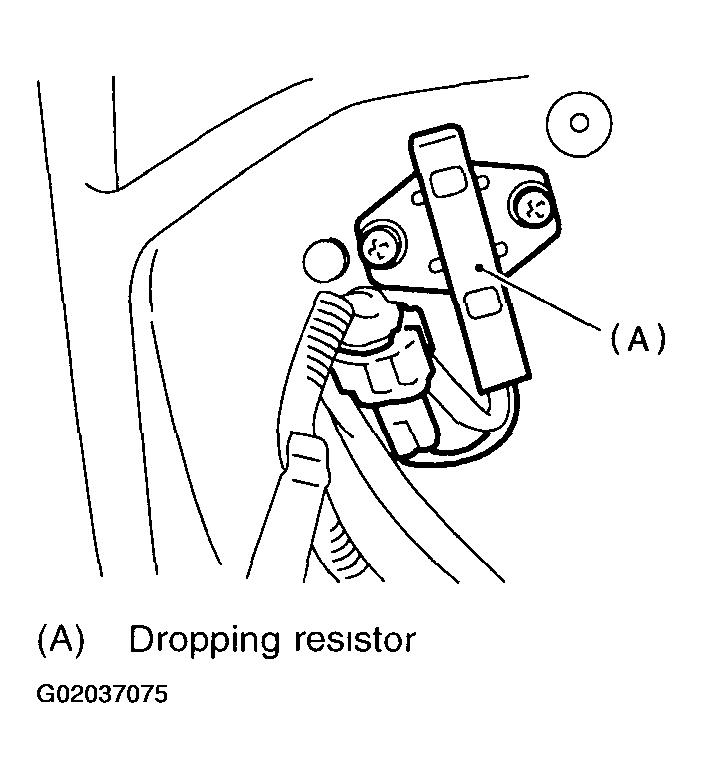

    Fig 3: Locating Dropping Resistor (3.0 L Model)
    G02037075
