lemon-mirror:
Home >> Subaru >> 2001 >> Outback Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> On-Vehicle Service & Testing >> General Description >> Specifications >> Planetary Gear And Plate

Planetary Gear And Plate

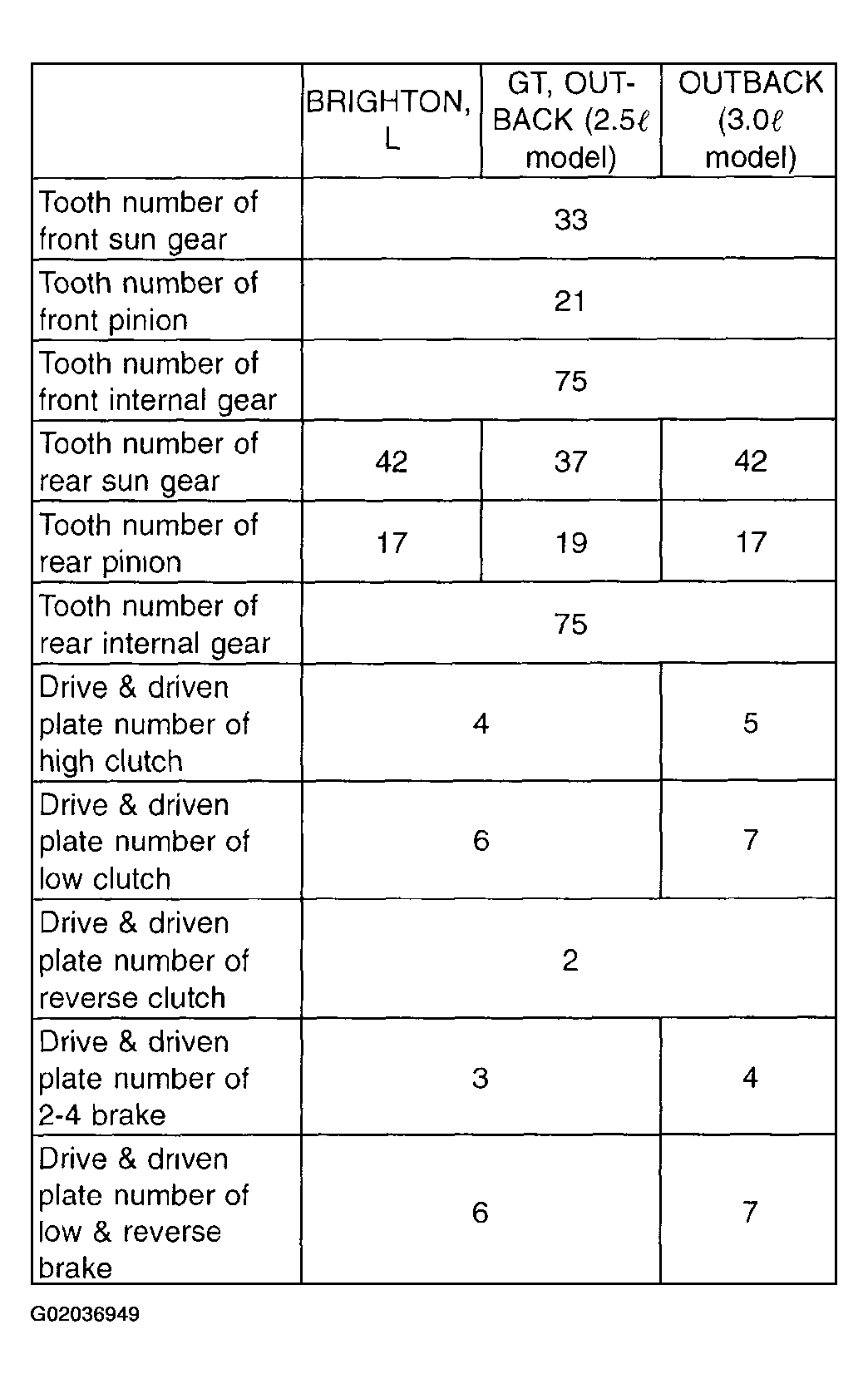

Fig 1: Planetary Gear And Plate Specifications
G02036949
