With VTD

  1. Using ST1, ST2, ST3 and a press, remove snap ring.

    ST1 398673600 COMPRESSOR

    ST2 498627100 SEAT

    ST3 398663600 PLIERS

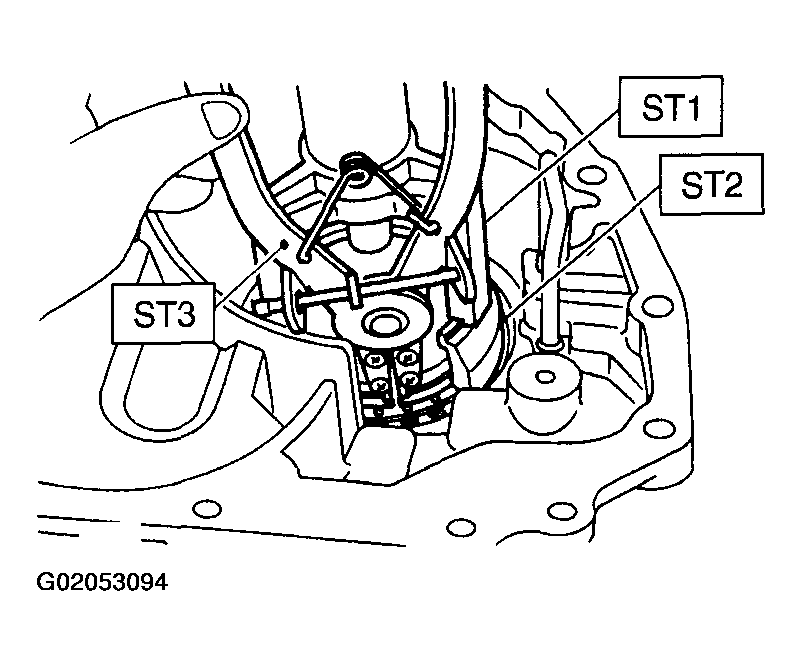

    Fig 1: Removing Snap Ring
    G02053094
  2. Remove test plug.

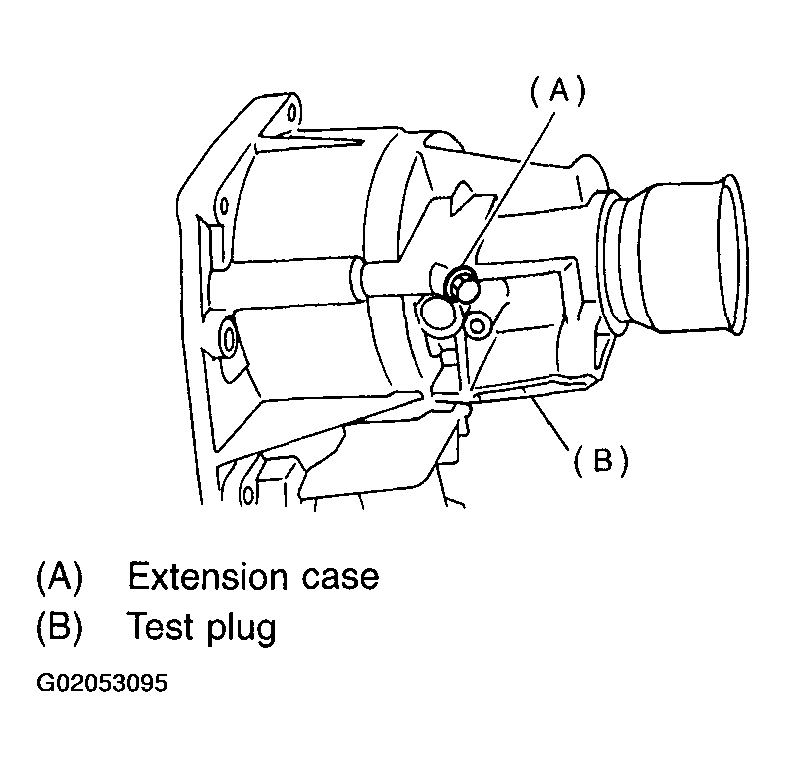

    Fig 2: Removing Test Plug
    G02053095
  3. Remove clutch piston by compressed air.

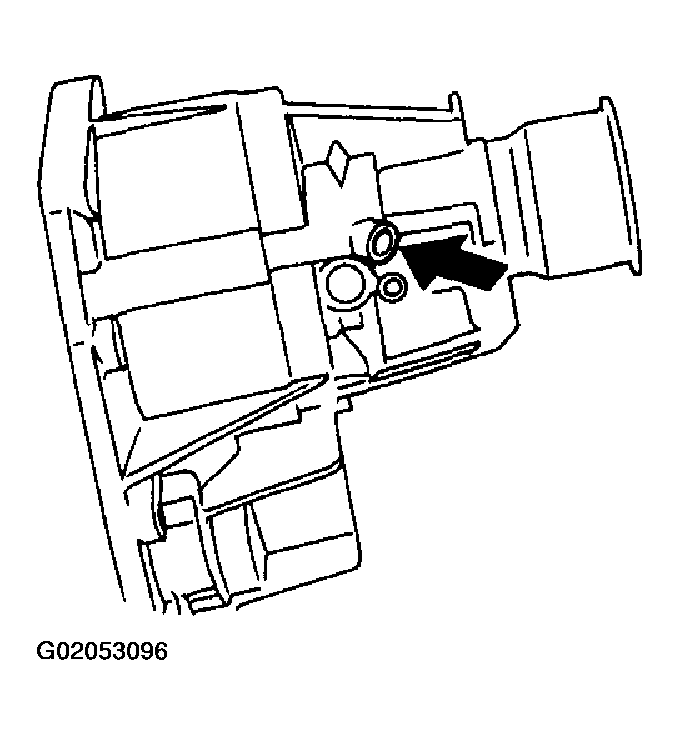

    Fig 3: Removing Clutch Piston
    G02053096
  4. Remove transfer clutch pipe.
    CAUTION: Be careful not to bend the pipe.

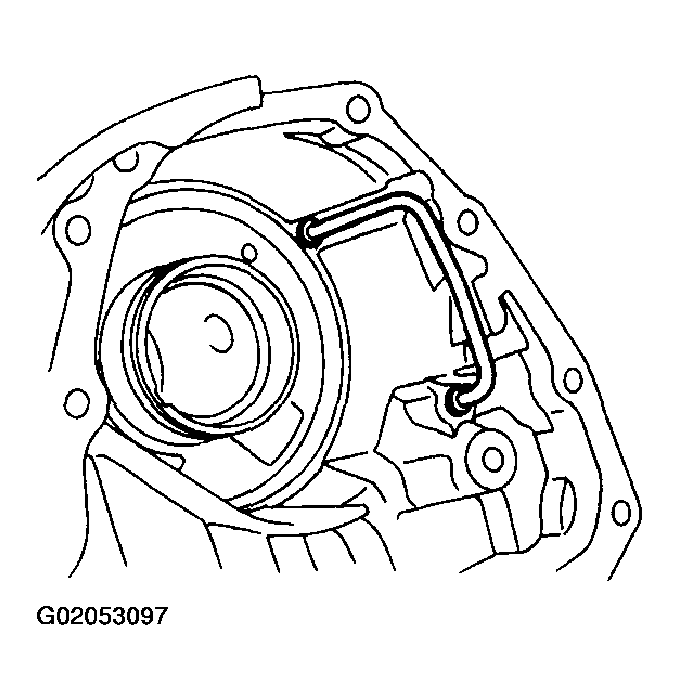

    Fig 4: Removing Transfer Clutch Pipe
    G02053097
  5. Remove the dust cover from the extension case.
  6. Remove the oil seal from the extension case.
