Control Valve And Harness Routing

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  7 (0.7, 5.1)
  2. T2:  8 (0.8, 5.8)

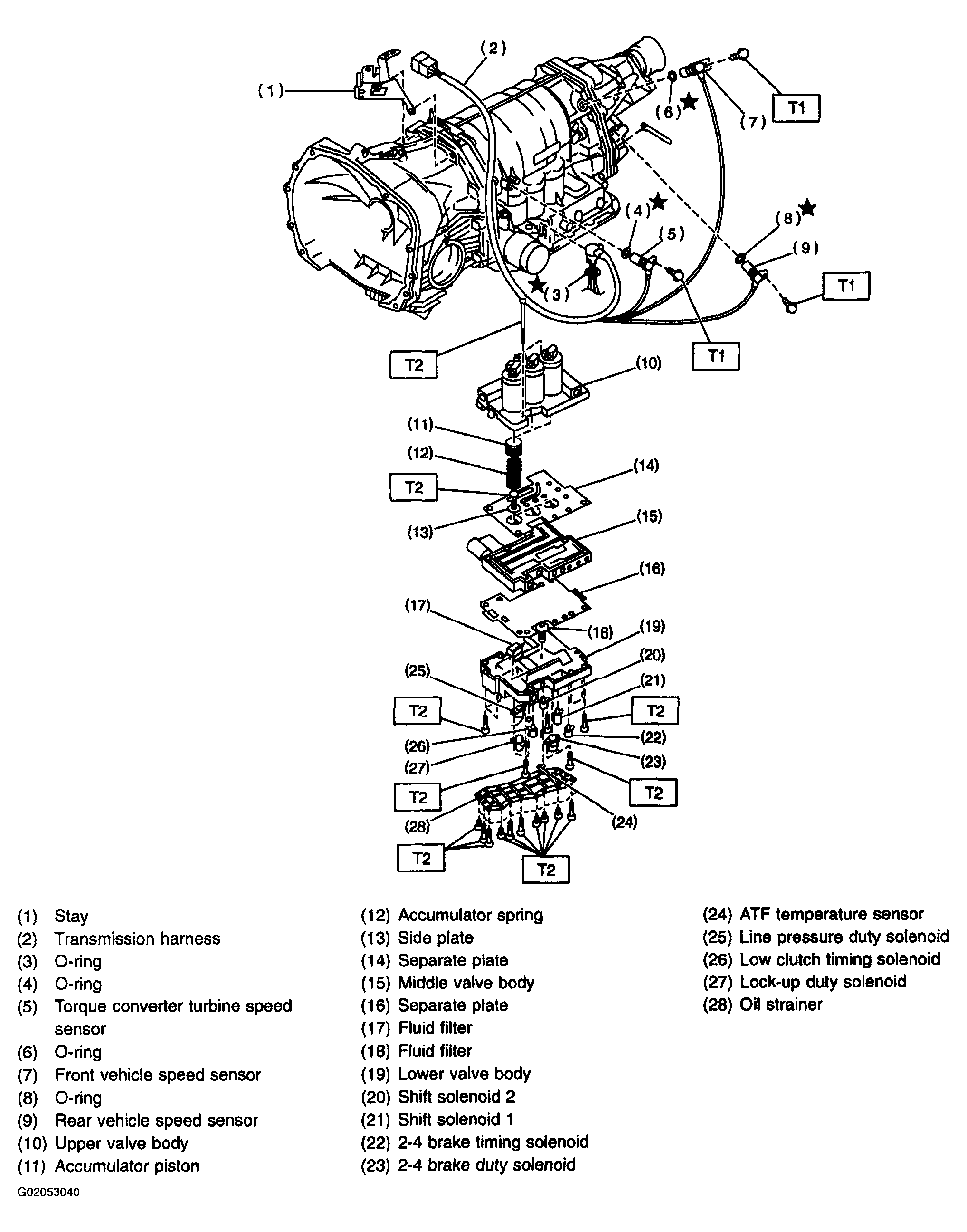

Fig 1: Exploded View Of Control Valve & Harness Routing
G02053040
