Oil Pump: Assembly

Install oil pump rotor assembly to oil pump housing.

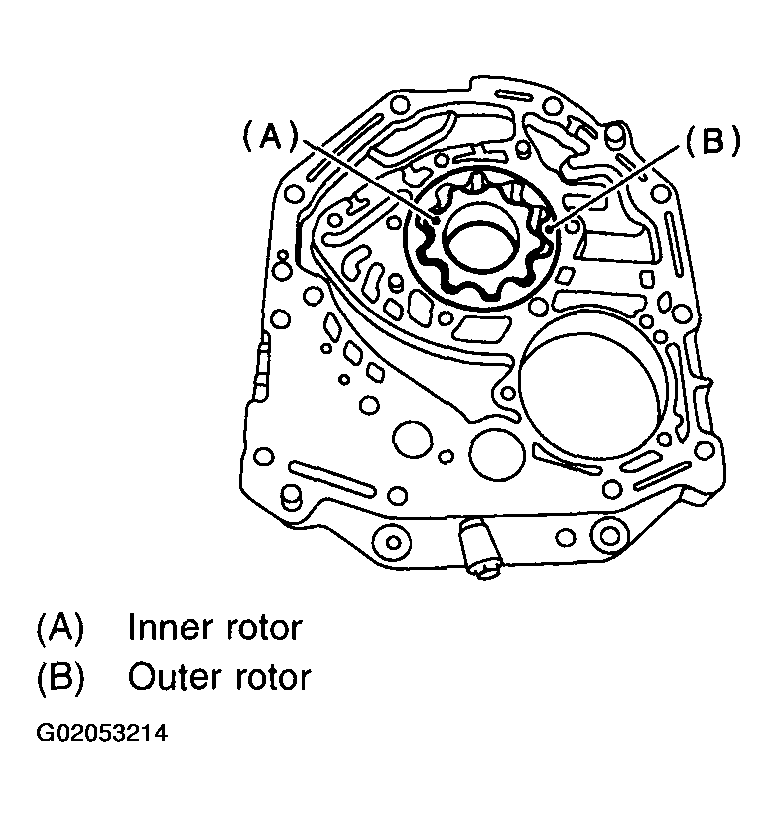

Fig 1: Installing Oil Pump Rotor Assembly
Install the oil pump cover.
Tightening torque:
1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)
NOTE:
- Align both pivots with the pivot holes of the cover, and install the cover being careful not to apply undue force to the pivots.
- After assembling, turn the oil pump shaft to check for smooth rotation of the rotor.

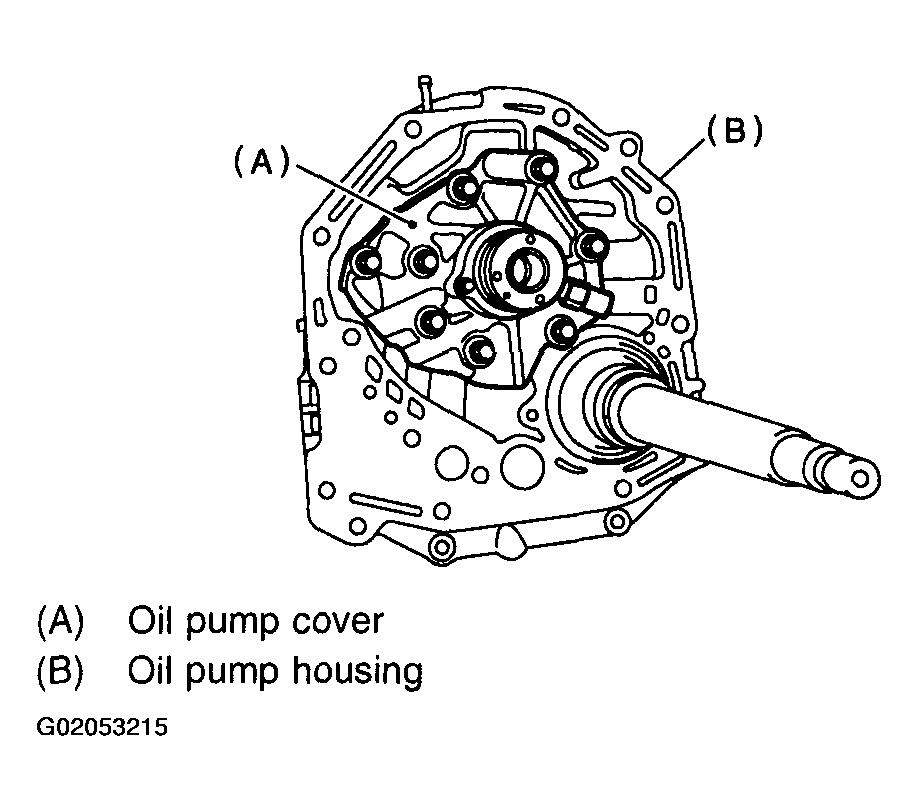

  Fig 2: Installing Oil Pump Cover
- Install the oil seal retainer and seal rings. After adjusting the drive pinion backlash and tooth contact.

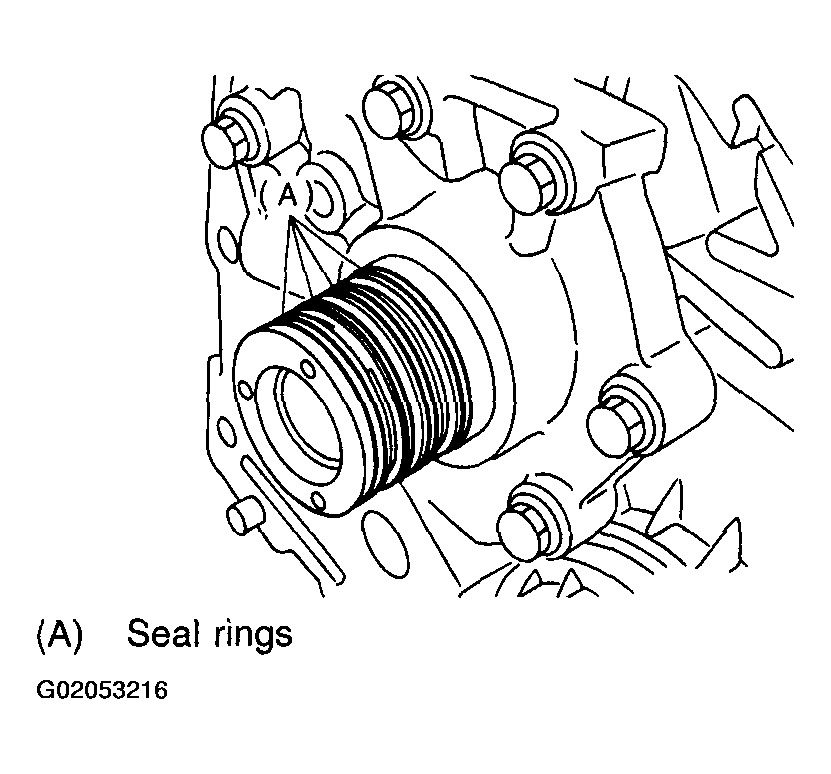

  Fig 3: Identifying Seal Rings
