Oil Pump: Disassembly

  1. Remove four seal rings.
    CAUTION: Be careful not to damage O-ring.
  2. Remove the oil pump cover.
    NOTE: Lightly tap the end of the stator shaft to remove the cover.

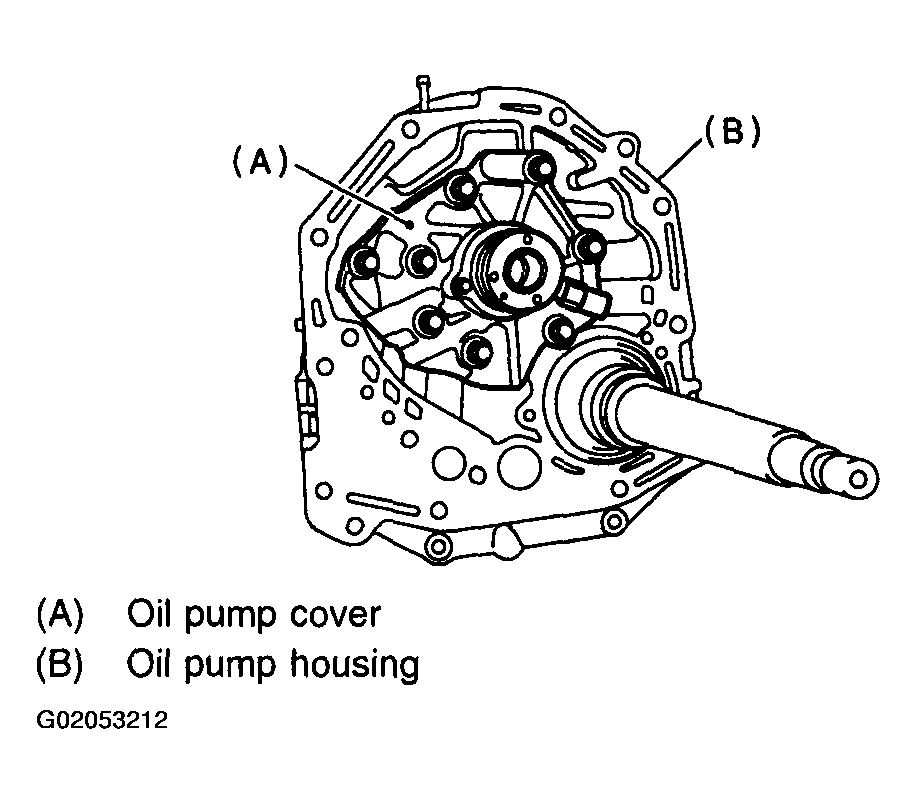

    Fig 1: Removing Oil Pump Cover
    G02053212
  3. Remove the inner and outer rotor.

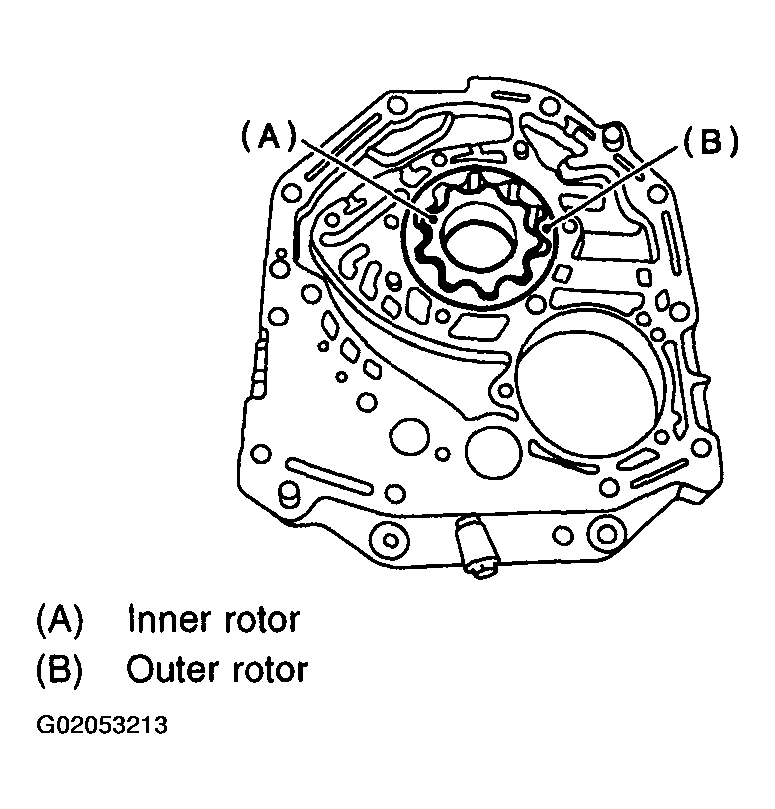

    Fig 2: Removing Inner And Outer Rotor
    G02053213
