Reduction Drive Gear: Installation

  1. Install the reduction drive gear assembly.
    NOTE: Insert it fully into position until the bearing shoulder bottoms.

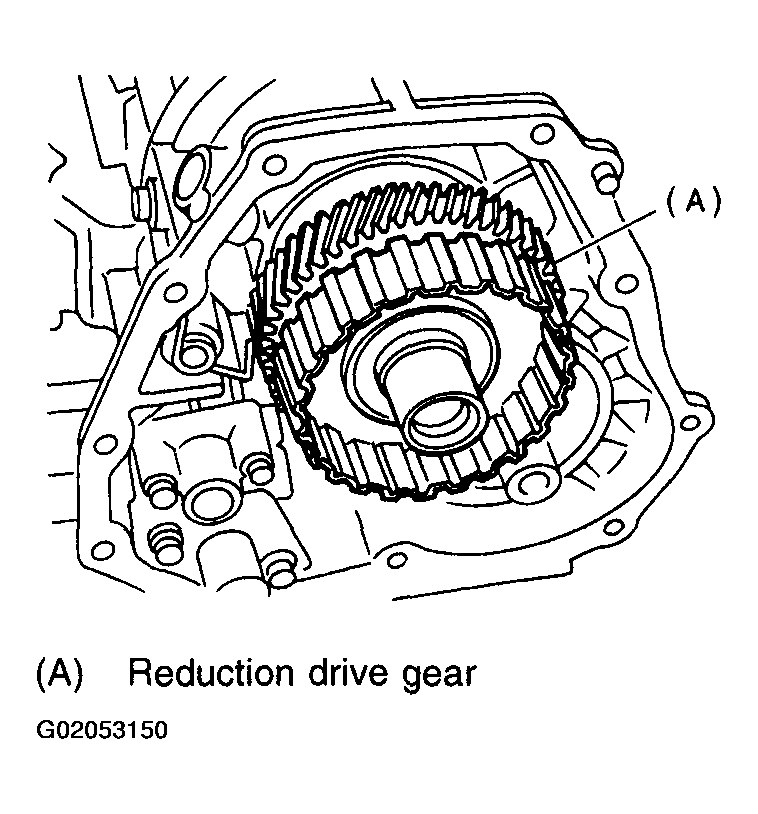

    Fig 1: Installing Reduction Drive Gear Assembly
    G02053150
  2. Without VTD: Install the reduction driven gear. See Reduction Driven Gear  .
  3. Combine the transmission case with the extension case, and install rear vehicle speed sensor. See INSTALLATION  .
