Reduction Driven Gear: Assembly

  1. Install snap rings to reduction driven gear. (2.5 L US model and 3.0 L model).
  2. Using a press, install ball bearing to reduction driven gear.

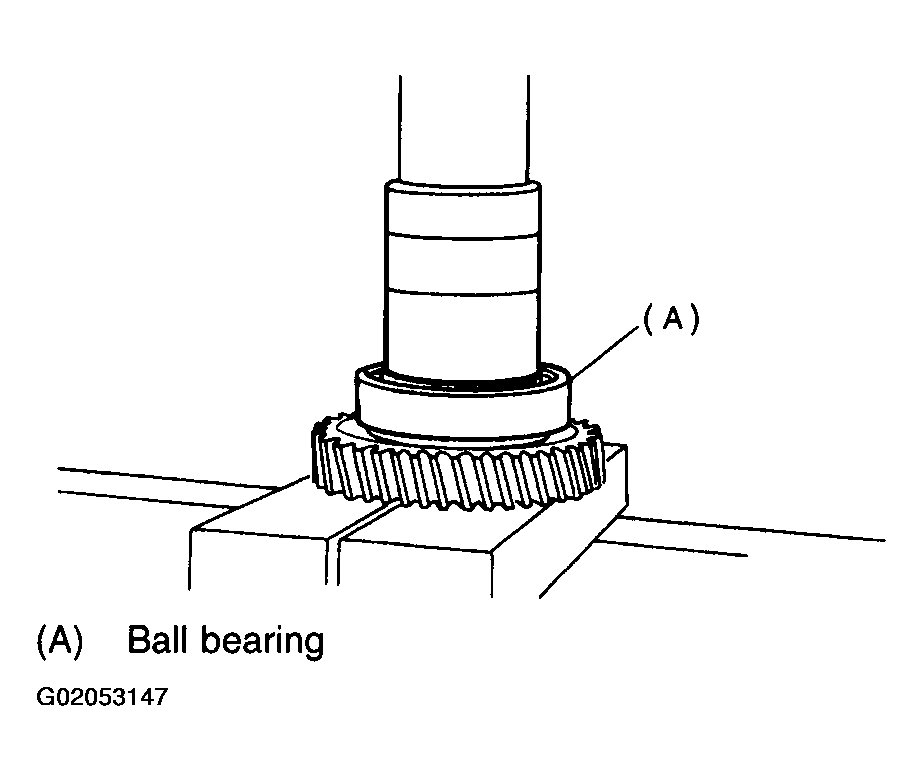

    Fig 1: Installing Ball Bearing
    G02053147
  3. Install snap ring to reduction driven gear.

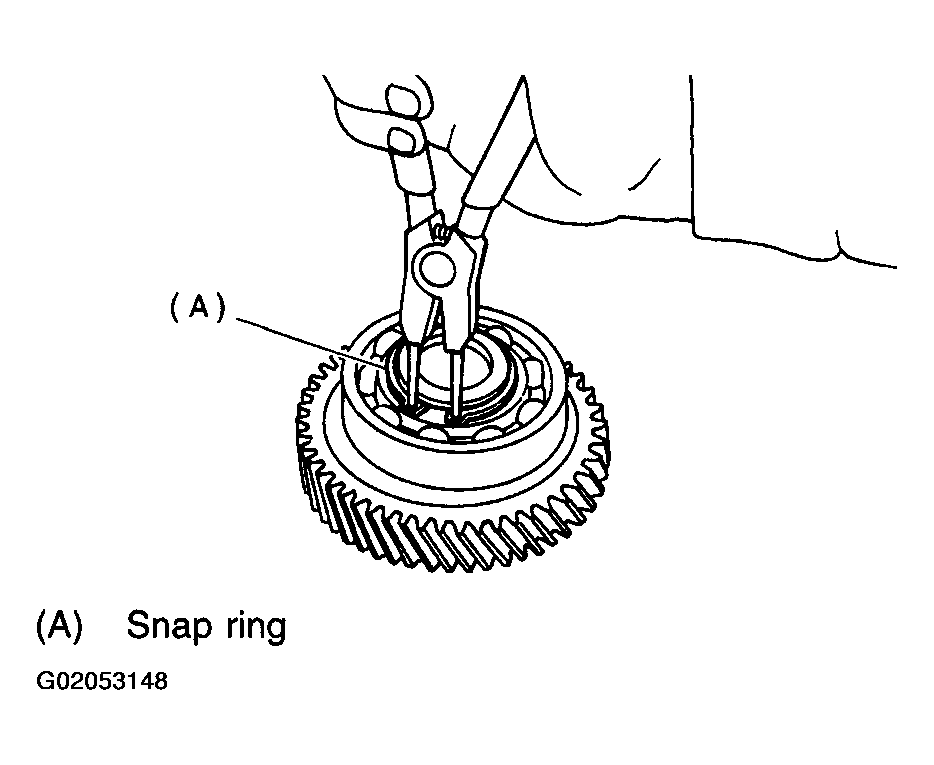

    Fig 2: Installing Snap Ring
    G02053148
