Clutch System: Flywheel: Inspection

CAUTION: Since this bearing is grease sealed and is of a non-lubrication type, do not wash with gasoline or any solvent.
  1. Damage of facing and ring gear If defective, replace flywheel.

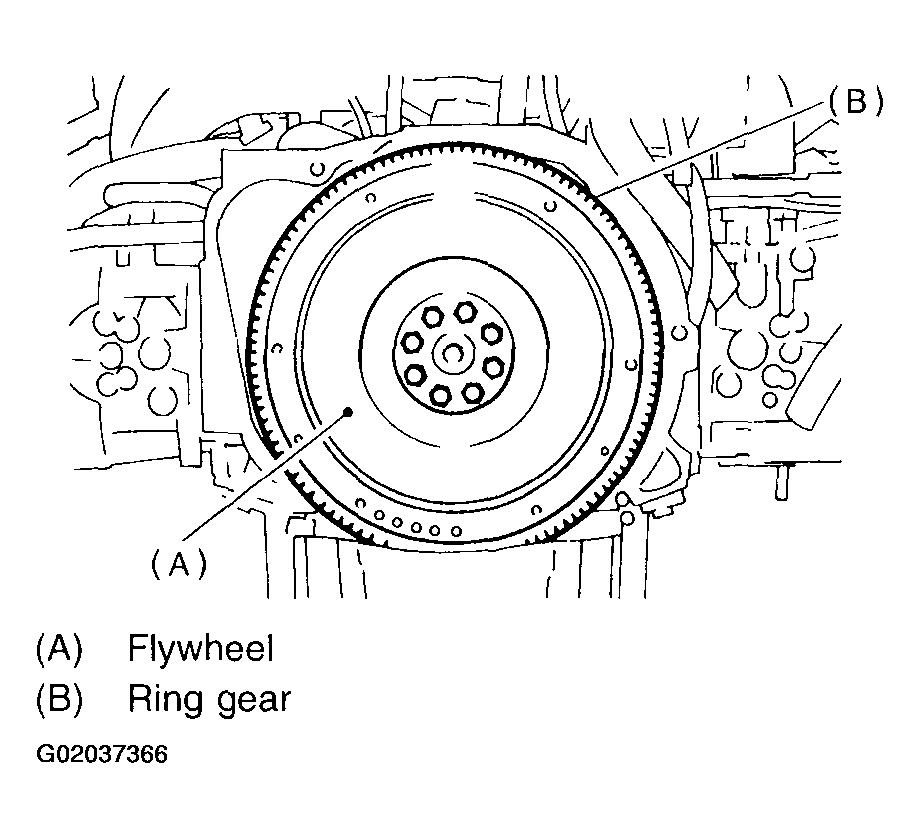

    Fig 1: Identifying Ring Gear & Flywheel
    G02037366
  2. Smoothness of rotation

    Rotate ball bearing applying pressure in thrust direction.

  3. If noise or excessive play is noted, replace flywheel.
